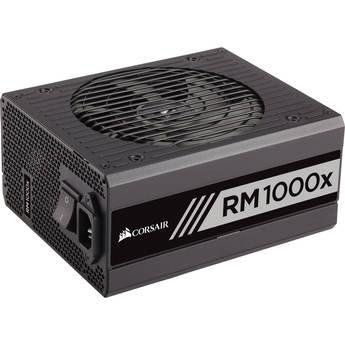

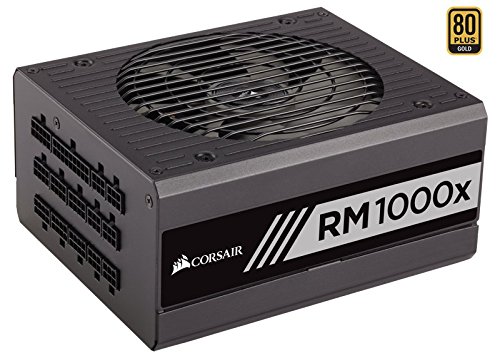

Corsair RM1000x 1000 Watt 80+ Gold Certified Fully-Modular ATX Power Supply

Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.

• 1000W Max Output
• 80 PLUS Gold Efficiency Certified
• Modular Cables for easier cable management

Weight

3.16

MTBF

100,000 hours

80 PLUS Certification Level

Gold

Power

1000 Watts

Zero RPM Fan Mode

Yes

Fan Bearing Technology

Rifled

Fan size

140mm

Corsair Link Support

Basic

Continuous Output Rated Temperature ( Degrees C)

40 Degrees C

Dimensions

150mm x 86mm x 180mm

Modular

Yes

Cable Type

Low-Profile, All Black

ATX Connector

1

EPS Connector

2

Floppy Connector

2

4-Pin Peripheral Connector

11

PCI-E Connector

8

SATA Connector

12

• ATX12V v2.4 and EPS 2.92
• Full Modular
• 80 PLUS GOLD Certified
• 100 - 240 V 47 - 63 Hz
• +3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3.0A

Manufacturer：CORSAIR
MPN：RM1000
Classification：RM Series
Type：ATX12V v2.4 and EPS 2.92
Maximum Power：1000W
PFC：Active
+12V Rails：Single
PCI-Express Connector：8 x 6+2-Pin
SLI：No
Haswell Support：Yes
Modular：Full Modular
Efficiency：92%
Energy-Efficient：80 PLUS GOLD Certified
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：6.5A - 13A
Output：+3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3.0A
MTBF：>100,000 Hours
Approvals：FCC, ICES, CE, C TUV US, RCM, TUV, CB, CCC, BSMI, GOST, ROHS, WEEE, ROHS, KC, TUV-S
Dimensions：3.39" x 5.91" x 7.09"
Weight：8.6

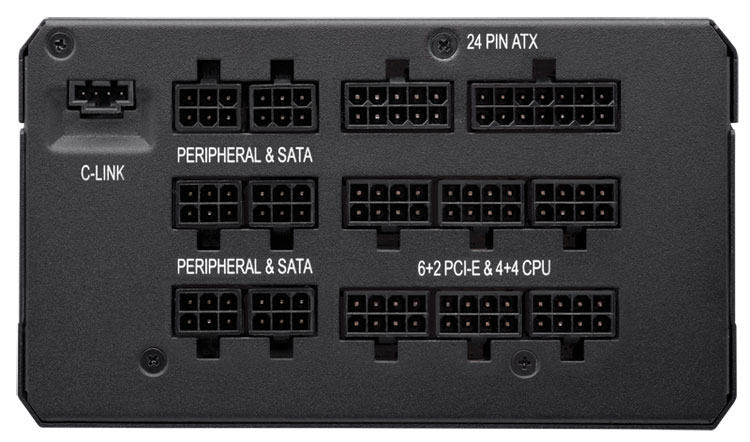

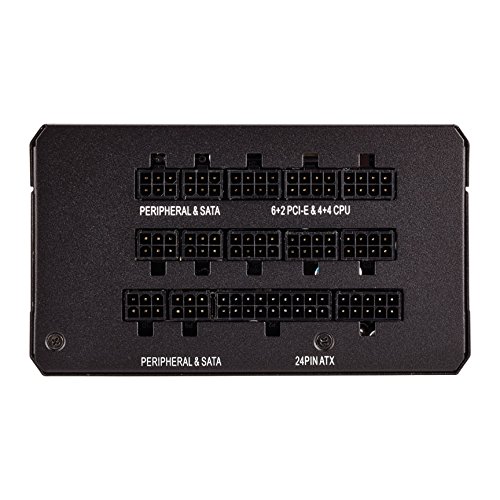

Connectors：1 x ATX Connector
2 x EPS Connector
2 x Floppy Connector
11 x 4-Pin Peripheral Connector
8 x PCI-E Connector
12 x SATA Connector
Features：The latest ATX12V v2.31 and EPS 2.92 standards and it is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.

4th generation Intel Core processor Ready (Intel Haswell and Z78 motherboards).

80 PLUS Gold certified, delivering over 92% energy efficiency at real world load conditions.

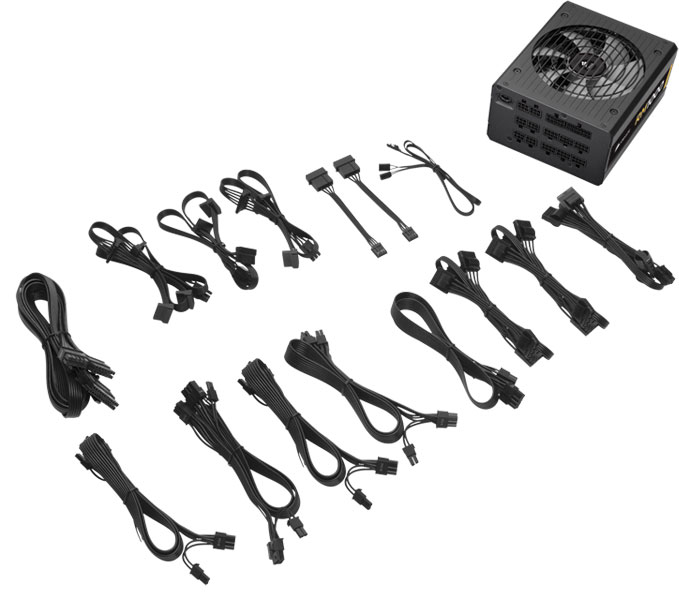

The completely modular cable system allows you to use only the cables you need.

Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis.

High-quality Japanese capacitors provide uncompromised performance and reliability.

Active Power Factor Correction (PFC) with PF value of 0.99.

Universal AC input from 100-240V.

Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.

Safety and Agency Approvals: FCC, ICES, CE, C TUV US, RCM, TUV, CB, CCC, BSMI, GOST, ROHS, WEEE, ROHS, KC, TUV-S.
