Athena Power AP-MPS3ATX40 400 Watt 20+4 pin PS3 ATX Power Supply

Athena Power Hercules Micro PS3 400W replacement for Dell, HP. Athena AP-MPS3ATX40 400 Watt ATX Power Supply Replacement for Dell Dimension 8300, Dell Precision 360, and Dell part numbers U2832, X2016, W2956, W2955. Athena AP-MPS3ATX40 400 Watt Power Supply Micro PS3 20+4 pin 400W PSU GenuineAP-MPS3ATX40 - AP-MPS3ATX40 PRODUCT OVERVIEW:The HERCULES series has improved on power. Upgrading its overall power to 400Watts this Micro PS3 PSU can be used with many Dell, HP, IBM, Compaq, and Gateway PCs for either power supply replacement or new system assembly. Supporting up to ATX V2.2 motherboards and below and with smart silent technology the HERCULES 400W truly has surpassed its predecessors.The Micro PS3 DesignMicro PS3 power supplies are known mostly as a replacement power supply but it has now evolved and can be used for mini-ATX cases, custom built computers, mini-servers and more. With the increase of wattage and efficiency the micro PS3 is a conventional PSU that can be used for multiple purposes.Designed for custom built PCs, mini-servers, and HTPCs.The HERCULES 400 Watt power supply will support the most current ATX motherboards V2.2 and lower. Its PCI-E 6-pin connector supports an additional VGA card. This PSU is ideal for custom-built PCs, mini-servers and HTPCs.Smart Auto Fan Speed ControllerWith its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels of the PSU it will adjust the fan speed accordingly, with this feature built in, worrying about the heat level of a PSU becomes almost non-existent.

• Micro PS3
• Output Power400 Watts
• Input Votage: 115/230 Volts AC
• Frequency: 47/63 Hz
• Temperature Range: Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C
• MTBF: 100,000 Hours on Maximum Load at +25°C
• Rise time: Less than 20 ms
• Hold-up Time: 17 ms Minimum at Nominal Input Voltage
• Output:
• Voltage: +5V: -5V: +12V1: +12V2: +3.3V: -12V: +5V-SB
• Current: 15A: 0.5A: 16A: 16A: 15A: 0.5A: 2.5A

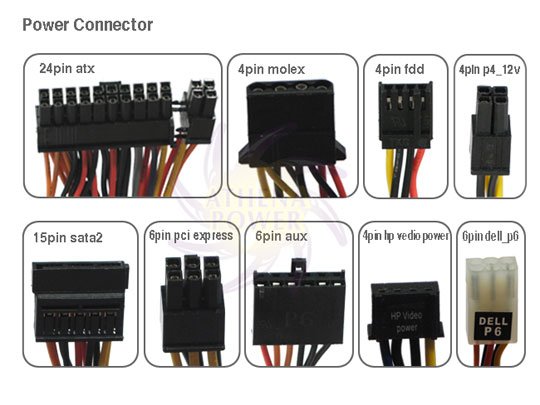

• Connectors:
• ATX Connector 24 (20+4) Pin x 1
• P4-12V 4 Pin x 1
• PCIE 6 6 Pin x 2
• SATA 15 Pin x 3
• Molex 4 Pin x 3
• Floppy 4 Pin x 1
• Aux 6 Pin x 1
• HP Video 4 Pin x 1
• DELL P6 6 Pin x 1
• Dimension: ( L x W x H) 101.6 x 148 x 83.82 mm/ 4 x 5.86 x 3.3 in
• Weight: 4.00lb

• Micro PS3 / ATX12V
• 20+4Pin
• 400W

Manufacturer：Athena Power
MPN：AP-MPS3ATX40
Type：Micro PS3 / ATX12V
Maximum Power：400W
PFC：No
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6-Pin
SLI：SLI Ready
CrossFire：CrossFire Ready
Over Voltage Protection：Yes
Input Voltage：115 / 230 V
Input Frequency Range：50/60 Hz
Input Current：14A @ 115V, 7A @ 230V
Output：+3.3V@12A, +5V@19A, +12V@20A, -12V@0.8A, +5VSB@2.5A
MTBF：100K hours at 25°C
Approvals：cUL,UL, TUV, CB, CE
Dimensions：5.75"(W) x 3.25"(H) x 4"(D)
Features：High efficiency
Low Ripple & Noise
Output over voltage protection
Short circuit protection on all outputs
Reset table power shut down
Complies with FCC part 15 subpart J Class B at 115VAC operation &
CISPR 22 Class B at 230 VAC operate
100% burn-in under high ambient temperature (50°C)
Vacuum-impregnated transformer
100% Hi-pot tested
HP Video Power Connector Ready

please check manufacturer website for cross reference
