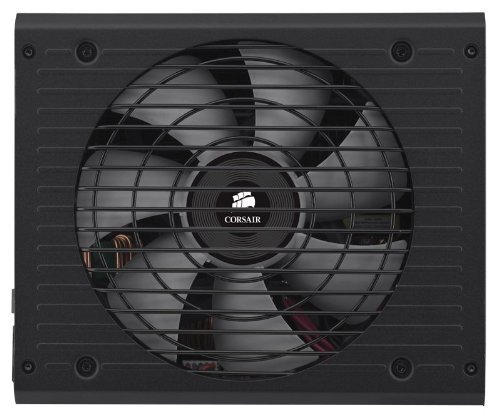

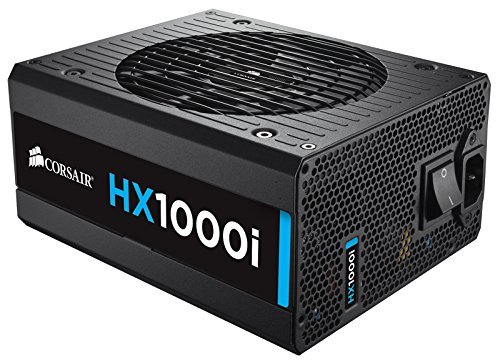

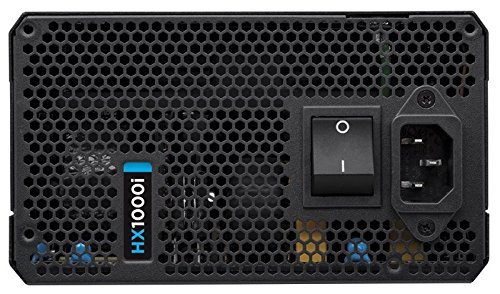

Corsair HX1000i 1000W 80+ Platinum Fully-Modular ATX Power Supply

Looking for a reliable, high-quality power supply for your next ATX build? The Corsair HX1000i 1000 Watt ATX PSU is 80Plus Platinum certified, delivering superior energy efficiency to ensure your system gets the power it needs delivered, no more and no less. The unit comes with a Zero RPM Fan Mode to allow quiet operation at low to medium loads as the fans don't spin at all. The fully modular cables allows easy and seamless installation for great looking builds with great airflow.

Features

• High power
• Superior efficiency
• 80Plus Platinum
• Quiet, efficient operation
• Corsair Link Digital for advanced monitoring and control
• Easy Installation

Product Specifications

Power

1000 Watts

80 Plus

Platinum

Fanless mode

Yes

Fan bearing technology

Fluid Dynamic Bearing

Fan size

140mm

C-Link Digital

Yes

Continuous output rated temperature ( C)

50 C

Modular

Fully

Sleeved cables

Low-Profile, All Black

Weight

3.592kg

Warranty

Seven years

• ATX12V v2.4 / EPS12V 2.92
• Full Modular
• 80 PLUS PLATINUM Certified
• 100 - 240 V 47 - 63 Hz

Manufacturer：CORSAIR
MPN：HX1000i (CP-9020074-NA)
Classification：HXi Series
Type：ATX12V v2.4 / EPS12V 2.92
Maximum Power：1000W
Fans：1 x 140mm thermally controlled fluid dynamic bearing fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single or Multi
PCI-Express Connector：8 x 6+2-Pin
SLI：SLI Ready
Haswell Support：Yes
CrossFire：CrossFire Ready
Modular：Full Modular
Efficiency：92%
Energy-Efficient：80 PLUS PLATINUM Certified
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：13 - 6.5A
Output：Single +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3A

Multiple +12V Rail Mode:
+3.3V@25A,+5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, +12V6@40A, +12V7@40A, +12V8@40A, -12V0.8A, +5VSB@3A
Approvals：FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH.
Dimensions：3.39" x 5.91" x 7.09"
Weight：7.92 lbs.

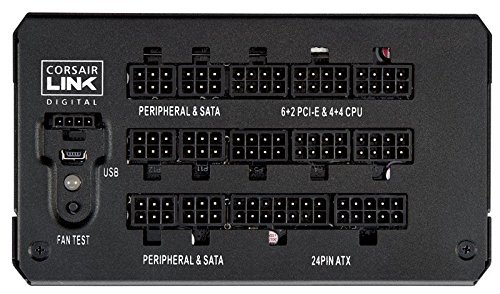

Connectors：1 x ATX Connector
2 x EPS Connector
2 x Floppy Connector
12 x 4-Pin Peripheral Connector
8 x PCIe Connector
12 x SATA Connector
Features：Corsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail / single rail mode.

80 PLUS Platinum efficiency, delivering 92% energy efficiency at real world load conditions.

ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.

140mm thermally controlled fluid dynamic bearing fan spins up as needed.

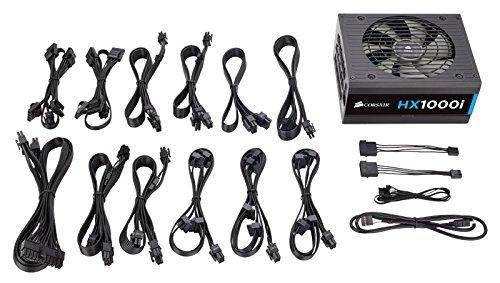

Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis.

Engineered to meet maximum power output at a server-grade 50C temperature rating.

Fan self-test switch to determine fan functionality even before installation.

The latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems.

4th generation Intel Core processor Ready (Intel Haswell and Z87 motherboards).

Over-voltage protection, under-voltage protection, and short circuit protection, over power protection, over temperature protection provide maximum safety to your critical system components.

Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH.
