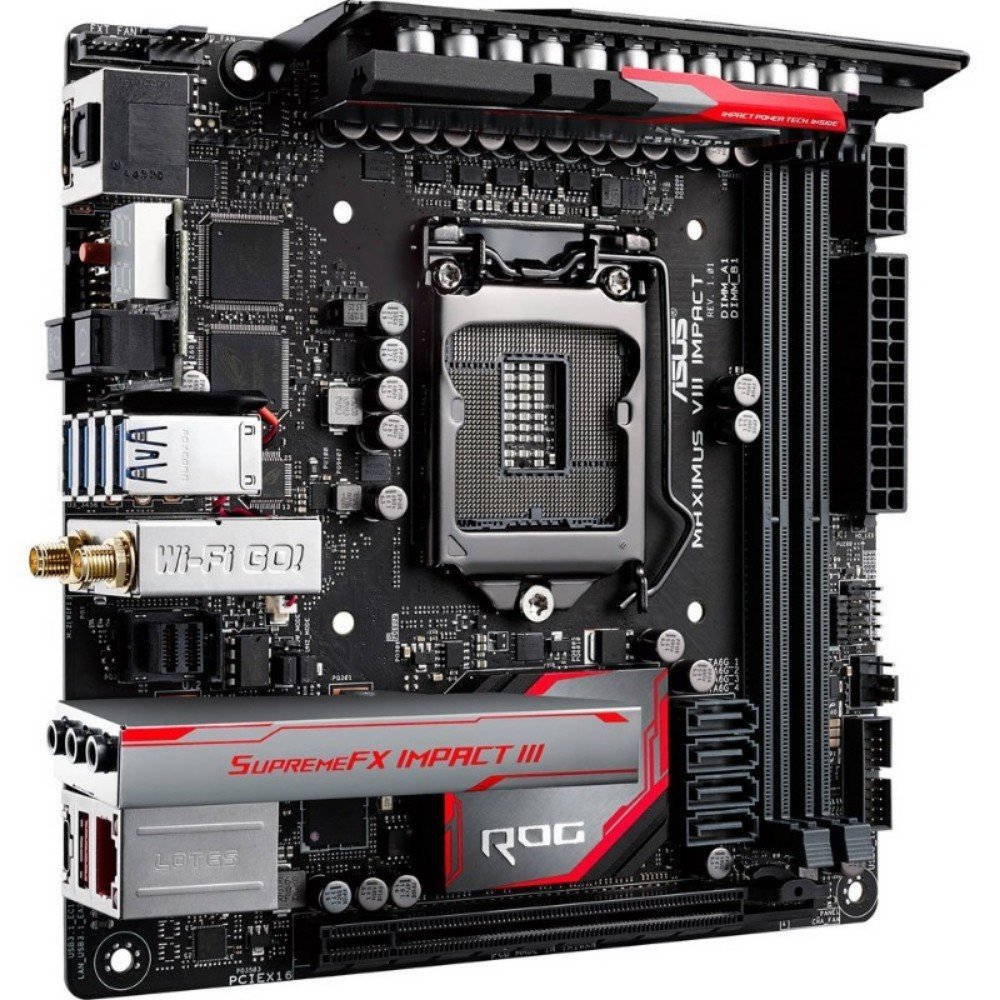

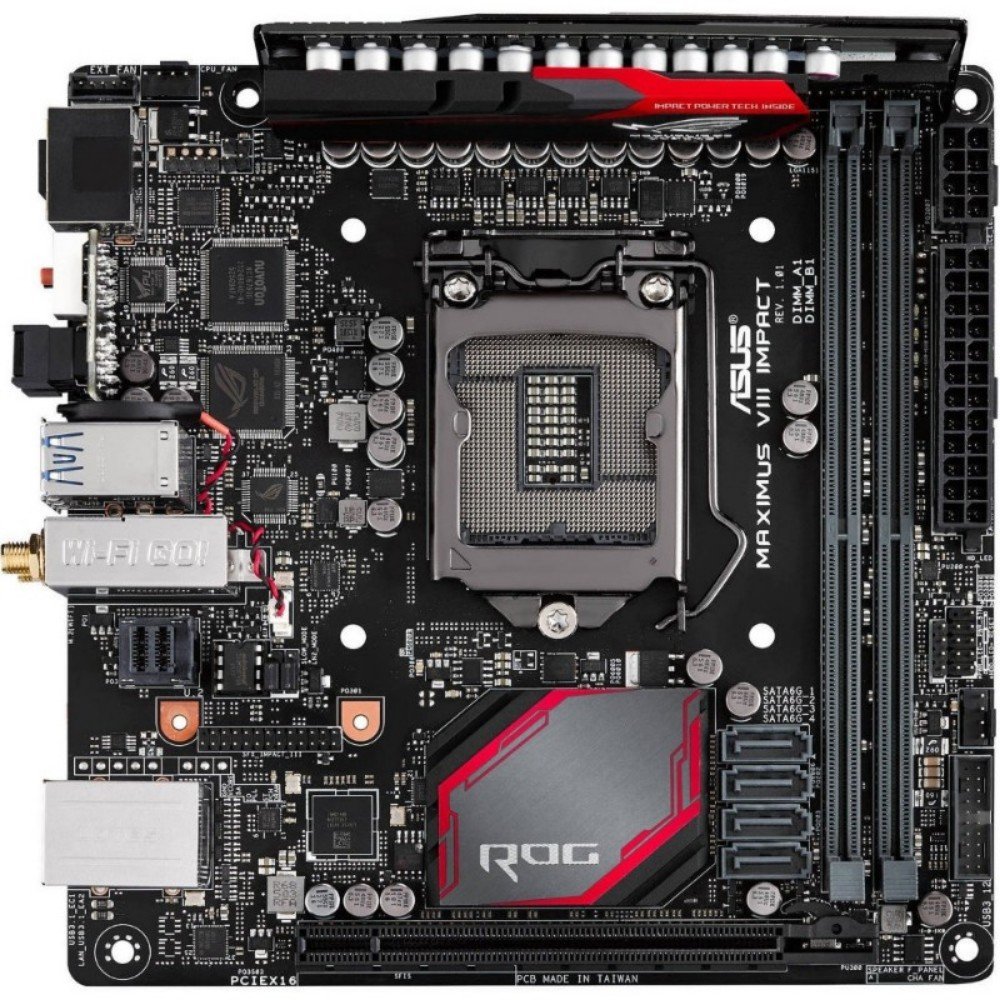

ASUS MAXIMUS VIII IMPACT Mini ITX LGA1151 Motherboard

"Performing beyond its form factor, the miniATX MAXIMUS VIII IMPACT pulls no punches and is the perfect foundation for your enthusiast-grade Z170 gaming desktop, complete with new-to-ROG 5-Way Optimization and fully reinvented SupremeFX 2015 for an unprecedented audio experience in an integrated solution."

The Asus MAXIMUS VIII IMPACT motherboard supports LGA1151 processors and will fit in a standard Mini ITX case. This board is powered by the Intel Z170 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3300 / 3333 / 3400 / 3466 / 3600 / 3800 / 4000. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / Red design.

• Intel Z170
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 2133

Manufacturer：ASUS
Classification：ROG
MPN：MAXIMUS VIII IMPACT
CPU Socket Type：LGA 1151
Processor Type：Intel Socket 1151 for 7th/6th Generation Core i7/i5/i3/ Pentium/Celeron Processors
Supported CPU Technologies：Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs
Chipset：Intel Z170
Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics support - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz- Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider
Number of Memory Slots：2×288pin
Memory Standard：DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3500(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCIe 3.0/2.0 x16 (x16 mode, black)
SATA 6Gb/s：4 x SATA 6Gb/s port(s), gray
M.2：1 x U.2 port, black
SATA RAID：0/1/5/10
Audio Chipset：ROG SupremeFX Impact III High Definition Audio CODEC
Audio Channels：5.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMO
Bluetooth：Bluetooth V4.1
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：1 x USB 3.1 Gen 2 (black) Type-C1 x USB 3.1 Gen 2 (red) Type-A4 x USB 3.1 Gen 1 (blue)
S/PDIF Out：1 x Optical
Audio Ports：3 Ports
Antenna Connectors：2 x Wi-Fi antenna port(s)
Onboard USB：1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
Other Connectors：1 x CPU Fan connector(s) (4-pin)1 x Chassis Fan connector(s) (4-pin)1 x Front panel audio connector(s) (AAFP)*21 x ProbeIt Measurement Points1 x Thermal sensor connector(s)1 x 5-pin EXT_FAN (Extension Fan) connector1 x LN2 Mode jumper(s)1 x Slow Mode jumper(s)1 x SupremeFX Impact III connector1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module1 x System panel connector*2 AAFP connector is built-in on the SupremeFX Impact III card
Form Factor：Mini ITX
Dimensions (W x L)：6.7" x 6.7"
Power Pin：1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)
Features：ROG Exclusive Features:
Slow Mode
ROG RAMCache
Overwolf
SupremeFX Impact III
Start Button
Reset Button
LN2 Mode
Impact Power III:
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
- IR3553 PowIRStage MOSFETs
Mem TweakIt
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power OnUEFI BIOS features:
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker

Special Features:
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo AppASUS Wi-Fi GO!

ASUS Exclusive Features:
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC CleanerRemote Entertainment
- Media Streamer
- HyStreamASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push NoticeASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
Operating System Support:
Windows 10 64-bit, Windows 8.1 64-bit, Windows 7 32-bit/64-bit

BIOS:1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability:WfM2.0, DMI3.0, WOL by PME, PXE

Support Disc:
Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
Keybot II
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
