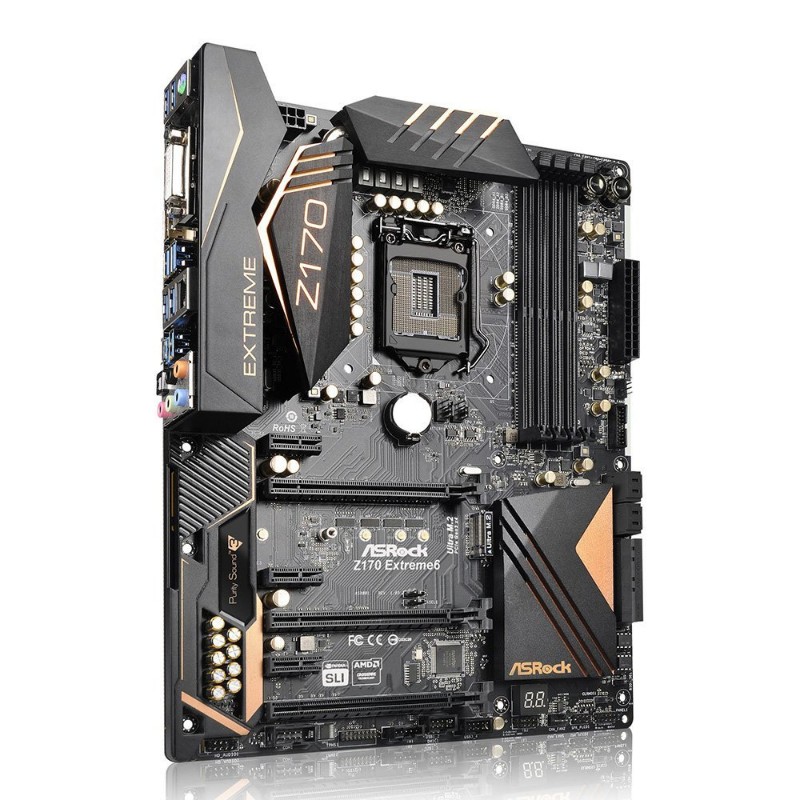

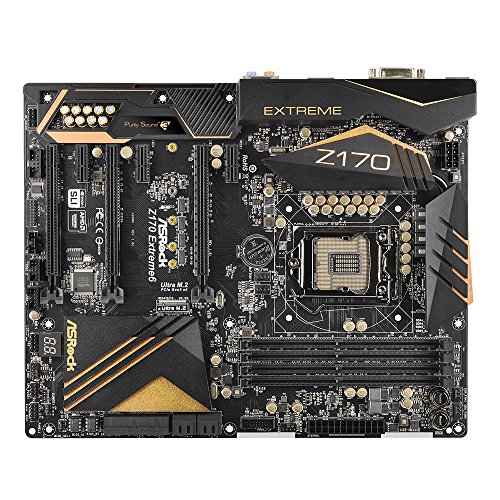

ASRock Z170 Extreme6 LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

With everything you can want and more, the ASRock Z170 Extreme 6 Motherboard challenges you to use it to its full potential. The board is compatible with 6th generation Intel Core processors and supports DDR4 speeds of up to 3866 MHz. With an incredible amount of ports and expansion options, you won't find yourself needing adapters. It includes 2 connections for SATA Express, 8 SATA 3 ports, 1 Ultra M.2, 2 USB 3.1, 8 USB 3.0, and more. Made with Super Alloy components, this board aims to be stable and reliable.

The ASRock Z170 Extreme6 motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel Z170 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2800 / 2933 / 3200 / 3600 / 3866. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / Gold design.

• Intel Z170
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133

Manufacturer：ASRock
MPN：Z170 Extreme6
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：Turbo Boost Technology 2.0
Chipset：Intel Z170
Onboard Video Chipset：* Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530
- Pixel Shader 5.0, DirectX 12
- Max. shared memory 1792MB
- Three graphics output options: DVI-D, HDMI and DisplayPort 1.2
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))
PCI Express x1：3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors by Intel Z170, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
SATA Express：2 x SATA Express 10Gb/s Connectors*
* Support to be announced
* M2_1, SATA3_0, SATA3_1 and SATA_EXP0 share lanes. If either one of them is in use, the others will be disabled.
M.2：1 x Ultra M.2 Socket, supports M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)
* Supports U.2 Kit
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC1150
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort：1 x DisplayPort
USB 3.1：1 x USB 3.1 Type-A Port (10Gb/s) (ASMedia ASM1142)
1 x USB 3.1 Type-C Port (10Gb/s) (ASMedia ASM1142)
USB 3.0：6 x USB 3.0 Ports (Intel Z170)
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.0 Header (Supports 2 USB 3.0 ports)
Other Connectors：1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
Power Pin：24 Pin
Features：Unique Feature
USB 3.1
- USB 3.1 Type-A Port (10Gb/s)
- USB 3.1 Type-C Port (10Gb/s)
Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Combo Caps (Nichicon 12K Platinum Caps)
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
Ultra M.2 (PCIe Gen3 x4 & SATA3)
Full Spike Protection
Live Update & APP Shop

BIOS Feature
- 2 x 128MB AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software
- A-Tuning
- Disk Health Report
- USB Key
- APP Charger
- XFast LAN
- XFast RAM
- Fast Boot (Fast Boot, Restart to UEFI, Instant Boot)
* These utilities can be downloaded from Live Update & APP Shop.

UEFI
- Full HD UEFI
- My Favorites in UEFI
- Instant Flash
- Internet Flash
- Crashless BIOS
- OMG (Online Management Guard)
- UEFI System Browser
- UEFI Tech Service
- Dehumidifier
- Easy RAID Installer
- Easy Driver Installer

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
