Rosewill RNX-N180UBE Wireless N USB Adapter w/ 5 dBi External Antenna

This Rosewill USB 2.0 IEEE 802.11b/g/n 300Mbps 5dBi Wireless Antenna will provide your system with highspeed wireless signal. Using a 5dBi antenna to pick up signal from your router, you'll get strong signal and download speeds of up to 300Mbps. The easiest way to upgrade your system into wireless N network, the Rosewill RNX-N180UBE connects your PC/NB to a wireless network in minutes using a high speed USB2.0 interface. MIMO technology, with one transmitting antenna and two receiving antennas, enables a high throughput of max 300Mbps for download and 150Mbps for upload. An array of high level security options guarantees maximized network protection, bringing you great peace of mind. Compliant with IEEE 802.11n and backward compatible with 802.11g/b, the Rosewill RNX-N180UBE adapter smoothly integrates into any existing wireless network. MIMO technology, with one transmitting antenna and two receive antennas, provides a maximum 300Mbps download rate and 150Mbps upload rate.

• 5dBi Antenna
• IEEE 802.11b/g/n Up to 300Mbps wireless speeds
• USB 2.0 Compatible

Model

RNX-N180UBE

Standards

IEEE 802.11b/g, IEEE 802.11n Draft 2.0

Wireless Data Rates

Up to 300Mbps download rate and 150Mbps upload rate

Security

64/128-bit WEP (Hex & ASCII), WPA/WPA2, WPA(TKIP with IEEE 802.1x)/WPA2(AES with IEEE 802.1x)

WPA/WPA2

WPA2

Interface

USB 2.0

Frequency Band

2.412GHz - 2.4835GHz

Channels

11 CH (US, Canada)

LEDs

Link/Activity

Transmitted Power

802.11b: up to 20 +/- 1 dBm

802.11g: up to 17 +/- 1 dBm

802.11n: up to 16 +/- 1 dBm

Antenna

5dBi External Detachable Antenna

Dimensions

6.5" x 5.5" x 1.3"

Weight

0.5 lbs.

Temperature

0 Degrees C - 60 Degrees C (32 Degrees F - 140 Degrees F)

Humidity

10% - 90%, Non-Condensing

Operating system supported

Windows 2000, XP/VISTA32 and 64 bit, Win7/Win8 32 and 64 bit, Mac 10.4/ 10.5/ 10.6, Linux Kernel 2.6.x

• IEEE 802.11b/g/n
• Up to 300 Mbps Data Rates
• 64 / 128-bit WEP, WPA / WPA2
• USB cradle for flexible placement
• High gain external antenna for greater coverage

Manufacturer：Rosewill
MPN：RNX-N180UBEv3
Standards：IEEE 802.11b/g, IEEE 802.11n Draft 2.0
Wireless Data Rates：Up to 300Mbps
Security：64 / 128-bit WEP (Hex & ASCII), WPA / WPA2, WPA (TKIP with IEEE 802.1x) / WPA2 (AES with IEEE 802.1x)
Interface：USB 2.0
Frequency Band：2.412 GHz - 2.4835 GHz
Channels：11 CH (US, Canada)
LEDs：Link/Activity
Transmitted Power：802.11b: up to 20 +/- 1 dBm

802.11g: up to 17 +/- 1 dBm

802.11n: up to 16 +/- 1 dBm
Antenna：5 dBi External Detachable Antenna
System Requirements：Windows 7, 8, 10 (32 and 64-bit), Mac, Linux
Features：Supports MIMO technology with 1 transmit antenna and 2 receive antenna

Provides max. 300 Mbps download rate and 150 Mbps upload rate

The easiest way to upgrade your system into wireless N network

Connect your PC / NB to a wireless network in minutes using high speed USB 2.0 interface

Supports 20 MHz / 40 MHz frequency width

Supports WMM for Multimedia Applications with Quality of Service in Wi-Fi Networks

Low Noise Amplifier (LNA) support

5 dBi External Antenna with Extended USB Base for best signal receive and further coverage, and less dead spot
Dimensions：1.78" x 0.71" x 0.39"
Weight：1.50 lbs.
Temperature：0°C - 40°C (32°F - 104°F)
Humidity：10% - 90%, Non-Condensing

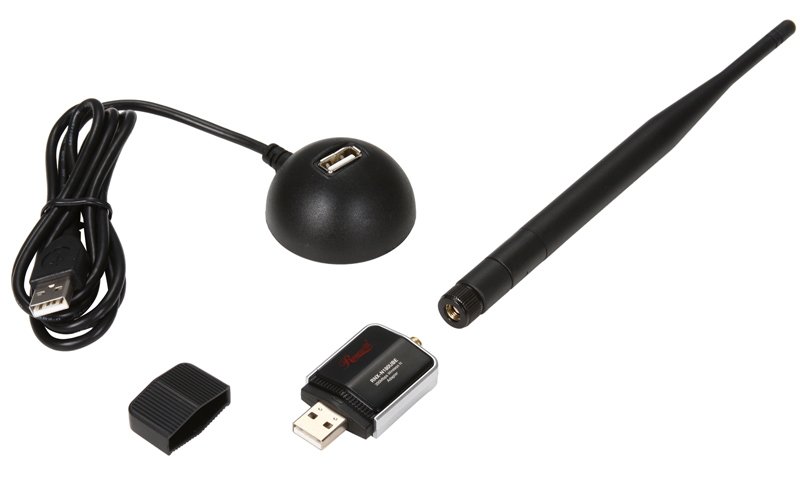

Package Includes：1 x RNX-N180UBEv3
1 x 5 dBi Antenna
1 x USB Extension Base
1 x Quick Installation Guide
1 x Driver CD
