TRENDnet TEW-807ECH AC1200 High Power Wireless Dual Band PCIe Adapter

Do you want to make your desktop computer portable enough so you can move it around the house while keeping connected and not worry if the ethernet cable is long enough to reach it. Then this TRENDnet TEW-807ECH AC1200 High Power Wireless Dual Band PCIe Adapter is perfect for you. This wireless adapter converts your Windows PC tower computer into a wireless AC1200 computer. You won't compromise on speed performance as this upgrade will make your computer to an 867Mbps WiFi AC or 300Mbps WiFi N, perfect for surfing, gaming and streaming 4K HD videos. The brackets included in the package is fully compatible with every computer towers for full versatility and it has a high power 500 mW radio with detachable 5 dBi antennas for increased WiFI coverage. HP Wireless AC1200 DB PCIe Adaptor. Quickly connect to a high performance Wireless AC network at 867 Mbps or to a Wireless N network at 300 Mbps.

• PCI Express 1.0a IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps) IEEE 802.11ac (up to 867 Mbps)
• Up to 867+300 Mbps Wireless Data Rates
• 2.4 GHz: (FCC) 2.412 - 2.462 GHz , (ETSI) 2.412 - 2.472 GHz 5 GHz: (FCC) 5.745 - 5.825 GHz , (ETSI) 5.150 - 5.250 GHz / 5.260 - 5.320 GHz / 5.500 - 5.700 GHz

Manufacturer：TRENDnet
MPN：TEW-807ECH
Standards：PCI Express 1.0a
IEEE 802.11a/b/g/n(up to 300 Mbps)/ac (up to 867 Mbps)
Wireless Data Rates：Up to 867+300 Mbps
Interface：PCI Express x1 (Version 1.0a)

LED indicator

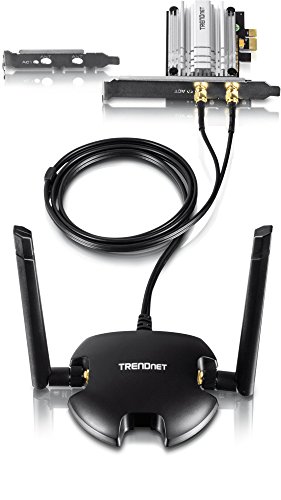

2 x RP-SMA antenna connectors

Magnetic antenna base with 1 m (3.3 ft.) extension cable

2 high gain detachable dual band antennas

Standard & low profile tower brackets
Frequency Band：2.4 GHz: (FCC) 2.412 - 2.462 GHz , (ETSI) 2.412 - 2.472 GHz
5 GHz: (FCC) 5.745 - 5.825 GHz , (ETSI) 5.150 - 5.250 GHz / 5.260 - 5.320 GHz / 5.500 - 5.700 GHz
Channels：2.4 GHz: FCC: 1-11, ETSI: 1-13
5 GHz: (FCC) 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Modulation：802.11b: CCK, DQPSK, DBPSK
802.11a/g: OFDM with BPSK, QPSK and 16 / 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
802.11ac: OFDM with BPSK, QPSK and 16 / 64 / 256-QAM
Antenna：2.4 GHz / 5 GHz: 2 x 5 dBi (max.) dual band external / detachable
System Requirements：Windows 8.1, 8, 7, Vista, XP
Features：Easy setup

Convenient 1 m (3.3 ft.) extension cable and magnetic mounting base

High power 500 mW radio

Heat sink for optimal heat dissipation and performance

Includes standard and low profile tower brackets

Compatible with a PCI Express (PCIe) slot

Supports Windows operating systems
Dimensions：0.70" x 3.30" x 2.50"
Weight：0.18 lb.
Temperature：0 - 55 degree C (32 - 141 degree F)
Humidity：90% Maximum, Non-Condensing
