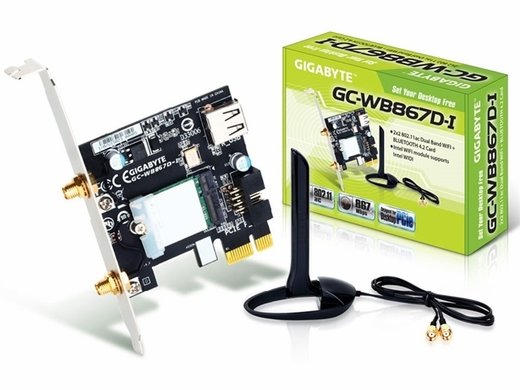

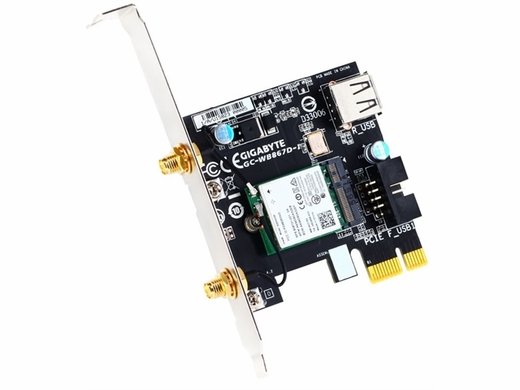

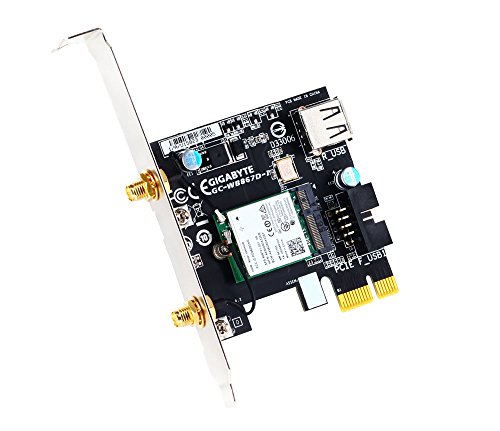

Gigabyte GC-WB867D-I 802.11ac Bluetooth and WiFi Adapter

Gigabyte GC-WB867D-I 802.11a/b/g/n/ac PCI-Express x1 Wi-fi Adapter. This exclusive all in one PCIe wireless AC network and Bluetooth 4.0 / 4.2 expansion card gives you loads of functionality and delivers dramatically higher Wi-Fi speeds than 802.11n. These faster wifi speeds (up to 867 Mbps) will equate to faster transfer rates, better gaming, and increased bandwidth for downloads, streaming, and more! You'll get broader coverage and better power efficiency (more data transmit efficiencies = reduced power consumption). Exclusive Bluetooth 4.2 The GC-WB867D-I also supports for the latest Bluetooth 4.2 connectivity. The Bluetooth 4.2 standard features sync data quickly and reliably that is up to 2.5x faster with a huge packet capacity increase - nearly 10x more versus previous versions. This card is very special because it's one of the only ones that combines bluetooth capabilities into a wifi expansion card.

• Fully qualified Bluetooth 4.2
• Intel WIFI module supports Intel WIDI
• IEEE 802.11ac standards compliant
• Antenna supports WLAN 2T x 2R transmission
• High speed wireless connection up to 867 Mbps
• Bluetooth Enhances Data Rate (EDR) support

Bluetooth Function

Standard

Bluetooth v4.2, V4.0 LE, V3.0+HS, V2.1+EDR

Data rate

1Mbps, 2Mbps, and up to 3Mbps

WiFi Function

Standard

IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

Wi-Fi Alliance

Wi-Fi Certified for 802.11ac, Wi-Fi CERTIFIEDa/b/g,Wi-Fi CERTIFIEDn, WMM, WPA*, WPA2, and WPS, WPS 2.0, Protected ManagementFrames

Network Architecture

Ad-hoc mode (Peer-to-Peer), Infrastructure mode

Security

WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

64-bit and 128-bit WEP, AES-CCMP, TKIP

UL, C-UL, CB (IEC 60950-1)

802.11w (WFA-Protected Management Frames)

• Fully qualified Bluetooth 4.0
• IEEE802.11ac standards compliant
• Antenna to support WLAN 2Tx2R transmission
• High speed wireless connection up to 867 Mbps
• Bluetooth EDR support

Manufacturer：GIGABYTE
MPN：GC-WB867D-I
Specifications：Bluetooth Function
Standard: Bluetooth V4.0 LE, V3.0+HS, V2.1+EDR

Data rate: 1Mbps, 2Mbps, and up to 3Mbps

WiFi Function
Standard: IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

Wi-Fi Alliance: Wi-Fi Certified for 802.11ac, Wi-Fi CERTIFIEDa/b/g,Wi-Fi CERTIFIEDn, WMM, WPA, WPA2, and WPS, WPS 2.0, Protected ManagementFrames

Network Architecture: Ad-hoc mode (Peer-to-Peer), Infrastructure mode

Security: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2 64-bit and 128-bit WEP, AES-CCMP, TKIP UL, C-UL, CB (IEC 60950-1) 802.11w (WFA-Protected Management Frames)
Features：Fully qualified Bluetooth 4.0

IEEE802.11ac standards compliant

Antenna to support WLAN 2Tx2R transmission

High speed wireless connection up to 867 Mbps

Bluetooth Enhances Data Rate (EDR) support
