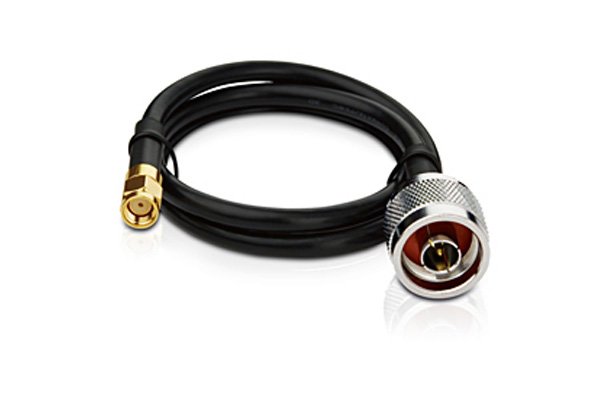

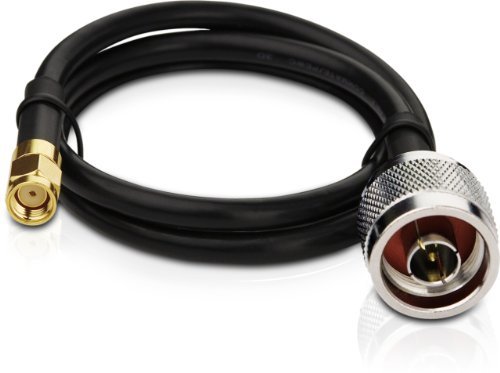

TP-LINK TL-ANT200PT LMR200 N-Type Male to RP-SMA Female Pigtail Cable
- Model: neeobm
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This TP-LINK N-Type Male to RP-SMA Female Pigtail Cable has a waterproof design created for outdoor exposure and is compliant with 2.4GHz 802.11 n/g/b and 5GHz 802.11 n/a. With this N-Type Male to RP-SMA Female Pigtal Cable you'll have dependable network performance in outdoor exposure. TP-LINK TL-ANT200PT 0.
- Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
- Weatherproof cable-designed for outdoor exposure
- LMR-200 cable that provides better performance in 5GHz & 2.4GHz applications
- Frequency
- DC~6GHz
- Impedance
- 50Ω Nominal
- Insertion Loss
- 2GHz 0.7dB
- 2.5GHz 0.8dB
- 3GHz 1.0dB
- 5GHz 1.2dB
- 5.5GHz 1.3dB
- 6.0GHz 1.4dB
- VSWR(MAX.)
- 0~3GHz: 1.5:1 Max
- 3~6GHz: 1.6:1 Max
- Connector Type
- N-Type Male to RP-SMA Female
- Extended Cable/Length
- LMR-200 Cable 0.5m(1.64ft)
- Operating Temp
- -10°C~+60°C
- Storage Temp.
- -40°C~+80°C
- Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
- Weatherproof cable designed for outdoor exposure
- Manufactured using 0.5m low loss cable providing better performance in the 5GHz & 2.5GHz applications and suitable for the same use as LMR-200[1]
- N-Type Male to RP-SMA Female connector, applicable in most connections between wireless AP/Router and antenna
Manufacturer：TP-Link
MPN：TL-ANT200PT
Type：Cable
Specifications：Frequency: DC~6GHz
Impedance: 50 ohm Nominal
Connector Type: N-Type Male to RP-SMA Female
Extended Cable/Length: LMR-200 Cable / 0.5m(1.64ft)
Insertion Loss:
2GHz 0.7dB
2.5GHz 0.8dB
3GHz 1.0dB
5GHz 1.2dB
5.5GHz 1.3dB
6.0GHz 1.4dB
VSWR(MAX.):
0~3GHz: 1.5:1 Max
3~6GHz: 1.6:1 Max
Features：Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
Weatherproof cable-designed for outdoor exposure
Manufactured using 0.5m Low Loss LMR-200 cable that provides better performance in 5GHz & 2.4GHz applications
N-Type Male to RP-SMA Female connector, applicable in most of connections between wireless AP/Router and antenna.
