FSP FSP253-5M02 253W Open Frame Power Supply for 37" LCD TVs
- Model: eezaw0
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

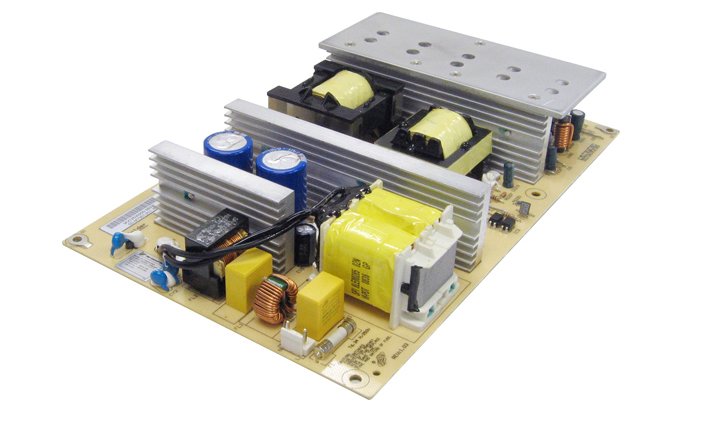

This FSP Group FSP253-5M02 253W Open Frame Power Supply is a high performance power supply which is specially designed fit most 37-inch LCD TV monitors. It features a maximum power output of 253 Watt with a full-range input 110-240 VAC and 75% + conversion efficiency. It also features a fanless air-cooled design to eliminate all your overheating worries and operates at a temperature of 0 - 55 degree C.
- Model: FSP253-5M02
- Brand: FSP
- 253-Watt; Designed For Most 37-Inch LCD TV Monitors
- Fanless, Air-Cooled Design For Quiet Operation
- Active Power Factor
- Correction With Full-Range Input, 100-240 Vac
- Power Conversion Efficiency 75%
- Complete Power Protection: SCP; OVP; OCP
- No Load Power Consumption (Power Saving) < 2-Watt
- Worldwide Safety Standards
- Global Environmental Friendly Status: Rohs, Lead-Free, G.P
- Dimensions: 260L X 162W X 43H (mm)
- General Specifications:
- Cooling: Fanless, air-cooled design
- Total Output Power: 253 Watt total continuous output @ 40 Degrees C
- MBTF: 100,000 HOURS @ TYPICAL
- Output Connectors: CNS1, CNS2, CNS3 and CNS4
- Input
- Input Voltage: 180V AC to 264V AC, 47 ~ 63Hz
- Input Current: 5.00A max. @ 180 Vrms, 60 Hz. 100.00A max. @ 264 Vrms, 50 Hz, no damage
- Efficiency: ≥ 75%
- Output Voltage:
- +24V
- + 5V
- +15V
- +12V
- +5Vsb (Standby)
- Output Current:
- +24V | 0.01A ~ 7.2A Max.
- + 5V | 0.4A ~ 1.5A Max.
- +15V | 0.1A ~ 3.44A Max.
- +12V | 0.1A ~ 1.0A Max.
- +5Vsb | 0.06A ~ 2.0A Max.
- Output Protection: Complete OVP, OCP, SCP Protection
Manufacturer:FSP Group
MPN:FSP253-5M02
