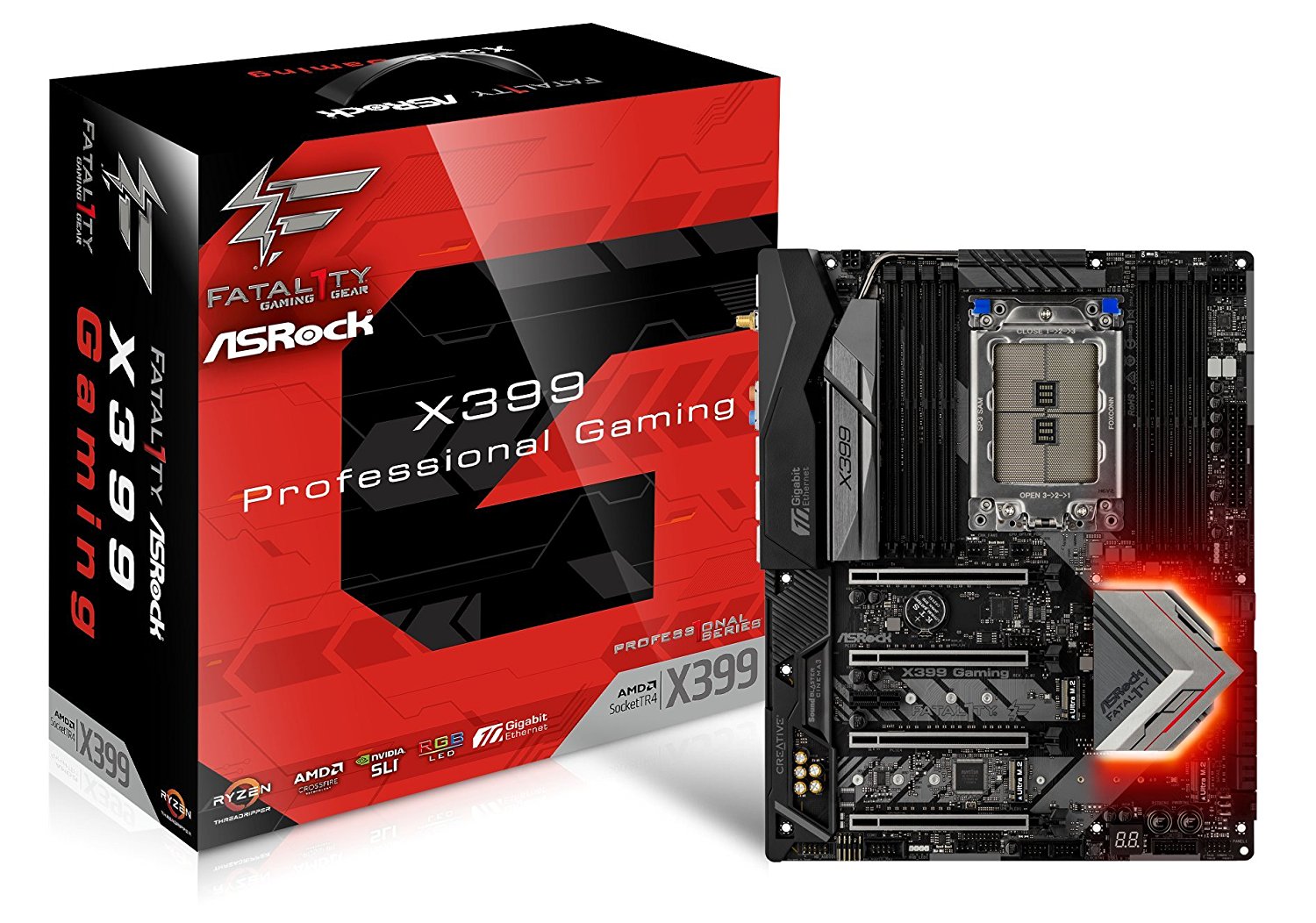

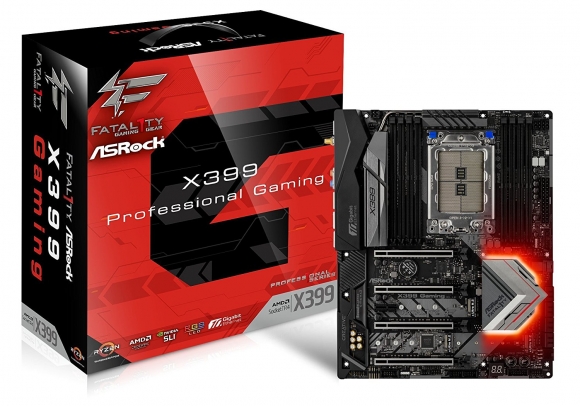

ASRock Fatal1ty X399 Professional Gaming sTR4 AMD X399 SATA 6Gb/s USB 3.1 ATX AMD Motherboard

If you only buy the best of the best, the ASRock X399 Professional Motherboard should be your choice. Packing an incredible amount of features, this board will suit all your needs and comes with all the latest technologies. 8 DIMM Slots support quad-channel memory up to DDR4-3600+. 4-Way Nvidia and CrossFireX, 8 SATA III, 3 Ultra M.2, 2 USB 3.1 Gen2, and 12 USB 3.1 Gen 1 ports are supported.

The ASRock X399 Professional Gaming motherboard supports TR4 processors and will fit in a standard ATX case. This board is powered by the AMD X399 chipset and has support for 8 x 288-pin DIMM memory sticks with a max memory of up to 128GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2933 / 3200 / 3600. This motherboard has 8 SATA ports and 2 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / Silver design.

• Brand: ASRock
• Series: Fatal1ty
• Model: X399 Professional Gaming
• CPU Socket Type: sTR4
• CPU Type: Ryzen Threadripper
• Chipset: AMD X399
• Number of Memory Slots: 8x288pin
• Memory Standard: DDR4 3600+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133
• Maximum Memory Supported: 128GB
• Channel Supported: Quad Channel
• PCI Express 3.0 x16: 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5):
Single at x16 (PCIE1);
Dual at x16 (PCIE1) / x16 (PCIE4);
Triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4);
Quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))
• PCI Express x1: 1 x PCI Express 2.0 x1 Slot
• Other Slots
• 1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
• SATA 6Gb/s: 8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
• M.2
2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)
1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)
• SATA RAID: 0/1/10
• Audio Chipset: Realtek ALC1220
• Audio Channels: 7.1 Channels
• LAN Chipset: AQUANTIA AQC107
• Second LAN Chipset: 2 x Intel I211AT
• Max LAN Speed: 10Gbps + Dual 10/100/1000Mbps
• Wireless LAN: Intel 802.11 ac Wi-Fi Module (Free Bundle)
• Bluetooth: Supports Bluetooth 4.2 / 3.0 + High speed class II
• PS/2: 1 x PS/2 keyboard/mouse port
• RJ45: 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
• USB 3.1:
1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
8 x USB 3.1 Gen1 Ports (Supports ESD Protection)
• S/PDIF Out: 1 x Optical
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Onboard USB:
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
• Form Factor: ATX
• LED Lighting; RGB
• Dimensions (W x L): 12.0" x 9.6"
• Other Connectors
1 x COM Port Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Front Panel Audio Connector (15? Gold Audio Connector)
1 x Right Angle Front Panel Audio Connector
1 x Clear CMOS Switch
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x CPU Xtreme OC Switch

• AMD X399
• Ryzen Threadripper Series
• DDR4 3600+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133

Manufacturer：ASRock
Classification：Fatal1ty
MPN：X399 Professional Gaming
CPU Socket Type：sTR4
Processor Type：Ryzen Threadripper Series
Chipset：AMD X399
Number of Memory Slots：8×288pin
Memory Standard：DDR4 3600+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported：128GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported：Quad Channel
PCI Express 3.0 x16：4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))*
* Supports NVMe SSD as boot disks
PCI Express x1：1 x PCI Express 2.0 x1 Slot
Other Slots：1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
SATA 6Gb/s：8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2：2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
1 x U.2 Connector
* If U.2 Connector is plugged, M2_1 will be disabled
SATA RAID：0/1/10
Onboard Video Chipset：None
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：AQUANTIA AQC107
Second LAN Chipset：2 x Intel I211AT
Max LAN Speed：10Gbps + Dual 10/100/1000Mbps
Wireless LAN：Intel 802.11 ac Wi-Fi Module (Free Bundle)
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
Bluetooth：Supports Bluetooth 4.2 / 3.0 + High speed class II
PS/2：1 x PS/2 keyboard/mouse port
RJ45：3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
8 x USB 3.1 Gen1 Ports (Supports ESD Protection)

*Ultra USB Power is supported on USB3_6 port.
ACPI wake-up function is not supported on USB3_6 port.
1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included.
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors：1 x COM Port Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x CPU Fan Connector (4-pin)**
1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)*****
1 x Right Angle Front Panel Audio Connector*****
1 x Clear CMOS Switch
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x CPU Xtreme OC Switch

*Each header supports up to 12V/3A, 36W LED Strip.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
****CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
******Connect the audio device to either one of the audio connectors.
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 6-pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
Features：Gaming Armor:
Power
- Hi-Density Power Connectors (24-pin for Motherboard, 8+4-pin for Motherboard, 6-pin for PCIe Slot)
- IR Dr. MOS
Memory
- 15µ Gold Contact in DIMM Slots
VGA Card
- 15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Internet
- AQUANTIA 10G LAN
- Intel LAN
Cooling
- XXL Aluminum Alloy Heatsink
- 8 Layer PCB
- 2oz Copper PCB
- Heat Pipe Design
Audio
- Creative Sound Blaster Cinema 3

Unique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- IR3555M Dr. MOS 60A
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
AQUANTIA 10G LAN
Intel 802.11 ac Wi-Fi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment

Software and UEFI:
Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

OS:
- Microsoft Windows 10 64-bit*
* Windows 10 RS2 is supported

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
