Syba SI-PEX40076 PCI Express x1 eSATA 6Gb/s Controller Card
- Model: skx3j0
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

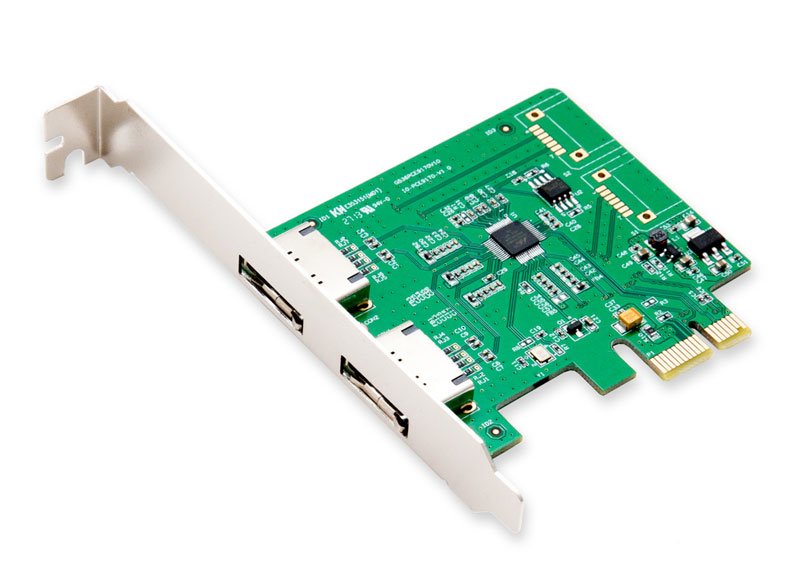

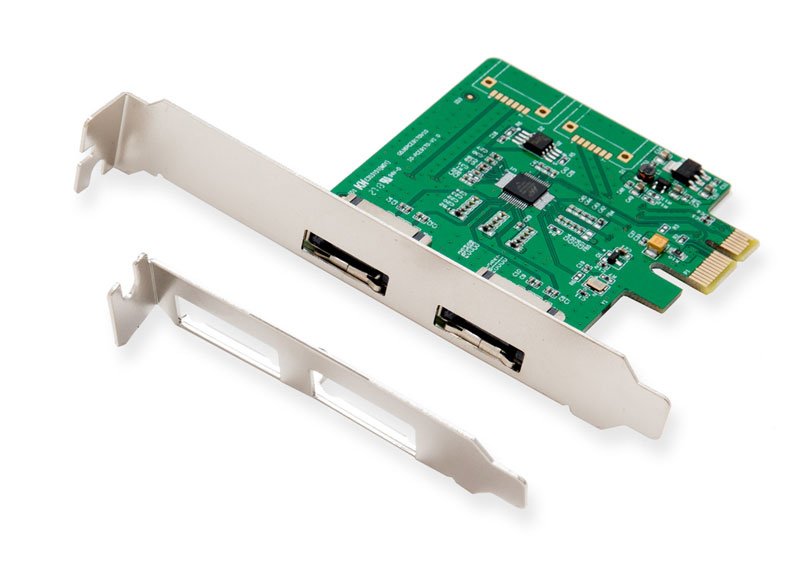

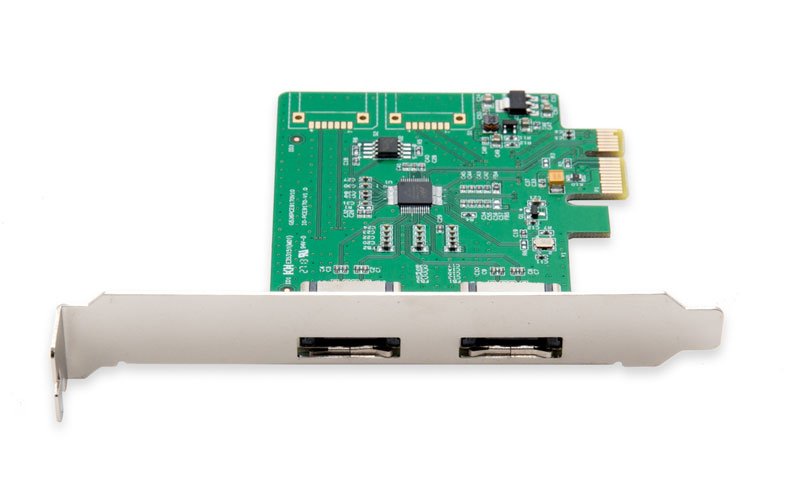

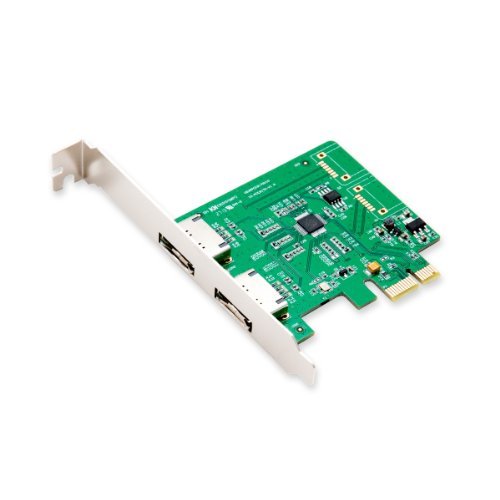

PCIe x1 Interface Version 2.0, 2-Port External eSATA 6Gbps Controller Card, Raid 0/1, Marvell 88SE9170 Chipset, with Low Profile Bracket. Syba 2-Port eSATA Controller Card - This 2-port eSATA expansion card from Syba adds two 6Gbps external SATA ports to your desktop PC, giving you high-bandwitdh access to external storage drives.
- 2x eSATA Controller Card
- PCI Express x1 Interface
- Supports RAID 0 / 1
- Ports
- 2x eSATA III
- Chipset
- Marvell 9170
- Bus Interface
- PCI-Express x1
- Standards
- Compliant with Serial ATA Specification 3.0
- Compliant with PCIe 2.0 Specifications
- Communication Speed
- 6.0Gbps, 3.0Gbps, and 1.5Gbps
- RAID
- Level 0/1
- Features
- Supports AHCI 1.0 and IDE Programming Interface
- Hot Plug and Hot Swap
- Supports Native Command Queuing (NCQ)
- Supports Port Multiplier FIS Based Switching or Command Based Switching
- Supports Partial and Slumber Power management States
Syba SI-PEX40076
- PCI Express Controller Card
Manufacturer：SYBA
MPN：SI-PEX40076
Type：PCI Express Controller Card
Operating Systems Supported：Windows 8
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP
Server 2003
Server 2008
Specifications：Ports: 2x eSATA III
Chipset: Marvell 9170
Bus Interface: PCI-Express x1
Compliant with Serial ATA Specification 3.0
Compliant with PCIe 2.0 Specifications
Supports Communication Speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
Supports Programmable Transmitter Signal Level
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Supports AHCI 1.0 and IDE Programming Interface
Hot Plug and Hot Swap
Supports Native Command Queuing (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Supports Partial and Slumber Power management States
Compatible with SATA 6G, 3G, and 1.5G Hard Drives
Supports RAID Level 0/1
Package Includes：2 eSATA Ports SATA III PCI-e Controller Card
Driver CD
User Manual
Low Profile Bracket
