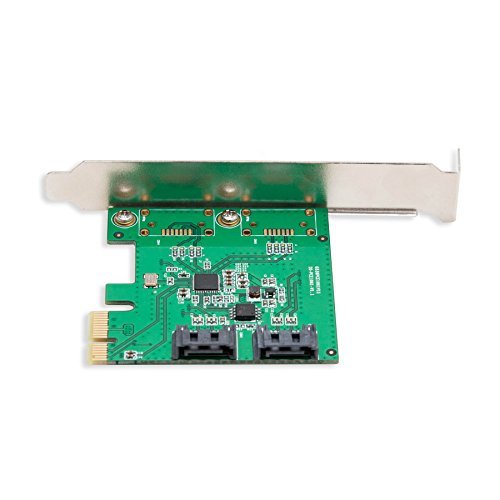

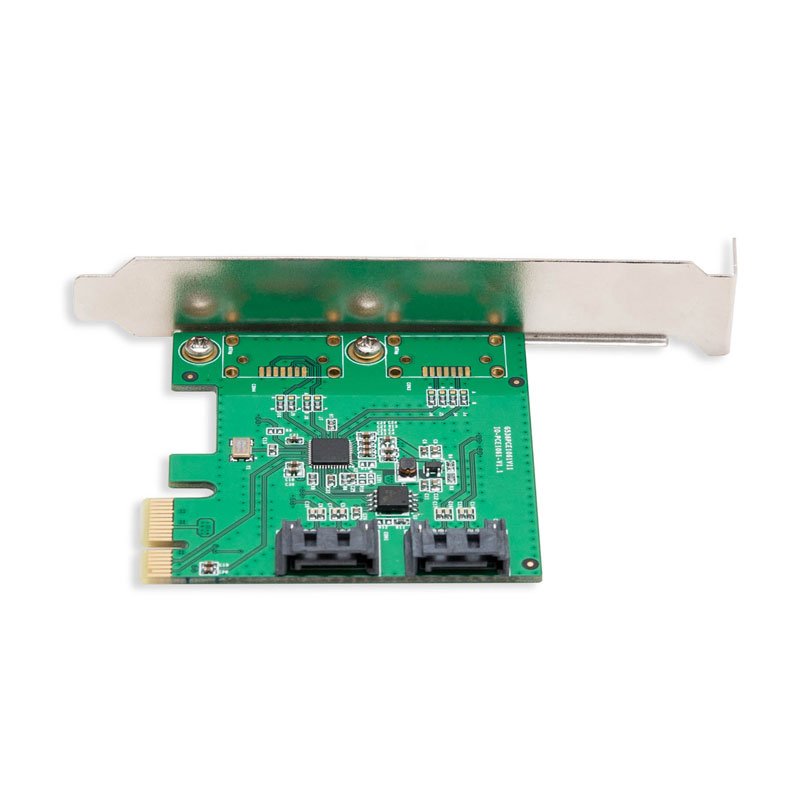

Syba SI-PEX40089 2-port SATA2 PCI-E x1 Controller Card
- Model: 58t51y
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCIe x1 Interface Version 2.0, 2-Port SATA3, Speed up to 6Gbps, Support RAID 0 / 1 / SPAN, ASMedia 1061 Chipset, with Low Profile Bracket. This Syba 2-Port SATA III PCI Express Card allows for any two SATA storage devices to become a RAID array. Simply plug them both in the PCIe card and select which type of RAID to have them in (0, 1, SPAN). The RAID mode is changeable, controlled via the setting by two GPIOs or GUI utility. Syba SI-PEX40089 2-port SATAIII, PCI-E, x1, Revision 2.

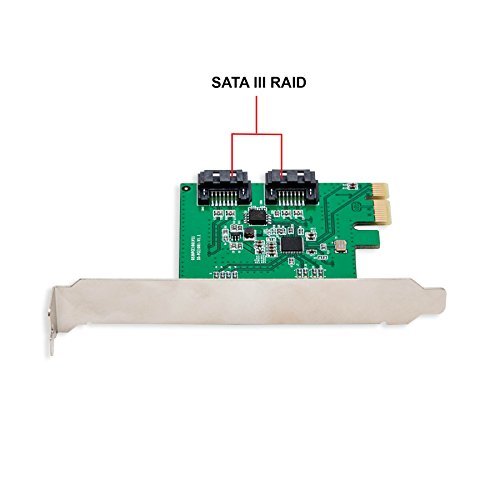

- Supports two SATA devices
- Supports RAID 0, 1, SPAN
- Embedded hardware RAID engine
- Supports S.M.A.R.T and automatic rebuild
- Model
- SI-PEX40089
- SATA Support
- Supports SATA I, II, and III
- Programming Interface
- AHCI and IDE
- S.M.A.R.T
- Yes
- Automatic Rebuild
- Yes
- Package Dimensions
- L 2.5 x W 2.5 x H 4.5 inch
- Package Weight
- 0.3 lbs
- Supports 1.5 / 3.0 / 6.0 Gbps
- Supports AHCI and IDE programming
- Supports Port Multiplier
- Embedded hardware RAID
- RAID mode (0, 1, SPAN)
Manufacturer：SYBA
MPN：SI-PEX40089
Internal Connectors：2 x SATA 6.0Gb/s
Interface：PCI-Express 2.0
Operating Systems Supported：Windows 8, 7, vista, Server 2008 / 2012 (32 / 64 bit)
Linux
Dimensions：1.25" x 2.50" x 3.63"
Features：Supports 2 ports Serial ATA PHY, 1.5 Gbps, 3.0 Gbps and 6.0 Gbps seed negotiation
Supports AHCI and IDE programming interface
Supports Native Command Queue (NCQ)
Supports Port Multiplier command based switching
Embedded hardware RAID engine
RAID mode changeable, controlled via the setting by two GPIOs or GUI utility
Supports S.M.A.R.T feature
Supports automatic rebuild

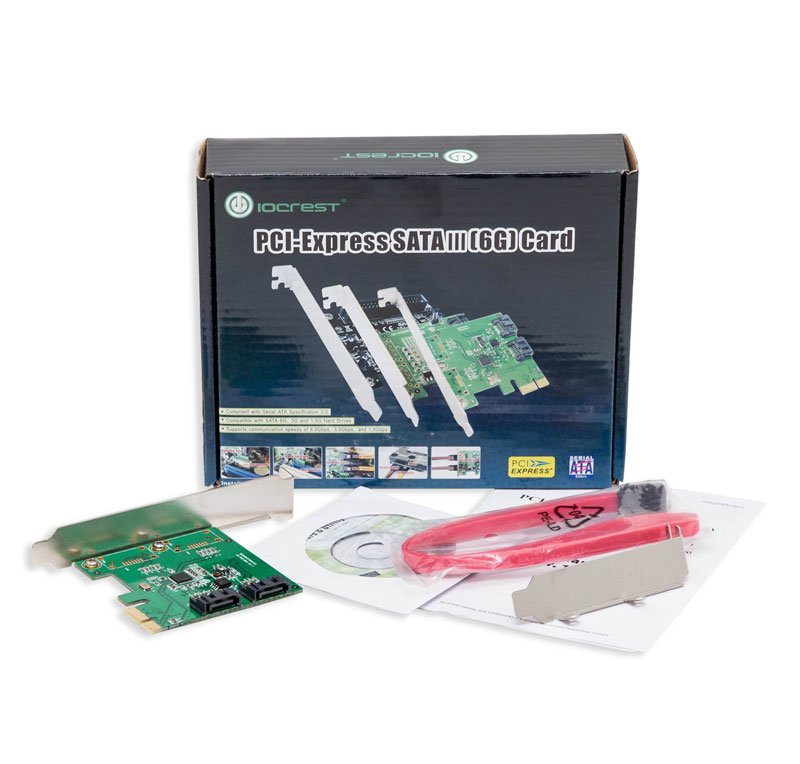

Package Includes：2-port PCI-e SATA-3 Controller Card
Low Profile Bracket

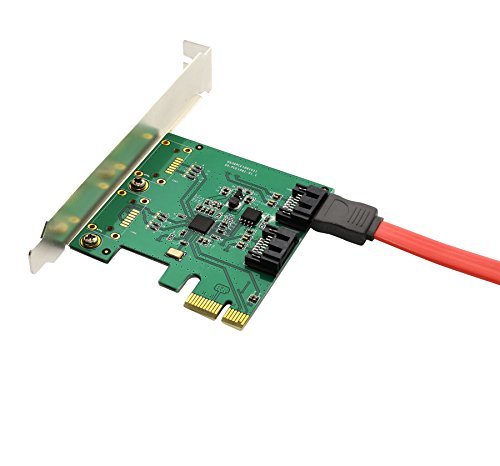

SATA Cable
Driver CD
User Manual
