Syba Mini PCI-e to Gigabit Ethernet Adapter
- Model: oc2ag2
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Mini PCI Express 1.1 1-Port Gigabit 10/100/1000 Base-T Ethernet LAN Controller, with Daughter Card and 10-Pin Network Cable, Realtek Chipset. Syba Mini PCI-e GigaBit Ethernet Card with RJ45 Port Bracket Controller (SD-MPE24031) Take advantage of the mini PCI-e v1.1 technology, perform at peak 1000BASE-T network speed, cooperates with almost all Operating Systems on the market, consumes less power, and occupies less space.
- Brand
- Syba
- Ports
- 1 x RJ-45
- PCI-E Compliance
- PCI-e Revision 1.1
- Ethernet Compatilibity
- 10/100BASE-T Networking
- 10/100/1000Mbps Ethernet
- PCI-E Compliance
- PCI-e Revision 1.1
- Protocol
- Mini PCI-e with Transfer Rate 2.5Gb/s Full Duplex Channel
- Type
- High Performance 1000BASE-T Ethernet Controller Card
- Ethernet Compatilibity
- 10/100BASE-T Networking
- 10/100/1000Mbps Data Rate Auto Negotiation Operation
- Existing CAT-5 UTP Cabling
- Supports
- Jumbo Frame to 9K Bytes
- Compliance
- IEEE 802.1P Layer 2 Priority Encoding
- Supports IEEE 802.1Q VLAN Tagging
- Supports IEEE 802.3az Draft 3.0 (EEE)
Syba Mini PCIe to 1000Base-T Network
- 10/100/1000Mbps
- 1 x RJ45
Manufacturer：SYBA
MPN：SD-MPE24031
Standards：IEEE802.3, IEEE802.3u, IEEE802.3ab
Speed：10/100/1000Mbps
Connectors：1 x RJ45
Interface：Mini PCI Express
Features：Complies with PCI-e Revision 1.1
Mini PCI-e with Transfer Rate 2.5Gb/s Full Duplex Channel
A High Performance 1000BASE-T Ethernet Controller Card
Backward Compatible to 10/100BASE-T Networking
10/100/1000Mbps Data Rate Auto Negotiation Operation
Compatible to Existing CAT-5 UTP Cabling
Supports Jumbo Frame to 9K Bytes
Fully Compliant with IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN Tagging
Supports IEEE 802.3az Draft 3.0 (EEE)
Crossover Detection and Auto Correction Operation.
Weight：1.00 lb.

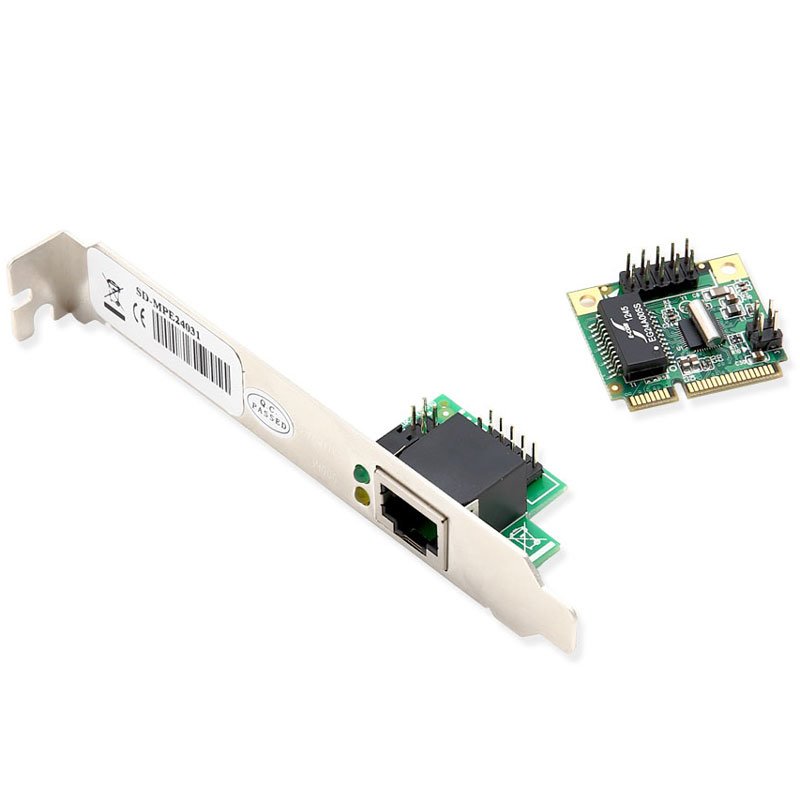

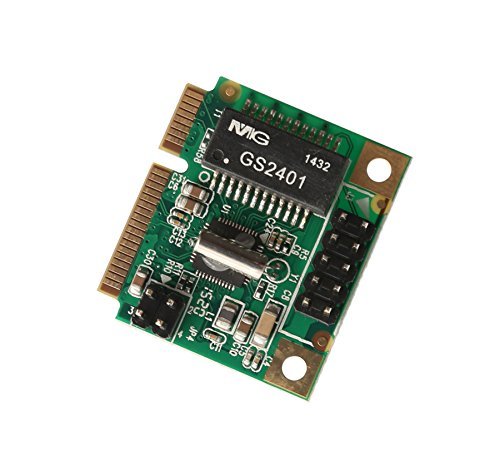

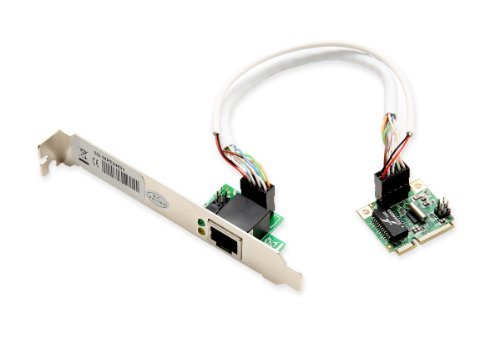

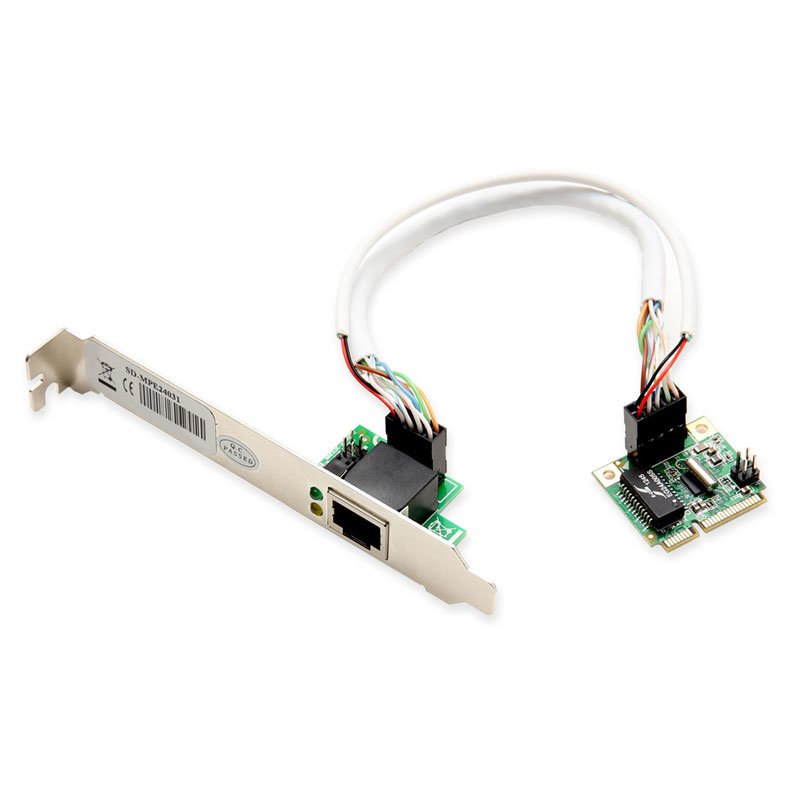

Package Includes：Gigabit Ethernet Mini PCI-e Main Card
Daughter Card (Bracket with RJ-45 Port)

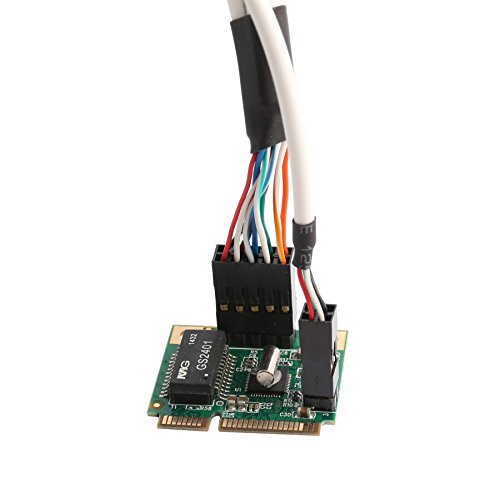

10-pin Network Cable
4-pin LED Cable
User Manual
Driver Mini CD
