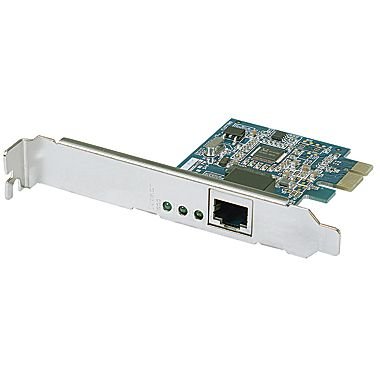

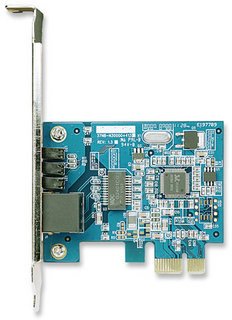

Intellinet 522533 PCIe x1 Gigabit PCI Network Card
- Model: 5m20i8
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Experience blazing fast Gigabit Ethernet speeds with Intellinet's PCI Express x1 Gigabit Network Controller Card! Designed to add Gigabit Ethernet capability to your system at a fundamental level, you can wake your computer from the LAN network or network in full duplex mode, enjoying the latest in wired networking standards.
- Full Duplex
- Double the speed of your network connection by running your connection in full duplex
- Low Profile Ready
- Easily fits into slim PC cases with the included low profile bracket
- Wake-on-LAN support
- Take your computer out of hybernation mode by accessing it via LAN
- Network Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (1000Base-T Gigabit Ethernet)
- Interface
- RJ45 connector
- Modes Supported
- Ethernet 10 Mbps (half duplex)
- Ethernet 20 Mbps (full duplex)
- Fast Ethernet 100 Mbps (half duplex)
- Fast Ethernet 200 Mbps (full duplex)
- Gigabit 2000 Mbps (full duplex)
- Compliance
- FCC & CE compliance
- Compliant with PCI Express Specification, revision 1.0a
- LEDs
- 10 Mbps Link/Act
- 100 Mbps Link/Act
- 1000 Mbps Link/Act
- Dimensions
- 25.4 (H) x 122 (W) x 89 (D) mm (1 x 4.8 x 3.5 in.)
- Weight
- 39.6 g (1.4 oz.)
- Operating temperature
- 0 - 40 Degrees C (32 - 104 Degrees F)
- Storage temperature
- 0 - 65 Degrees C (32 - 149 Degrees F)
- Operating humidity
- 10 - 90%, non-condensing
- Storage humidity
- 5 - 95%, non-condensing
Intellinet 522533
- 10/100/1000Base-T
Manufacturer：Intellinet
MPN：522533
Speed：10/100/1000Base-T
Interface：PCI
Electrical Outlet Plug Type：Gigabit Ethernet Card
