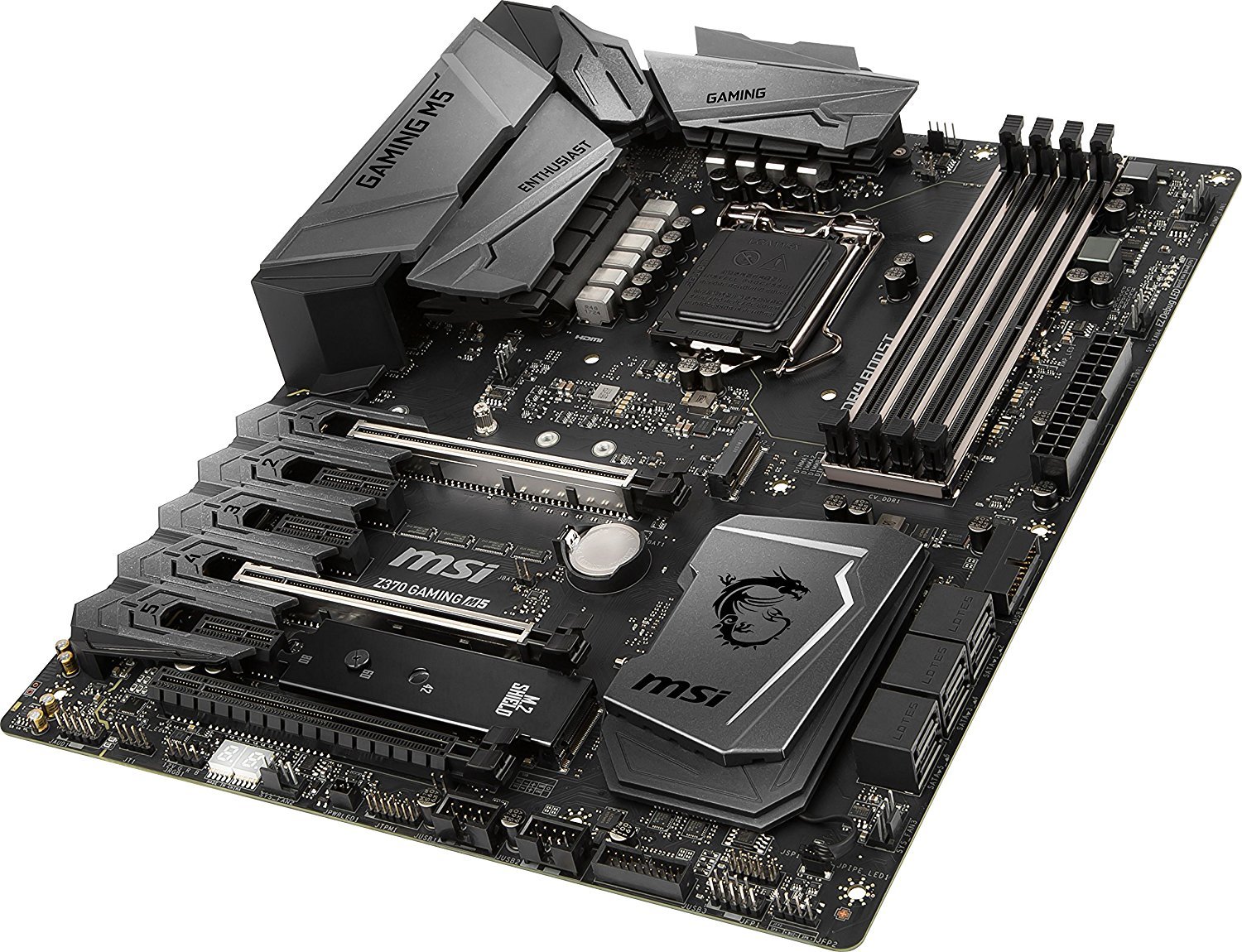

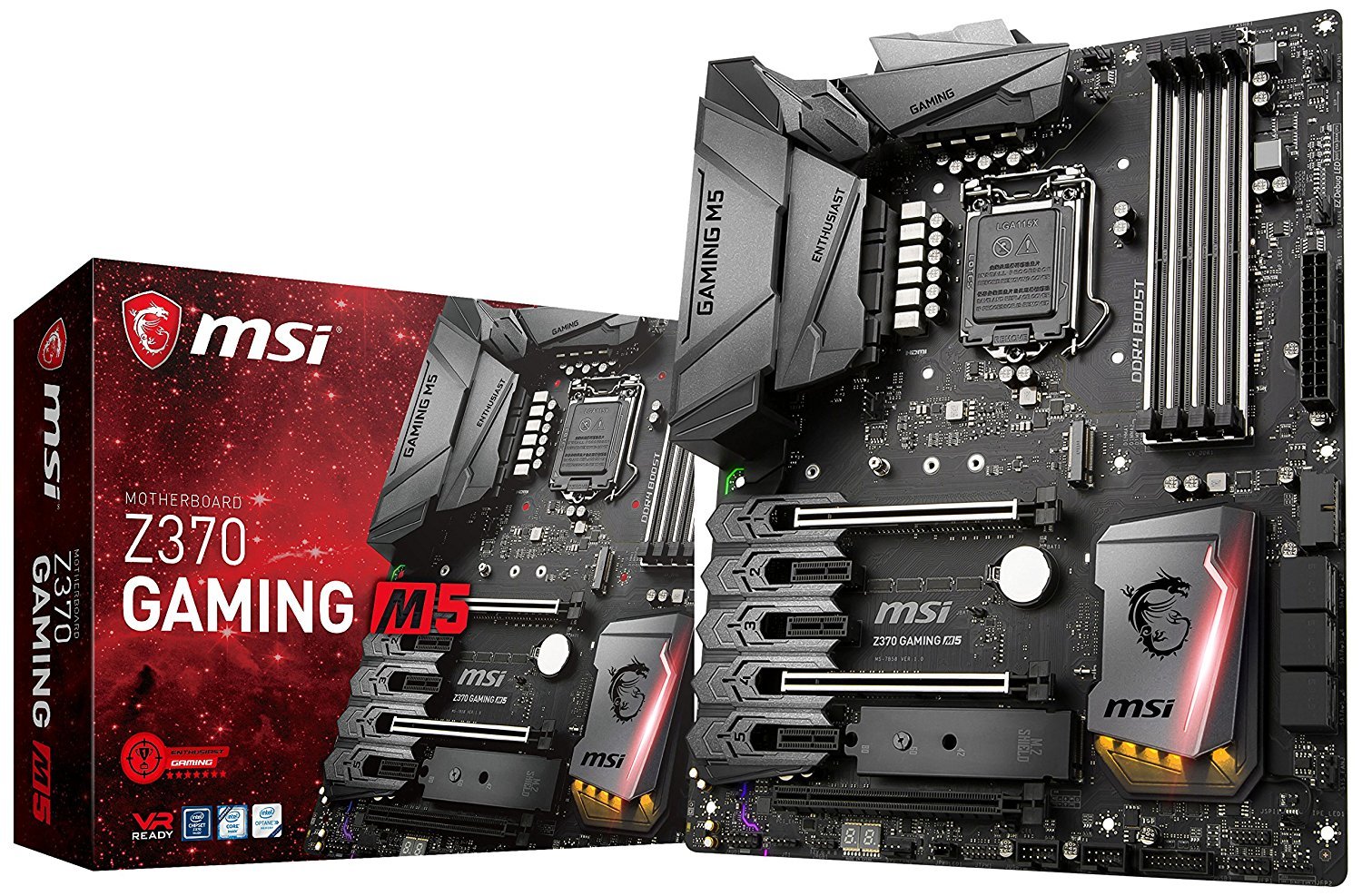

MSI Z370 GAMING M5 LGA 1151 Motherboard

This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies. Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second. Personalize your PC with 16.8 million colors & 17 effects through Mystic Light RGB LED.

The MSI Z370 GAMING M5 motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel Z370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3300 / 3333 / 3400 / 3466 / 3600 / 3733 / 3866 / 4000. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, support for SLI, stylish Black design.

• Brand: MSI
• Model: Z370 GAMING M5
• CPU Socket Type: LGA 1151 (300 Series)
• CPU Type: Supports 8th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
• Chipset: Intel Z370
• Number of Memory Slots: 4x288pin
• Memory Standard: DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
• Maximum Memory Supported: 64GB
• PCI Express 3.0 x16: 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
• PCI Express x1: 3 x PCIe 3.0 x1 slots
• SATA 6Gb/s: 6 x SATA 6Gb/s ports
• M.2: 2 x M.2 slots (Key M)
• SATA RAID: 0/1/5/10
• Audio Chipset: Realtek ALC1220
• Audio Channels: 7.1 Channels
• LAN Chipset: Killer E2500
• Max LAN Speed: 10/100/1000Mbps

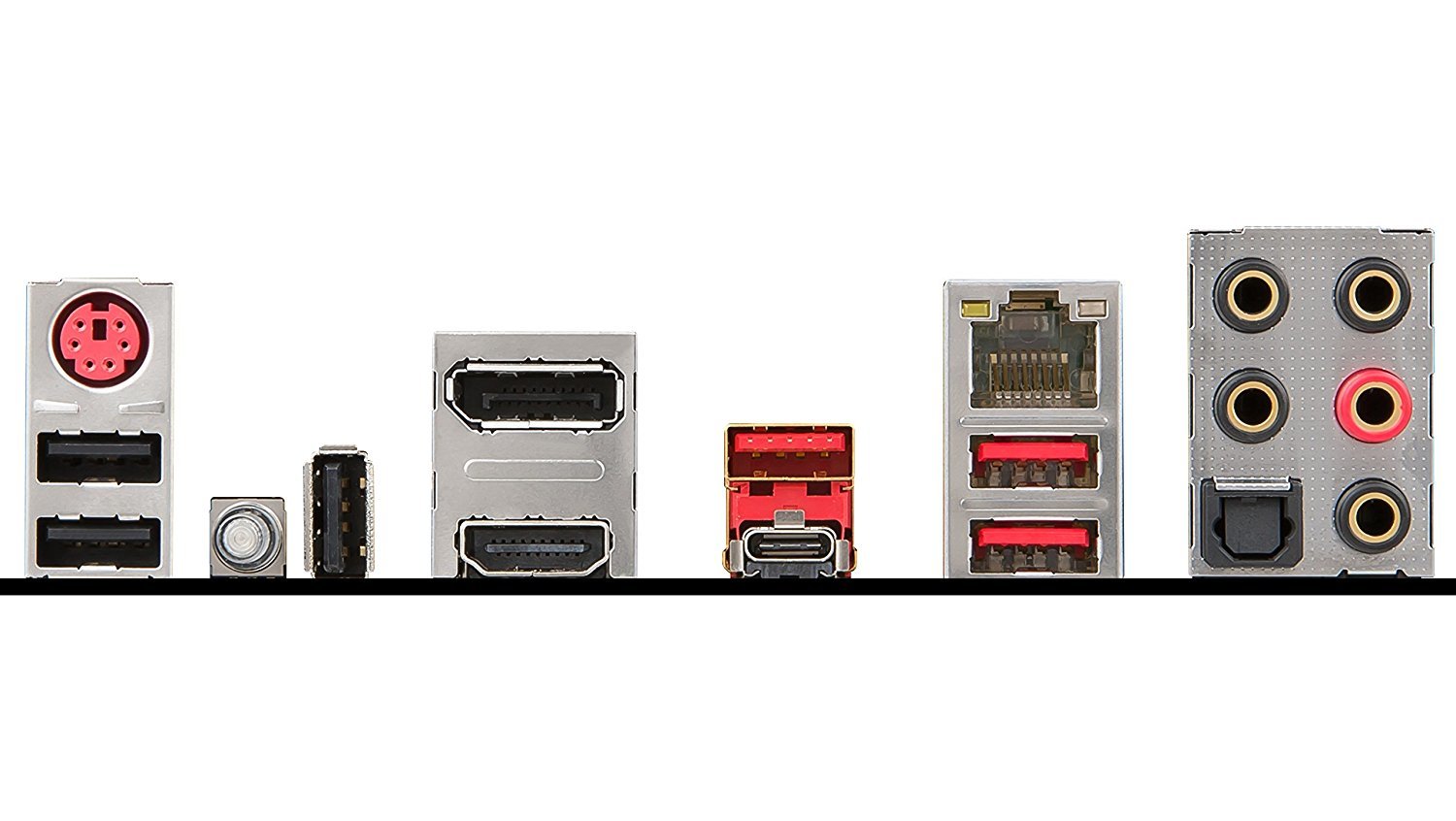

• PS/2: 1 x PS/2 keyboard/mouse port
• HDMI: 1 x HDMI
• RJ45: 1 x RJ45
• DisplayPort: 1 x DisplayPort
• USB 3.1: 1 x USB 3.1 Gen2 Type-A port, 1 x USB 3.1 Gen2 Type-C port, 2 x USB 3.1 Gen1 Type-A ports
• USB 1.1/2.0: 3 x USB 2.0 ports, *1 x BIOS FLASHBACK+ port
• S/PDIF Out: 1 x Optical
• Audio Ports: 5 x OFC audio jacks
• Form Factor: ATX
• LED Lighting: RGB
• Dimensions (W x L): 12.0" x 9.6"
• Power Pin: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
• Onboard USB
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• Other Connectors
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 4 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x RGB LED connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x BIOS FLASHBACK+ button
• 1 x 2-Digit Debug Code LED
• 1 x LED power input connector

• Intel Z370
• Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133

Manufacturer：MSI
MPN：Z370 GAMING M5
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset：Intel Z370
Onboard Video Chipset：Supported only by CPU with integrated graphic
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
PCI Express x1：3 x PCIe 3.0 x1 slots
SATA 6Gb/s：6 x SATA 6Gb/s ports*
* The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot.
M.2：2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- M2_1 slot supports 2242/2260/2280/22110 storage devices
- M2_2 slot supports 2242/2260/2280 storage devices
- Intel Optane Memory Ready for all M.2 slots
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC1220
Audio Channels：7.1-Channel
Supports S/PDIF output
LAN Chipset：Killer E2500
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
HDMI：1 x HDMI
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0：3 x USB 2.0 ports
*1 x BIOS FLASHBACK+ port
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Onboard USB：2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x BIOS FLASHBACK+ button
1 x 2-Digit Debug Code LED
1 x LED power input connector
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：Supports 8th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket.

Supports DDR4-4000+(OC) Memory.

Mystic Light and Mystic Light Sync: Personalize your PC with 16.8 million colors / 17 effects controlled in one click with the Mystic Light APP or a mobile device.

Twin Turbo M.2 with M.2 Shield V2: Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.

Lightning USB 3.1 Gen2: Powered by the ASMedia ASM3142 USB 3.1 Gen2 controller, Lightning USB offers the fastest USB speeds at lowest power usage.

Audio Boost 4: Isolated audio with a high quality audio processor & Nahimic 2+ for the most immersive gaming experience.

Killer LAN: Get ready for the lowest latency with Killer's exclusive network management to prioritize game traffic over any other network traffic.

DDR4 Boost with Steel Armor: Fully isolated and shielded DIMM slots to protect DDR4 modules and delivers pure data signals for best gaming and overclocking.

MULTI-GPU: Supports NVIDIA SLI and AMD CrossFire with optimal slot placement for the best airflow.

VR Ready: Best virtual reality game experience without latency, reduces motion sickness.

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast.

EZ Debug LED: Easiest way to troubleshoot.

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.
