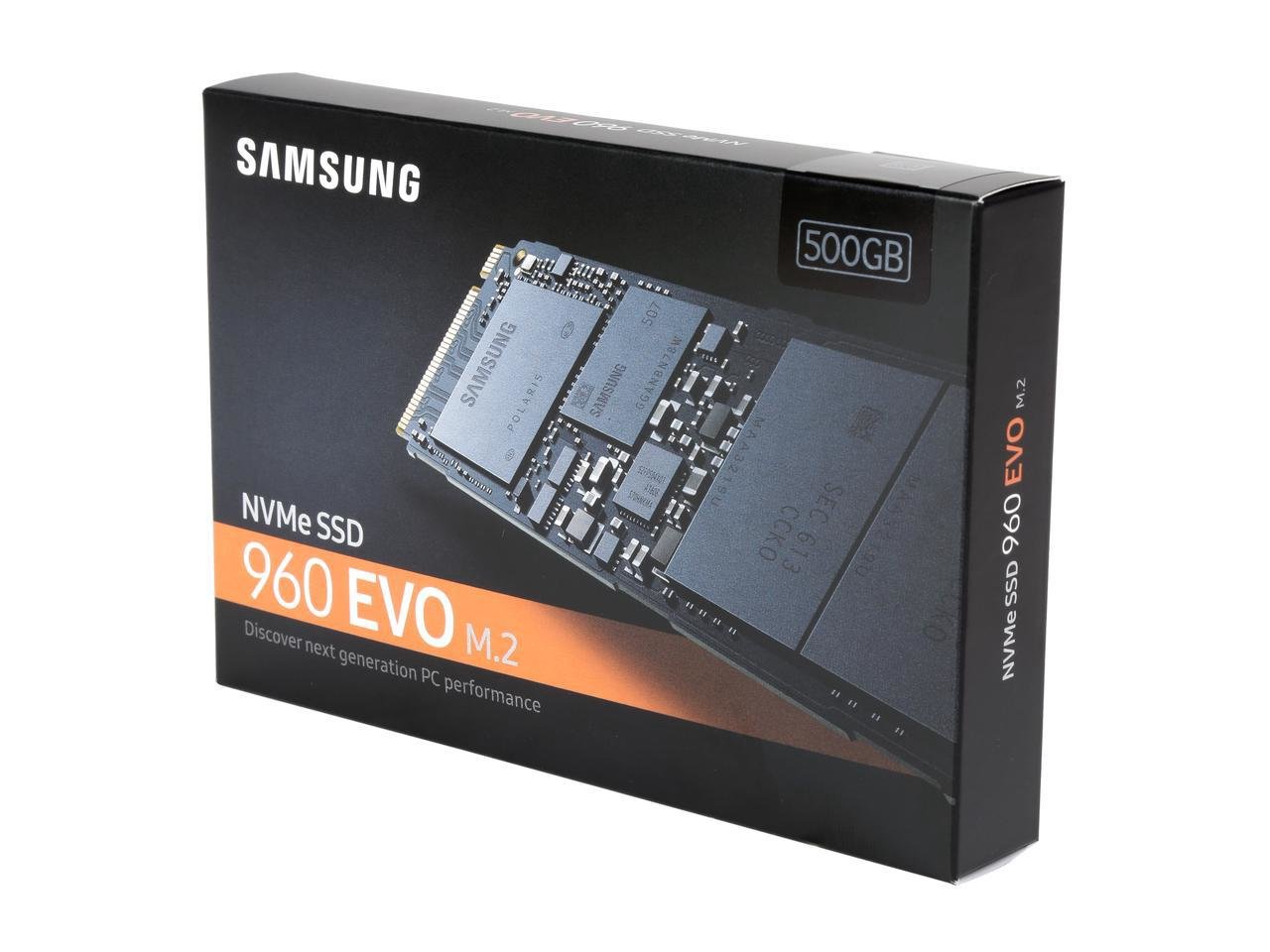

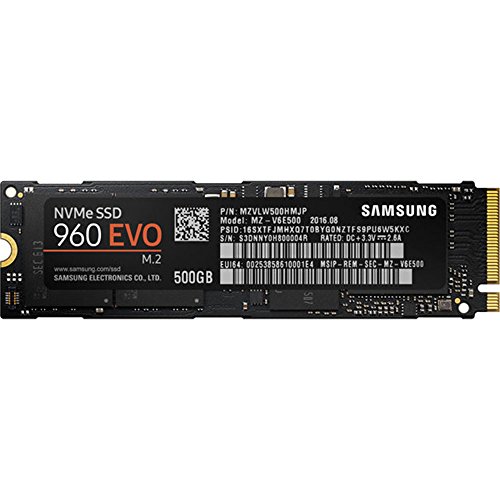

Samsung MZ-V6E500BW 960 EVO NVMe Series SSD 500GB M.2 PCI-Express 3.0 x4
- Model: rd1g3j
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Samsung MZ-V6E500BW SSD 960 EVO NVMe M.2 500GB. Supercharge your PC with this 500GB Samsung solid-state drive. This M.2 drive slots right into the computer's motherboard and has read speeds up to 3200 MB/sec. and write speeds up to 1800 MB/sec. Discover the next advancement in SSD technology with our high-performance, highly reliable 960 EVO Series NVMe M.2 SSDs. Non-Volatile Memory Express (NVMe) with a new Polaris controller outperforms our SATA SSDs with exceptionally fast read/write speeds, and Samsung TurboWrite technology accelerates write speeds even further. Samsung's Magician software solution provides advanced functionality to manage, monitor and optimize drive performance. Enhanced bandwidth beyond the SATA interface provided by the NVMe interface, combined with the new Polaris controller facilitates sequential Read/Write speeds up to 3,200 MB/s and 1,800 MB/s respectively. Plus, the new Intelligent TurboWrite technology accelerates write speeds even further.
- TRIM Supported
- S.M.A.R.T Supported
- GC (Garbage Collection): Auto GC Algorithm
- Encryption Support: AES 256-bit or User Data EncryptionTCG Opal Family Spec and eDrive (IEEE 1667) to be supported by FW update
- Device Sleep Mode Support: 5mW (L1.2)
- Brand: SAMSUNG
- Series: 960 EVO
- Model: MV-V6E500BW
- Device Type: Internal Solid State Drive (SSD)
- Form Factor: M.2 2280
- Capacity: 500GB
- Interface: PCI-Express 3.0 x4
- Controller: Samsung Polaris controller
- Cache: 512MB
- Max Sequential Read: Up to 3200 MB/s
- Max Sequential Write: Up to 1800 MB/s
- 4KB Random Read: Up to 330,000 IOPS (4KB, QD32)
- 4KB Random Write Up to 330,000 IOPS (4KB, QD32)
- MTBF: 1,500,000 hours
- Power Consumption (Idle): 1.2W
- Power Consumption (Active): 5.4W
- Operating Temperature: 0°C ~ +70°C
- Max Shock Resistance: 1500G, duration 0.5m sec, 3 axis
- Height: 2.38mm
- Width: 22.15mm
- Depth: 80.15mm
- Weight: 8.00g
Product Specifications:
Up to 14,000 IOPS (4KB, QD1)
Up to 50,000 IOPS (4KB, QD1)
- M.2 2280
- 500GB
- PCI-Express 3.0 x4
Manufacturer：SAMSUNG
Classification：960 EVO
MPN：MZ-V6E500BW
Device Type：Internal Solid State Drive (SSD)
Used For：Consumer
Form Factor：M.2 2280
Size：500GB
Memory Components：3D NAND
Interface：PCI-Express 3.0 x4
Controller：Samsung Polaris controller
Cache：512MB
Max Sequential Read：Up to 3200 MBps
Max Sequential Write：Up to 1800 MBps
4KB Random Read：Up to 330,000 IOPS (4KB, QD32)
Up to 14,000 IOPS (4KB, QD1)
4KB Random Write：Up to 330,000 IOPS (4KB, QD32)
Up to 50,000 IOPS (4KB, QD1)
MTBF：1,500,000 hours
Features：TRIM Support: TRIM Supported
S.M.A.R.T Support: S.M.A.R.T Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit for User Data Encryption
Device Sleep Mode Support: 5mW (L1.2)
Power Consumption (Idle)：40mW
Power Consumption (Active)：5.4W
Operating Temperature：0°C ~ +70°C
Max Shock Resistance：1500G, duration 0.5 msec, 3 axis
Height：2.30mm
Width：22.10mm
Depth：80.01mm
Weight：9.00g
