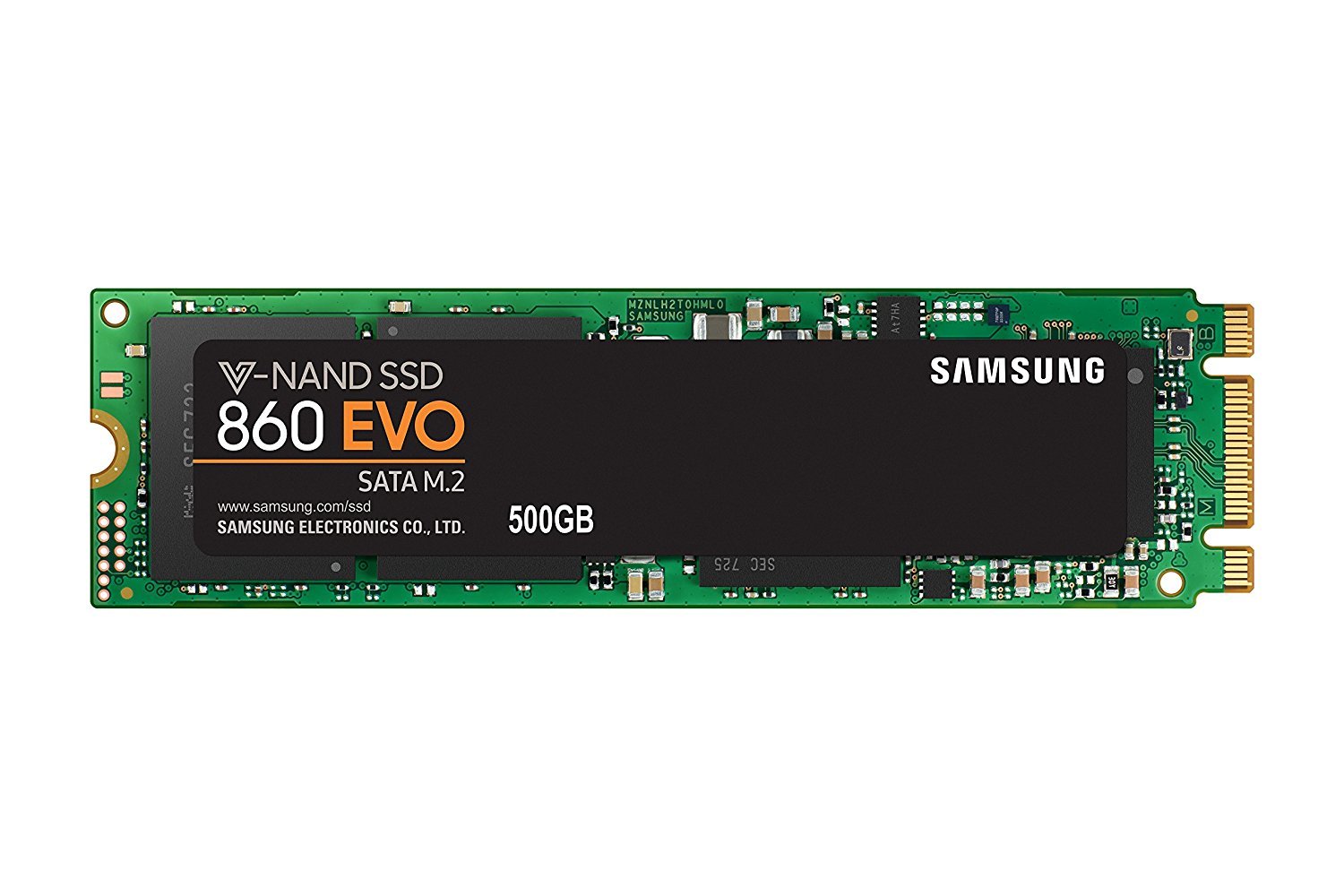

SAMSUNG 860 EVO Series M.2 2280 500GB SATA III 3D NAND Internal Solid State Drive (SSD) MZ-N6E500BW
- Model: jgbqec
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Samsung 860 EVO solid state drive is the SSD to trust. Based on 3D VNAND flash, Samsung offers enhanced read/write performance, endurance and power management efficiency.Samsung 860 EVO solid state drive is the SSD to trust. Based on 3D VNAND flash, Samsung offers enhanced read/write performance, endurance and power management efficiency. With multiple form factors, the 860 EVO is ideal for mainstream PCs and laptops.
- Series: SSD 860 EVO
- SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
- Capacity: 500 GB
- Up to 550 MB/s Sequential Read
- Up to 520 MB/s Sequential Write
- Random Read (4KB, QD32): Up to 97,000 IOPS Random Read
- Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
- Random Write (4KB, QD32): Up to 88,000 IOPS Random Write
- Random Write (4KB, QD1): Up to 42,000 IOPS Random Write
- Controller: Samsung MJX Controller
- NAND Type: Samsung V-NAND 3bit MLC
- Cache Memory: Samsung 512 MB Low Power DDR4 SDRAM
- Trim Support: Yes
- AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
- S.M.A.R.T. Support: Yes
- GC (Garbage Collection): Auto Garbage Collection Algorithm
- WWN Support: World Wide Name supported
- M.2 2280
- 500GB
- SATA III
Manufacturer：SAMSUNG
Classification：860 EVO Series
MPN：MZ-N6E500BW
Device Type：Internal Solid State Drive (SSD)
Used For：Consumer
Form Factor：M.2 2280
Size：500GB
Memory Components：3D NAND
Interface：SATA III
Controller：MJX
Cache：512MB LPDDR4
Max Sequential Read：Up to 550 MBps
Max Sequential Write：Up to 520 MBps
4KB Random Read：Random (QD1): Up to 10,000 IOPS; Random (QD32): Up to 97,000 IOPS
4KB Random Write：Random (QD1): Up to 42,000 IOPS; Random (QD32): Up to 88,000 IOPS
MTBF：1,500,000 hours
Features：1.TBW: 300TB 2.Data Security: AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive(IEEE1667) 3.Supporting Features: TRIM (Required OS support), Garbage Collection, S.M.A.R.T
Power Consumption (Idle)：50 mW
Power Consumption (Active)：2.5 W
Operating Temperature：0°C ~ +70°C
Storage Temperature：-45°C ~ +85°C
Operating Humidity：5% to 95% RH
Max Shock Resistance：1500G
Max Vibration Resistance：20G
Height：2.30mm
Width：22.00mm
Depth：80.00mm
Weight：80.00g
