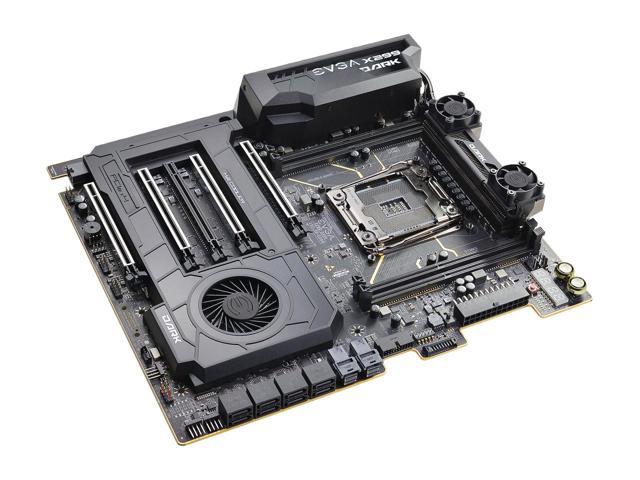

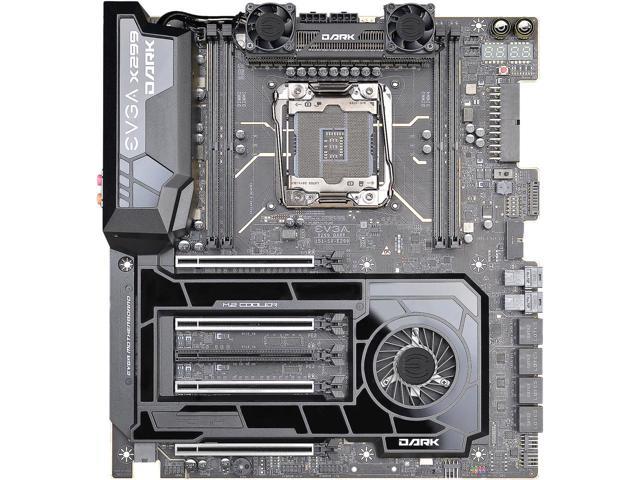

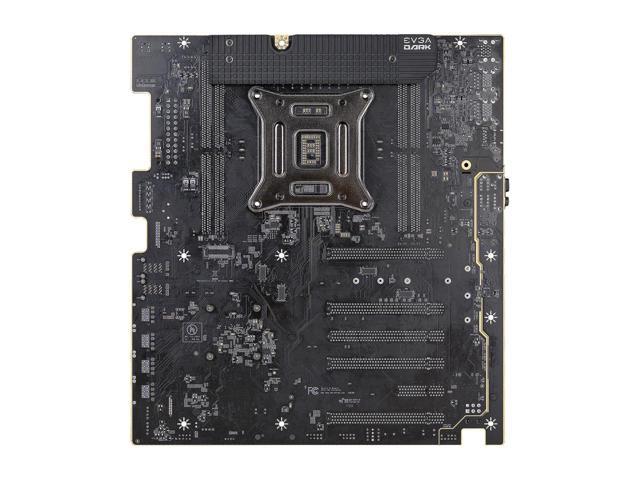

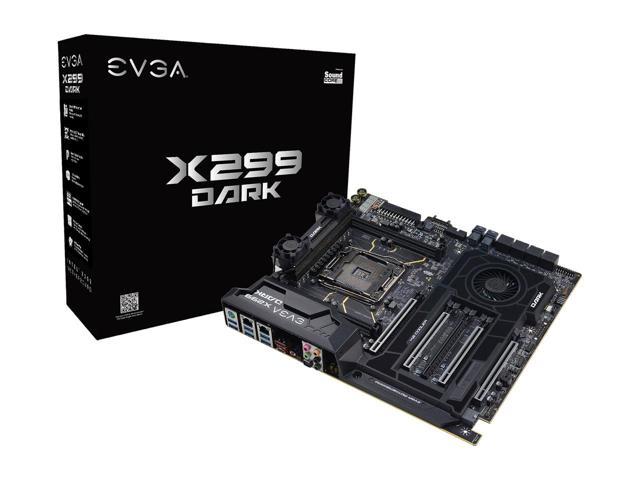

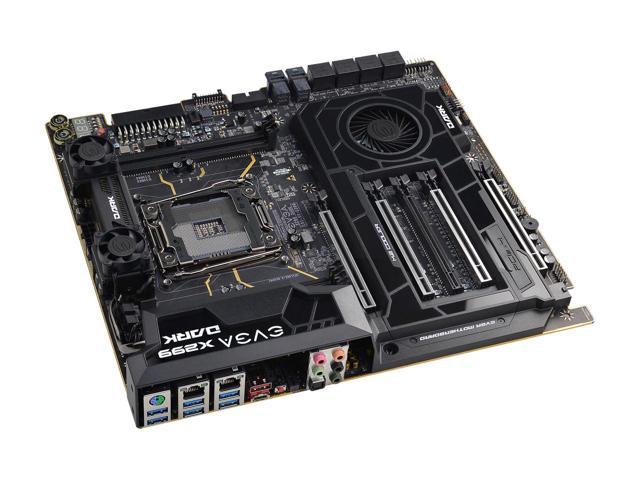

EVGA X299 DARK, 151-SX-E299-KR, LGA 2066, Intel X299, SATA 6Gbs, USB 3.1, USB 3.0, EATX, Intel Motherboard
- Model: rm401p
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Manufacturer：EVGA
MPN：151-SX-E299-KR
CPU Socket Type：LGA 2066
Processor Type：Core X series (LGA2066)
Chipset：Intel X299
Number of Memory Slots：4×288pin
Memory Standard：4 DIMM Quad-Channel (up to 64GB) DDR4 4000MHz+ OC (Skylake-X)
2 DIMM Dual-Channel (up to 32GB) DDR4 4133MHz+ OC (Kaby Lake-X)
Channel Supported：Quad Channel
PCI Express x16：5 x PCI Express x16
PCI Express x4：1 x PCI Express x4
Other Slots：1 x M.2 Key E 32mm
SATA 6Gb/s：6 x SATA 6Gb/s, Intel X299 PCH
2 x SATA 6Gb/s, ASMedia ASM1061
M.2：1 x M.2 Key-M 110mm slot PCIe/NVMe
1 x M.2 Key-M 80mm slot PCIe/NVMe and Intel Optane
2 x U.2 Port
Intel Optane Ready：Yes
SATA RAID：0/1/5/10
Audio Chipset：Creative Core3D Quad-Core Audio Processor (CA0132)
Audio Channels：Supports 5.1-Channel audio with Optical S/PDIF Out
LAN Chipset：Intel I219-V
Second LAN Chipset：Intel I210-AT
Max LAN Speed：Dual 10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
RJ45：2 x RJ45
USB 3.1：1 x USB 3.1 Type A / 1 x Type C
USB 3.0：6 x USB 3.0
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Onboard USB：2 x USB 3.0 + 4 x USB 2.0
Form Factor：Extended ATX
Dimensions (W x L)：12.0" x 10.9"
Power Pin：24 Pin
Features：100% Solid State Capacitors
13 Temperature and 24 Voltage Sensors
1 x M.2 Key E (32mm) + 2 x M.2 Key M (80mm, 110mm)
300% more gold content in the CPU socket
4-Way SLI Support
Advanced VRM Fansink with Heatpipe
CLEAR CMOS, Power and Reset
Creative Sound Core3D Audio with Output Amplifiers
Dual 8-Pin CPU Power
EVGA E-LEETX Tuning Support
EVGA Probe-It Connector
External Clock Gen.
Full Body Cover with Active PCH and M.2 Cooling
Highly-Efficient 16 Phase Power Design
Intel VROC Support
Legacy Windows Support, Including Windows XP
Onboard Power, Reset, and Clear CMOS
Onboard Temperature and Voltage Monitoring
Right-angle power, FAN, USB 3.0 headers
Triple BIOS Support
Windows 10 64-bit Support
Package Includes：ACCESSORIES:
EVGA Driver Installation Disc
Rear Case I/O Panel
Rear Case I/O Cover
ProbeIT adapter
Socket 20XX Backplate (optional)
2 x Thermal Pad for M.2 SSDs
Visual Guide / Bench Stand (incl standoffs and screws)
USB 2.0 Header Bracket
2 SATA 6G Data Cables
2 SATA 6G Data Cables
3-way SLI Bridge
Manual
