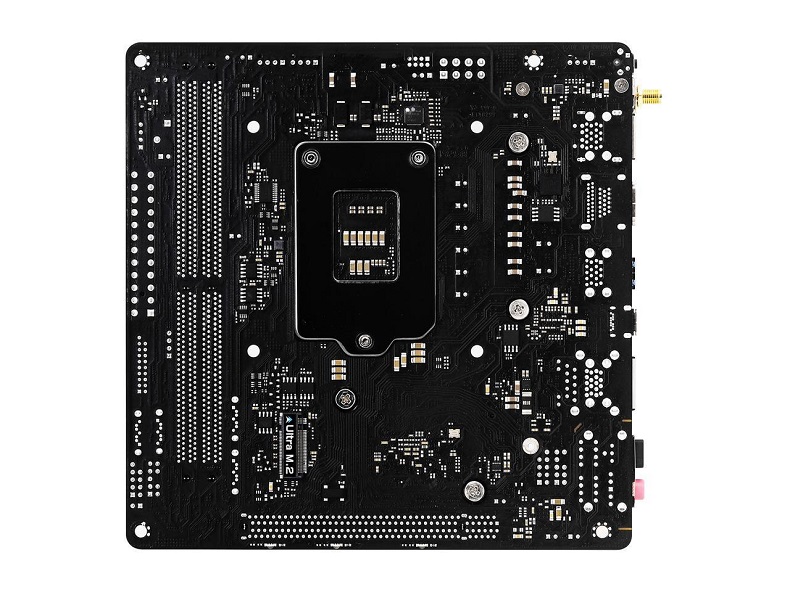

ASRock Z390 PHANTOM GAMING-ITX/AC LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

Experience the world's fastest connectivity with ASRock's Intel? Thunderbolt? ready motherboards. The Daisy-chain feature allows users to connect up to 6 Thunderbolt? devices with a single wire. The highly desirable reversible USB Type-C interface delivers breathtaking bandwidth and also supports USB PD 2.0 charging up to 12V@3A (36W). A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best. No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi! Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Supports Intel? Optane? memory technology and Intel? Optane? storage technology that redefines a new standard of high performance and responsiveness.

• 1 PCIe 3.0 x16
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster? Cinema 5
• 1 Intel Thunderbolt? 3 Type-C
• 4 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 4 USB 3.1 Gen2 10Gb/s (Rear)
• 4 USB 3.1 Gen1 (2 Front, 2 Rear)
• Intel Gigabit LAN
• Intel 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
• ASRock Polychrome SYNC

Brand：ASRock
Model：Z390 PHANTOM GAMING-ITX/ACCPU Socket Type：LGA 1151 (300 Series)
CPU Type：Supports 9th and 8th Gen Intel Core processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies：Turbo Boost Technology 2.0
Chipset：Intel Z390
Onboard Video Chipset：* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Three graphics output options: HDMI, DisplayPort 1.2 and Intel Thunderbolt 3
Supports Triple Monitor
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Intel Thunderbolt 3 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports HDCP with HDMI 2.0, DisplayPort 1.2 and Intel Thunderbolt 3
Supports 4K Ultra HD (UHD) playback with HDMI 2.0, DisplayPort 1.2 and Intel Thunderbolt 3
Number of Memory Slots：2×288pin
Memory Standard：DDR4 4500+(OC)*/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
* Supports PCIe riser cards to extend one x16 slot to two x8 slots
Other Slots：1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module and Intel CNVi (Integrated Wi-Fi/BT) (on the rear I/O)
15? Gold Contact in VGA PCIe Slot (PCIE1)
SATA 6Gb/s：4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
M.2 (Supports M Key, (M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s))：1 x Ultra M.2 Socket (M2_1), type 2280 **
1 x Ultra M.2 Socket (M2_2), type 2260/2280 **
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
SATA RAID：RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Intel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 1733 Mbps
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports MU-MIMO
Bluetooth：Supports Bluetooth 5.0 + High speed class II
PS/2：1 x PS/2 keyboard/mouse port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort：1 x DisplayPort 1.2
Thunderbolt Ports：1 x Intel Thunderbolt 3 (Compatible with USB 3.1 Gen2 and USB-C Display)*
* Supports USB PD 2.0 up to 12V@3A (36W) charging
USB 3.1：4 x USB 3.1 Gen2 Type-A Ports (10Gb/s)
2 x USB 3.1 Gen1 Ports
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Antenna Connectors：2 x Antenna Ports
Onboard USB：1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
Other Connectors：1 x Chassis Intrusion Header
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
1 x Chassis Fan Connector (4-pin)
* The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
1 x Front Panel Audio Connector (15? Gold Audio Connector)
Form Factor：Mini ITX
LED Lighting：RGB
Dimensions (W x L)：6.7" x 6.7"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
