ATEN CS22U 2-Port USB Cable KVM Switch
- Model: fto0u5
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

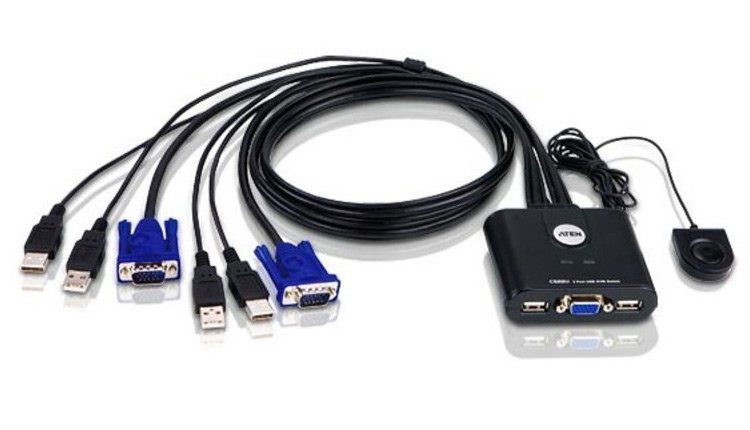

The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop. The CS22U's compact all-in-one design makes it ideal for multiplatform desktop applications that require high resolution video. 2 port KVM cables. 2 port KVM cables included max resolution of 2048X1536 ATEN 2-Port USB 2.0 Cable-Built-In KVM Switch with Remote Port Selector CS22U. ATEN 2-Port USB 2.
- One USB console controls two USB computers
- Supports multifunction mice
- Multiplatform support - Windows, Mac, Linux and Sun
- USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer Connections
- 2
- Port Selection
- Remote Port Selector
- Keyboard
- 1 x USB Type A Female (Black)
- Video
- 1 x HDB-15 Female (Blue)
- Mouse
- 1 x USB Type A Female (Black)
- Keyboard/Mouse
- 4 x USB Type A Male (Black)
- Video
- 2 x HDB-15 Male (Blue)
- Computers
- 0.9 m
- Remote Port Selector
- 1.8 m
- Video
- 2048 x 1536, DDC2B
- Operating Temp.
- 0-50°C
- Storage Temp.
- -20-60°C
- Humidity
- 0-80% RH, Non-condensing
- Housing
- Plastic
- Weight
- 0.31 kg
- Dimensions ( L x W x H )
- 7.01x8.24x2.46cm
Connections
Console Ports
KVM Ports
Cable Length
- 2 Ports Computer Connections
- 1 Port Monitor Connections
- Video Resolution 2048 x 1536
Manufacturer：ATEN
MPN：CS22U
Type：D-Sub, USB
PC Connectors：Keyboard / Mouse: 2 x USB A Male (Black)
Video: 2 x HDB-15 Male (Blue)
Console Connectors：Keyboard: 2 x USB A Famale (Black)
Mouse: 1 x USB A Famale (Black)
Video: 2 x HDB-15 Famale (Blue)
Computer Connections：2 Ports
Monitor Connections：1 Port
Video Resolution：2048 x 1536
Weight：0.85
