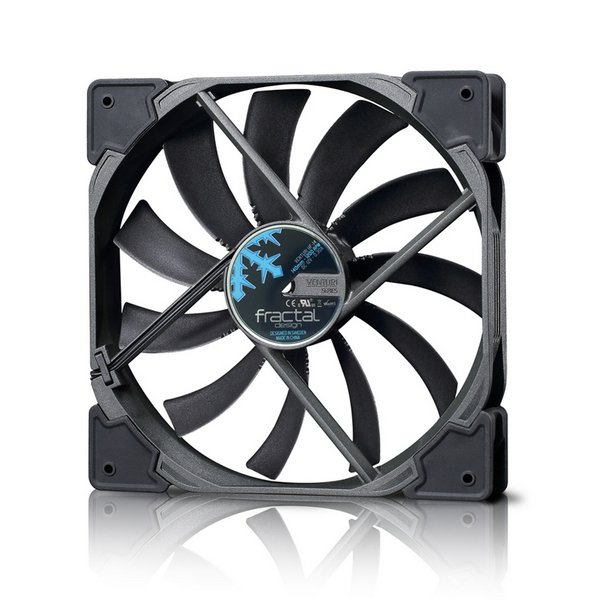

Fractal Design FD-FAN-VENT-HF14-BK Venturi HF-14 140 mm Cooling Fan

Ramp up your rig's cooling system with the Venturi HF-14 fans by Fractal Design. Optimised for low-restriction airflow setups, these fans are designed with an array of performance-boosting and noise-reducing issues. To ensure that the system produces as little noise a possible, the HF-14 comes with 2 sets of vibration-dampening rubber corners. If you are looking for a fan that has the perfect balance between performance and low noise, as well as a solid build quality, the Venturi HF-14 fans are an excellent choice. Venturi HF14 Fan Black. Venturi HF-14 Fan. Featuring true FDB-bearings, providing silent operation coupled with a long lifespan. Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing. Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplastic polymer with fan geometry that is optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios. Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant and therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts.

• Counter-balanced magnet reduces axial tension on the bearing
• Vibration dampening corners
• Made from sturdy high-grade glass-fiber-reinforced thermoplasticpolymer
• Fan geometry optimized for excellent airflow
• Aerodynamic thin stator struts reduce noise output
• Strategic blade notches diffuse noise from blade/stator interaction
• Trip Wire technology reduces blade turbulence
• Powerful motor reliably maintains stable speed
• Low-speed adapter included to reduce speed without need for a fan controller
• Available in 120mm and 140mm fan sizes

Manufacturer：Fractal Design
Classification：Venturi HF-14 140mm
MPN：FD-FAN-VENT-HF14-BK
Type：Case Fan
Bearing Type：Fluid Dynamic
RPM：1200
Air Flow：118.2 CFM
Noise Level：26.3 dB(A)
Power Connector：3 Pin
Color：Black Blades | Black Corners | Gunmetal Gray Frame
Features：Number of blades: 11
Static Pressure: 0.95 mm/H2O
Actual input power: 2.2W
Max rated input current: 0.3A
Nominal input voltage: 12V
Minimum startup voltage: 4V
Cable length: 500 mm
Cable type: Braided all-black ribbon wire
MTBF: 150,000 hours
Dimensions：140 x 140 x 25mm
