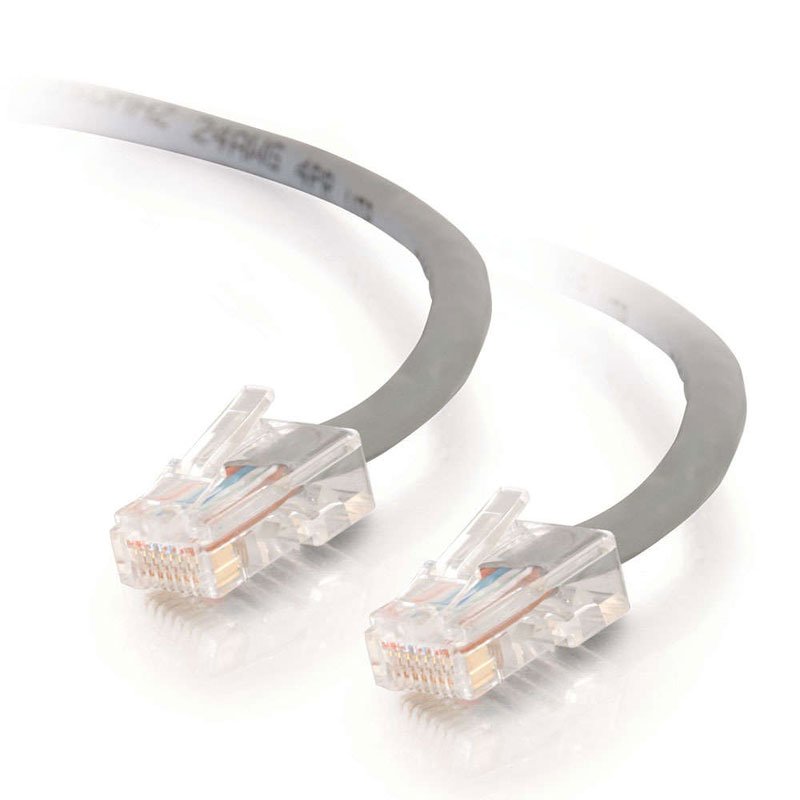

C2G 7 Foot Cat5E Patch Cable (Gray)
- Model: 67o42c
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Connect a computer with a DSL modem using this Cables to Go 22684 ethernet cable. This is a 7 foot gray ethernet cable that is compatible with all standard ethernet networks. It's a cat5e LAN cable which will work with a wide range of RJ45 devices. C2G 22684 7 ft. 350 MHz Assembled Patch Cable. For fast Ethernet computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code your network installation.
- Model Number
- 22684
- Cable Type
- Ethernet Cable
- Ethernet Standard
- Cat5e
- Length
- 7 foot
- Color
- Grey
Cables to Go Ethernet Cable
- Dielectric Strength
- 500MV/m
- Certification
- TIA/EIA
Electrical Characteristics
- Wiring Scheme
- TSB 568B (AT&T 258A)
- Approvals
- RoHS Compliant
- Warranty
- Lifetime
- Package Type
- Polybag
- Jacket
- PVC
Physical Characteristics
- Conductor Type
- 24AWG (7/0.20), Stranded Bare Copper
- Insulation
- H-D PE
- Diameter
- 0.95 +/- 0.02mm
- Colour
- Grey
Conductor
- Connector Type
- 8P8C (RJ45)
- Gender
- Male
- Connector Material
- Polycarbonate
- Contact Material
- Copper Alloy, Gold Plating - 50um
Connector Type
- Jacket
- FR-PVC
- Minimum Average Thickness
- 0.55mm
- Outer Diameter
- 5.30 +/- 0.15mm
Overall Cable
- Gray
- Cat 5E
Manufacturer：C2G
MPN：22684
Type：others
Cat：5E
Connector A：RJ45 Male
Length：7 ft.
Color：Gray
Features：For voice/data/video distribution, this cable will handle bandwidth-intensive applications up to 350MHz.
Meets all Cat5E TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL) when compared to standard 100MHz wire.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point.
Constructed from high-quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.
Electrical Outlet Plug Type：Plug Type "A" (USA, Canada, Mexico, Japan)
