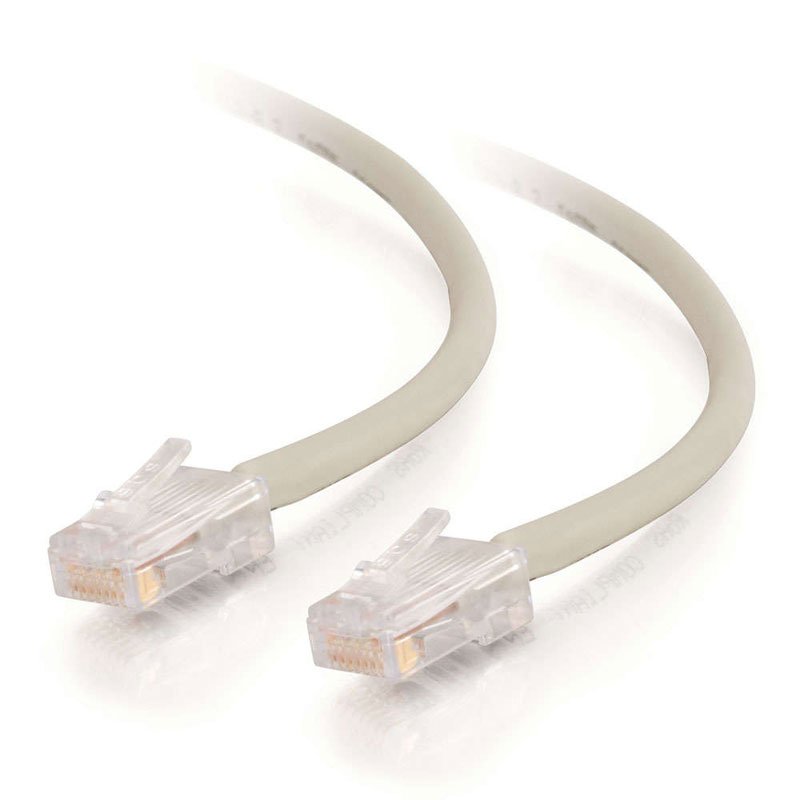

C2G 10 Foot Cat5E Patch Cable (Grey)

Use the Cables to Go 22690 ten food cat5e ethernet cable to connect your computer, router, gaming console or other device to the internet. This LAN network cable is 10 feet long, grey and awesome. C2G 22690 10 ft. 350 MHz Assembled Patch Cable.For voice/data/video distribution, this cable will handle bandwidth-intensive applications. Meets all Cat5E TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation. Uses: 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN, 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM, Voice Connector 1: (1) RJ-45 Male and Connector 2: (1) RJ-45 Male

• Cables to Go 22690
• Length: 10 feet
• Type: Cat5e Patch
• Color: Grey

• Electrical Characteristics
• Conductor DC Resistance - 89Ω/km (maximum)
• Insulation Resistance - 100Ω/km (maximum)
• Dielectric Strength - 500MV/m
• Certification: TIA/EIA

• Physical Characteristics
• Wiring Scheme - TSB 568B (AT&T 258A)
• Approvals - RoHS Compliant
• Warranty - Lifetime
• Package Type - Polybag
• Jacket: PVC

• Conductor
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.95 +/- 0.02mm
• Colours - Grey

• Connector Type
  • Connector Type - 8P8C (RJ45)
  • Gender - Male
  • Connector Material - Polycarbonate
  • Contact Material - Copper Alloy, Gold Plating - 50um

• Overall Cable
  • Jacket - FR-PVC
  • Minimum Average Thickness - 0.55mm
  • Outer Diameter - 5.30 +/- 0.15mm

• Gray
• Cat 5E

Manufacturer：C2G
MPN：22690
Type：Network Cable
Cat：5E
Connector A：RJ45 Male
Length：10 ft.
Color：Gray
Features：For voice/data/video distribution, this cable will handle bandwidth-intensive applications up to 350MHz.

Meets all Cat5E TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL) when compared to standard 100MHz wire.

Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point.

Constructed from high-quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.
Electrical Outlet Plug Type：Plug Type "A" (USA, Canada, Mexico, Japan)
