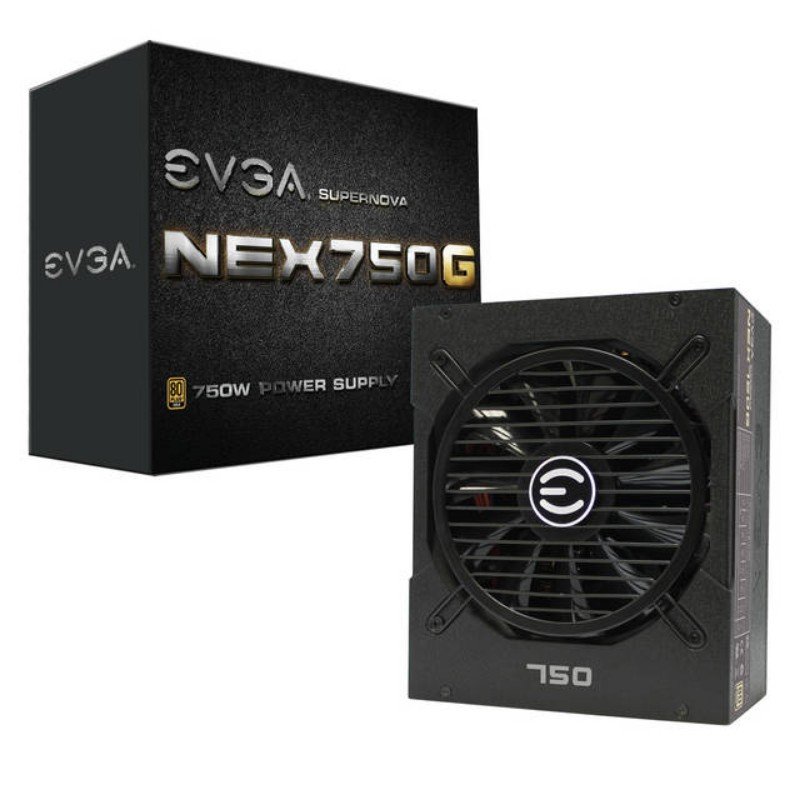

EVGA 120-G1-0750-XR SuperNOVA 750G1 80+ Gold 750W ATX12V Power Supply
- Model: qnqutm
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode) The EVGA SuperNOVA 750 and 650 Power Supplies are here in both Gold and Bronze rated options. Designed with enthusiast needs in mind the SuperNOVA series are the best choice to power next generation enthusiast computers. Combining 750W or 650W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the SuperNOVA series power supplies are what you need to take your system to the next level. NOTE: For power supplies purchased in Europe, a European style power cable will be provided.
- Fully Modular to reduce clutter and improve airflow
- 80 PLUS Gold certified, with up to 90% efficiency under typical loads
- Highest quality Japanese brand capacitors ensure long-term reliability

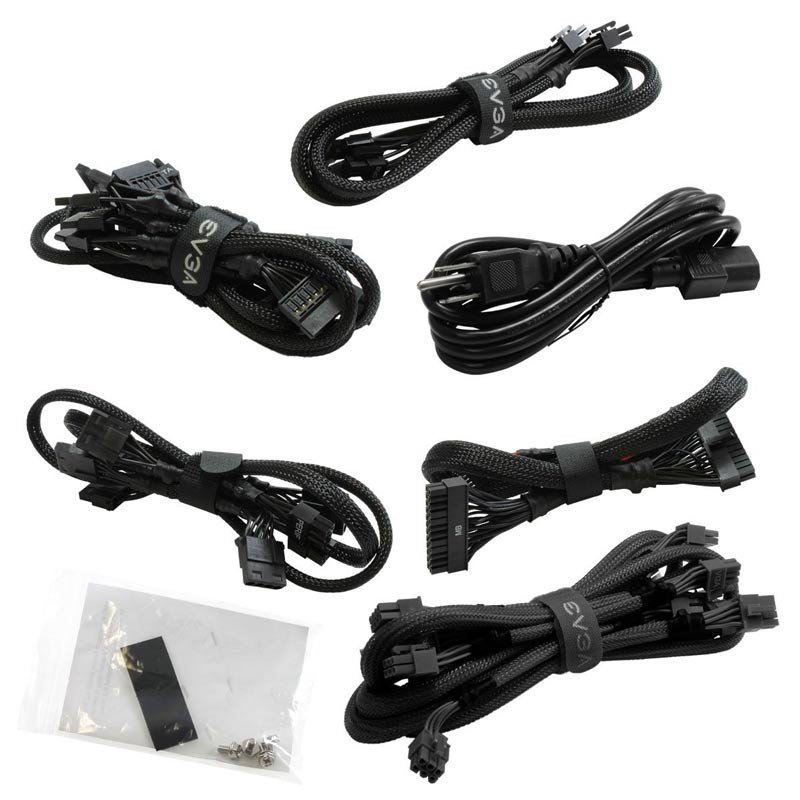

- ATX CABLE
- 1x 600mm (m)
- EPS CABLE
- 2x 600mm (m)
- PCIE CABLE
- 4x 600mm
- SATA CABLE
- 1x 450mm, 550mm, 650mm (m), 2x 550mm, 650mm, 750mm (m)
- FOUR-PIN PERIPHERAL CABLE
- 1x 550mm, 650mm, 750mm (m), 1x 500mm, 650mm, 750mm +850mm (Floppy)

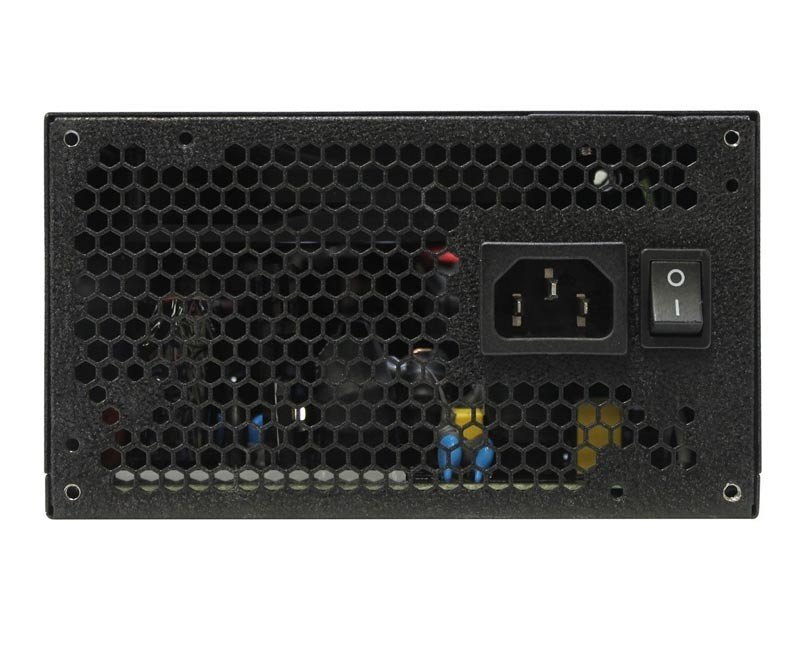

- AC POWER
- 1x 1800mm (m)

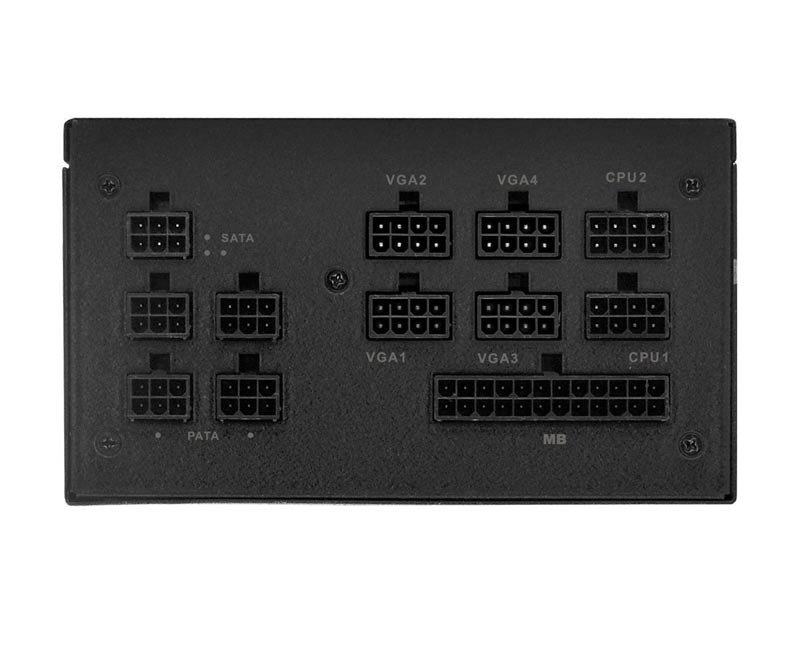

- MODULAR CABLE TYPE
- Full
- 24 PIN ATX
- 1x
- EPS (CPU)
- 2x 8pin (4+4)
- PCIE
- 4x 8pin (6+2)
- SATA
- 9x
- FOUR-PIN PERIPHERAL
- 6x
- FLOPPY
- 1x
- OPERATING TEMPERATURE
- 0°to 50°C
- JAPANESE CAPACITORS
- Main PCB
- ECO MODE
- No
- MTBF
- 100,000 Hours
- NET WEIGHT
- 8 lbs
- SIZE
- 85mm (H) x 150mm (W) x 180mm (L)
- APPROVALS
- TUV, cUL, UL, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
- FAN SIZE / BEARING
- 135mm Double Ball Bearing
CABLE LENGTH
CONNECTOR QUANTITY
ADDITIONAL DETAILS
- ATX12V / EPS12V
- 80+ Gold Certified
- Full Modular
- SLI Ready/ CrossFire Ready/ Intel 4th Gen CPU certified
Manufacturer：EVGA
MPN：120-G1-0750-XR
Type：ATX12V / EPS12V
Maximum Power：750W
Fans：1 x 135mm Double Ball Bearing fan
PFC：Active
Main Connector：24Pin
PCI-Express Connector：4 x 6+2-Pin
SATA Power Connector：9
SLI：SLI Ready
CrossFire：CrossFire Ready
Modular：Full Modular
Efficiency：90% Typical
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：10 - 5A
Output：+3.3V@25A, +5V@25A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A, +5Vsb@3A, -12V@0.8A
MTBF：100,000 Hours
Approvals：TUV, cUL, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Dimensions：3.35" x 5.91" x 7.09"
Weight：6.00 lbs.
Connectors：1 x 24-Pin ATX
2 x 8-Pin (4+4) EPS (CPU)
4 x 8-Pin (6+2) PCIE
9 x SATA
6 x 4-Pin Peripheral
1 x Floppy
Features：80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC - 240VAC) efficiency or higher under typical loads
Highest quality Japanese brand capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
Protection: OVP, UVP, OCP, OPP, SCP, OTP
