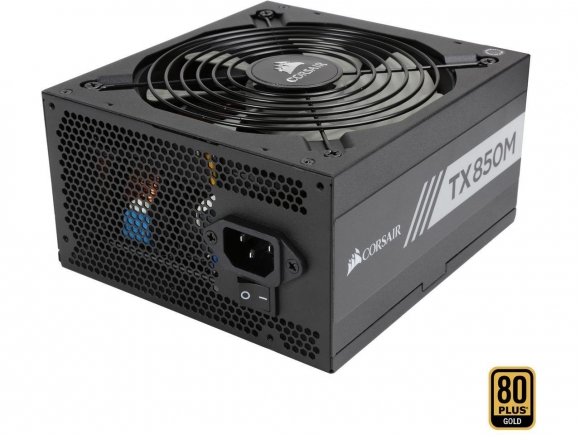

CORSAIR TX-M Series CP-9020130-NA 850W ATX12V v2.4 / EPS 2.92 80 PLUS GOLD Semi-Modular Power Supply
- Model: fetr3u
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
TX Series semi-modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. All of the capacitors are 105°C rated, Japanese brand, to ensure solid power delivery and long term reliability. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results.
- Weight 1.78kg
- MTBF 100,000 hours
- 80 PLUS Certification Level Gold
- Power 850 Watts
- Zero RPM Fan Mode No
- Fan Bearing Technology Rifle Bearing
- Fan size 140mm
- Corsair Link Support No
- Continuous Output Rated Temperature (°C) 50°C
- Dimensions 160mm x 86mm x 150mm
- Modular Semi-Modular
- Cable Type Low-Profile, All Black
- ATX Connector 1
- EPS Connector 1
- Floppy Connector 2
- 4-Pin Peripheral Connector 8
- PCIe Connector 4
- SATA Connector 8
- Plug Type NA
- 50°C operating temperature
- 80 Plus Gold efficiency
- Semi-modular
- 7-year warranty
- 140mm rifle bearing fan
- All Japanese capacitors
Manufacturer：CORSAIR
MPN：CP-9020130-NA
Classification：TX-M Series
Type：ATX12V v2.4 / EPS 2.92
Maximum Power：850W
Fans：1 x 140mm rifle bearing fan
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：4 x 6+2-Pin
Haswell Support：Yes
Modular：Semi-Modular
Energy-Efficient：80 PLUS GOLD Certified
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：12 - 6 A
Output：+3.3V@25A, +5V@25A, +12V@70.8A, -12V@0.8A, +5TX-MB@3A
Approvals：FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
Dimensions：3.39" x 6.30" x 5.91"
Weight：3.92 lbs.
Connectors：1 x 24-pin ATX
1 x EPS12V/ATX12V Cable (4+4)
2 x 2 x PCIe Cable (6+2)
2 x 4 x SATA Cable (4 Connectors)
2 x 4 x PATA Cable (4 connectors)
Features：50 degree C Operating Temperature: Can output full power even at very high ambient temperatures
80 Plus Gold: Runs cooler and uses less power than less efficient power supplies
Semi-Modular: Allows user to only use the cables they need for a cleaner looking build with better airflow
120mm Rifle Bearing Fan: Quieter than ball bearing but longer life than sleeve bearing
All Japanese Capacitors: Unparalleled reliability, even at higher operating temperatures
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components
