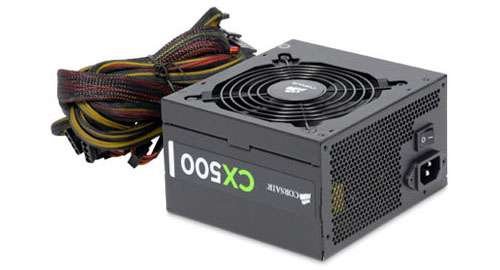

Corsair CX500 Builder Series ATX 500w Power Supply
- Model: 56flm3
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
The Corsair CMPSU -500CXV2 Buider Series power supply is a great replacement for any power supply. With no shortage of cables or power, the Corsair CX500 power supply fits easily into micro-atx cases and runs very quiet.The Corsair Builder Series of PSUs are designed for worry-free compatibility for your home desktop PC system build or upgrade. with features usually reserved for premium power supplies, it's a great choice for systems where continuous and reliable power delivery and low noise are essential.
- Quiet Operation
- An ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
- Efficient Power for your PC
- 80 Plus certified to deliver 80% efficiency or higher at normal load conditions (20% to 100% load)
- 0.99 Active Power Factor Correction provides clean and reliable power.
- High-end Component Support
- A dedicated single +12V rail offers maximum compatibility with the latest components.
- Over-voltage,over-power protection,under-voltage protection,short circuit protection provide maximum safety to your critical system components.
Corsair CMPSU-500CXV2
- Form Factor
- ATX
- Wattage
- 500W
- Special Features
- Active PFC
- Energy Efficiency
- 80 PLUS
- Fan
- 120 mm
- Input Voltage
- 90V ~ 264V
- +3.3V
- 25 A
- +5V
- 20 A
- +12V 1
- 34 A
- +12V Rails
- 1
- -12V
- 0.8 A
- +5VSB
- 3 A
- MTBF
- 100,000 Hours
Power Supply Specifications
- Motherboard Connector
- 20+4 Pin
- 4-Pin Floppy Connector
- 1
- 4-Pin Peripheral Connector
- 4
- SATA Power Connector
- 5
Connector Specifications
- ATX12V v2.3
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@25A, +5V@20A, +12V@38A, -12V@0.8A, +5VSB@3.0A
- ATX12V & EPS12V Power Supply
- 80 Plus Bronze ErP Lot 6
Manufacturer：CORSAIR
MPN：CX500 (CP-9020047-NA)
Classification：CX series
Type：ATX12V v2.31 / EPS12V v2.92
Maximum Power：500W
Fans：1 x 120mm Ultra-quiet Fan (Sleeve Bearing)
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
Modular：Non-Modular
Hold-up Time：10ms (at 80% load)
Efficiency：> 80%
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：10 - 5A
Output：+3.3V @ 25A, +5V @ 20A, +12V @ 38A, -12V @ 0.8A, +5VSB @ 3.0A
MTBF：100,000 Hours
Approvals：UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick
Dimensions：3.39" x 5.51" x 5.91"
Weight：4.55 lbs.
Connectors：1 x 20+4-Pin Main connector
1 x 4+4-Pin EPS 12V
2 x 6+2-pin PCI-E
5 x SATA
4 x Peripheral
1 x Floppy
Features：Ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
80 PLUS Bronze certified.
0.99 Active Power Factor Correction provides clean and reliable power.
Complies with ErP Lot 6 European Union standard for low standby power consumption.
Universal AC input from 90 - 264V - No more hassle of flipping that tiny red switch to select the voltage input
Extra long fully-sleeved cables support full tower chassis.
Dedicated single +12V rail offers maximum compatibility with the latest components.
Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
Supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
