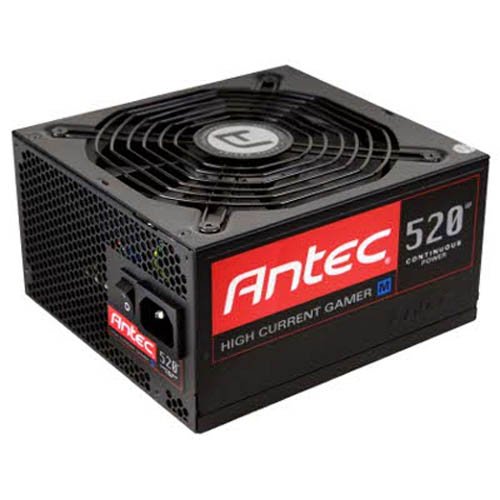

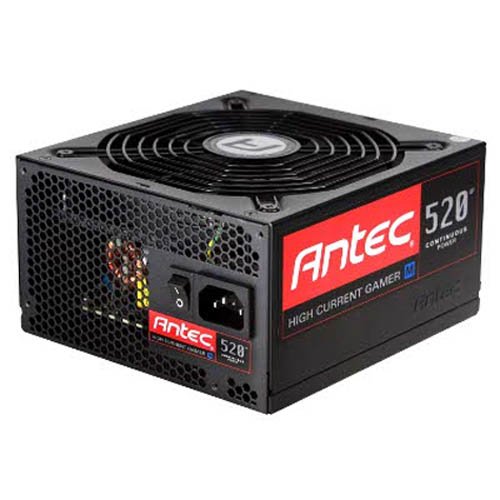

Antec 520M 520 Watt ATX Power Supply
- Model: 6m84bi
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Need a power supply? Want to add a few new parts to your computer? Then pick up an Anter 520W power supply and solve all your problems. With 80 PLUS Bronze certification and Active PFC, the Antec Power Supply is a top-notch solid product for any compatible system. 520W Power Supply. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing fan complete the package. The HCG-520M features High Current Cable Management and 10-pin modular connectors.
- Quiet Operation
- Ultra quiet 135mm DBB fan for noise reduction
- Power Compatibility
- Four 10-pin modular connectors!
Antec HCG-520W
- 520 watts of Continuous Power
- 80 PLUS Bronze certified
- up to 87% efficient
- High Current Hybrid Cable Management
- special 10-pin and 5-pin modular connectors for High Current rail
- Quiet 135 mm Double Ball Bearing cooling fan
- Stealth Wires
- all wires darkened for minimal visibility in chassis
- All Japanese brand capacitors for reliability
- Thermal Manager
- ATX12V / EPS12V
- Modular
- 80 PLUS BRONZE Certified
- 100 - 240 VAC ±10% 50/60 Hz
- +5V@24A, +3.3V@24A, +12V@40A, -12V@0.8A, +5VSB@2.5A
Features
Manufacturer：Antec
MPN：HCG-520M
Classification：HCG M Series
Type：ATX12V / EPS12V
Maximum Power：520W
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
SLI：SLI Ready
Haswell Support：Yes
CrossFire：CrossFire Ready
Modular：Modular
Efficiency：Up to 87%
Energy-Efficient：80 PLUS BRONZE Certified
Input Voltage：100 - 240 VAC ±10%
Input Frequency Range：50/60 Hz
Input Current：8 - 4A
Output：+5V@24A, +3.3V@24A, +12V@40A, -12V@0.8A, +5VSB@2.5A
MTBF：>100,000 Hours
Approvals：UL, cUL, CE, TUV, CB, FCC, GOST-R, CCC, C-Tick, BSMI
Dimensions：3.4" x 5.9" x 6.3"
Weight：4.0 lbs.
Connectors：1 x 20+4-pin Main Connector
1 x 4+4-pin TX12V / EPS12V Connector
2 x 6+2-pin PCI-E
5 x SATA
4 x Molex
1 x Floppy
Features：High Current Hybrid Cable Management - special 10-pin and 5-pin modular connectors for High Current rail
Quiet 135 mm Double Ball Bearing cooling fan
Stealth Wires All wires darkened for minimal visibility in chassis
All Japanese brand capacitors for reliability
Thermal Manager, an advanced low voltage fan control for optimal heat & noise management
Up to 90% power available on +12V rail
ATX12V version 2.32 and EPS12V version 2.92 compliant
Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Surge & Inrush Protection (SIP)
