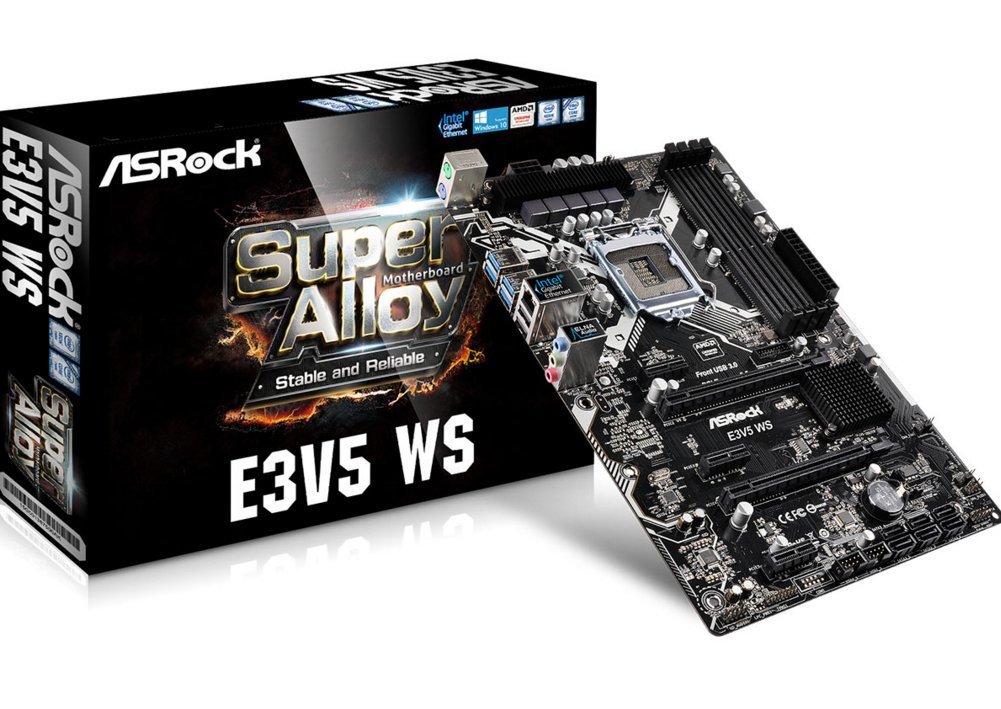

ASRock E3V5 WS LGA 1151 Intel C232 SATA 6Gb/s USB 3.0 ATX Intel Motherboard

The ASRock E5V5 WS features an LGA 1151 socket for compatibility with Skylake and Skylake-S based chips. This board is powered by the Intel C232 chipset which allows for DDR4 DIMMs / ECC UDIMM memory modules with maximum supports speeds of 2133 MHz and total memory of 64GB.ASRock E3V5 WS LGA1151/ Intel C232/ DDR4/ Quad CrossFireX/ SATA3&USB3.0/ A&GbE/ ATX Motherboard

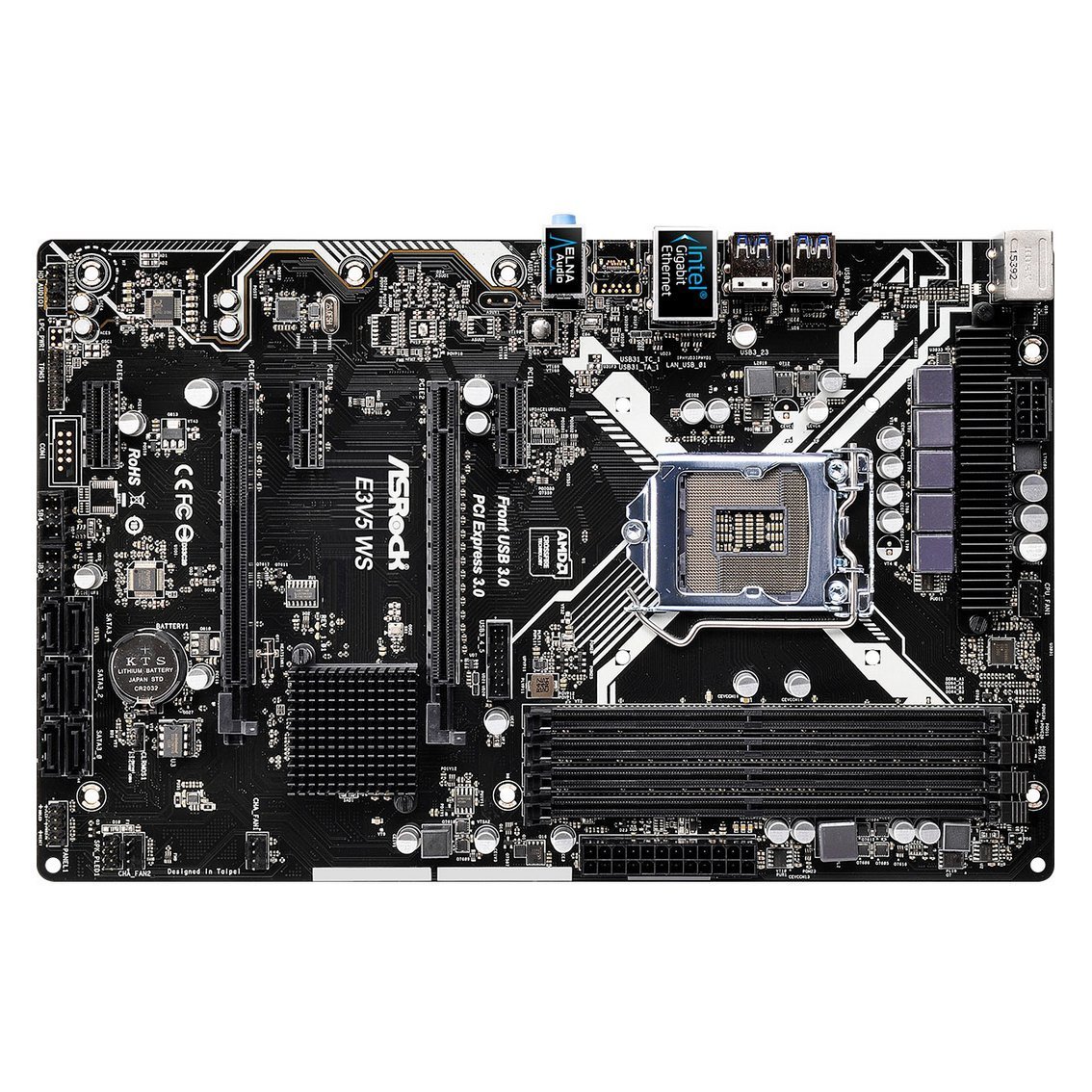

The ASRock E3V5 WS motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel C232 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / White design.

• Server-Grade LAN chip support
• Microsoft? Windows? 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit / Server 2012 R2 64-bit / Server 2012 64-bit / Server 2008 R2 64-bit support
• ASRock Super Alloy
• Supports the Intel? Xeon? E3-1200 v5 Processor and 7th and 6th Generation Intel? Core? Processors (Socket 1151)
• Supports DDR4 2133 & ECC UDIMM memory modules
• 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
• Supports AMD Quad CrossFireX?
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 6 x SATA III
• 6 USB 3.1 Gen1 (2 Front, 4 Rear)

• Intel C232
• Intel Xeon E3-1200 v5 and Core i7 / i5 / i3 / Pentium / Celeron (LGA 1151)
• DDR4 2133

Manufacturer：ASRock
MPN：E3V5 WS
CPU Socket Type：LGA 1151
Processor Type：Intel Xeon E3-1200 v5 and Core i7 / i5 / i3 / Pentium / Celeron (LGA 1151)
Supported CPU Technologies：Turbo Boost Technology 2.0
* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel C232
Onboard Video Chipset：None
Number of Memory Slots：4×288pin
Memory Standard：DDR4 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode) *
* Supports NVMe SSD as boot disks
PCI Express x1：3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
SATA 6Gb/s：6 x SATA 6Gb/s
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-LM
Max LAN Speed：10/100/1000Mbps

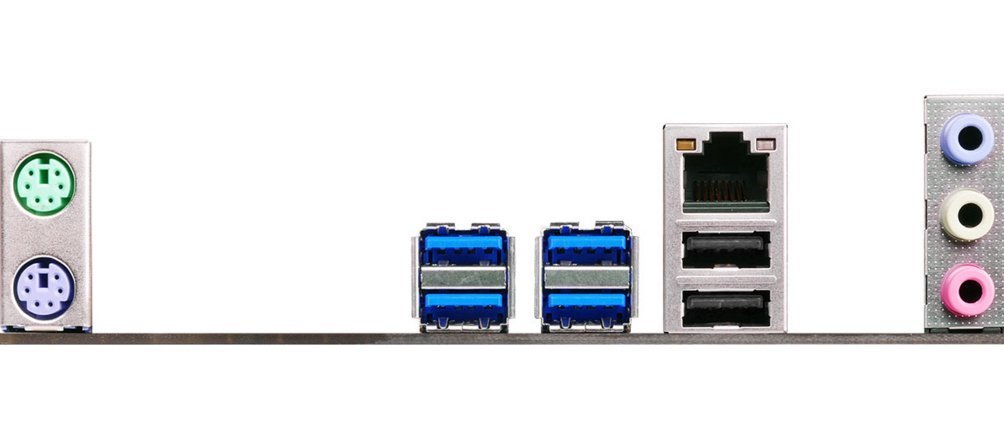

PS/2：1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.0：4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.0：2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors：1 x TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
1 x Front Panel Audio Connector

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Power Pin：24 Pin
Features：Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

BIOS
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment

Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*
* These utilities can be downloaded from ASRock Live Update & APP Shop.

UEFI
- ASRock EZ Mode
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit / Server 2012 R2 64-bit / Server 2012 64-bit / Server 2008 R2 64-bit*
* To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details.

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Package Includes：Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
