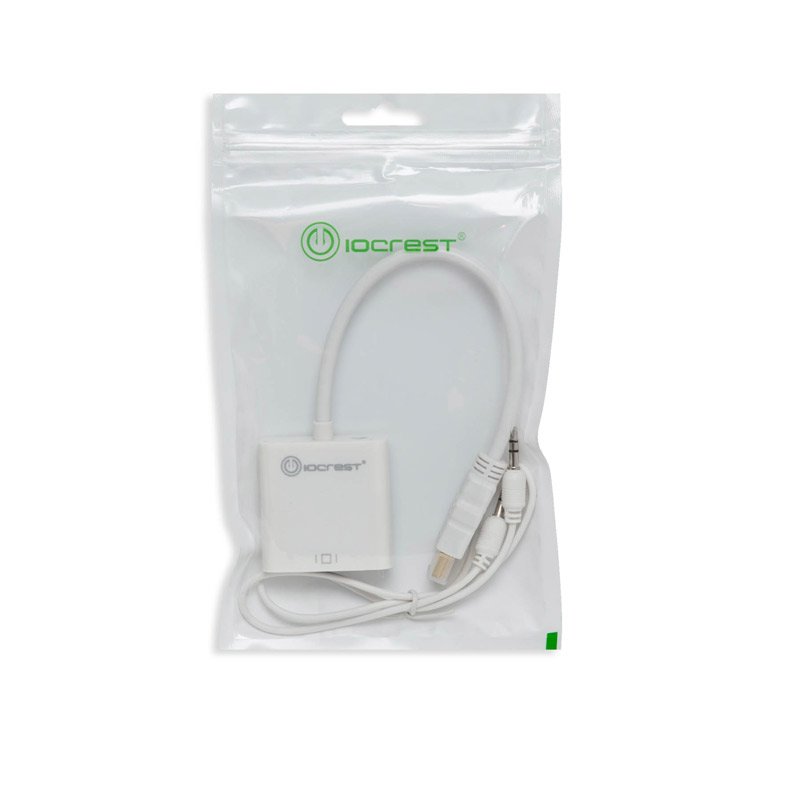

Syba SY-ADA31044 IO Crest HDMI to VGA Adapter, with Audio Support

HDMI 1.4 to VGA Adapter, with Audio Support, USB Powered, White Color. This HDMI to VGA adapter connects your devices to VGA displays. This is a low power semiconductor that consists of an HDMI receiver, three separate 9-bit video Digital-to-Analog Converters (DAC) and audio encoder, which can convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with audio output. This makes to product very feasible to use. SYBA IO Crest HDMI to VGA Adapter with Audio Support Syba SY-ADA31044 HDMI 1.

• Supports HDMI Standard Norm
• Compiant with HDMI 1.4
• Analog RGB output for VGA with Triple 9-bit DAC up to 200 MHz pixel rate
• On-chip encorder supports channel IIS/S/PDIF audio output
• Integrated EDID buffer
• VGA/HDMI connection detection supported
• Supports Auto Power Saving mode and low stand-by current
• Supports Audio via Jack Stereo Cable
• Plug and Play, Driverless Installation
• Device is 10.3" long (Cable is 6.5")
• Audio Cable is 18.4" long

Manufacturer：SYBA
MPN：SY-ADA31044
Type：HDMI to VGA
Color：White
Specifications：Supports HDMI Standard Norm

Complaint with HDMI 1.4 specification

Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.

Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz.

On-chip encoder supports 2 channel IIS/S/PDIF audio output

Integrated EDID buffer

VGA/HDMI connection detection supported

Supports Auto Power Saving mode and low stand-by current

Supports Audio via Jack Stereo Cable

Plug and Play, Driverless Installation

Device is 10.3in Long (Cable is 6.5in)

Audio Cable is 18.4in Long
Connector A：1x VGA female
Connector B：1x HDMI 19pin male
Audio：Yes
Features：This HDMI to VGA adapter connects your devices to large VGA displays. This allows you to increase the workspace area of smaller devices. This is a low power semiconductor that consists of an HDMI receiver, three separate 9-bit video Digital-to-Analog Converters(DAC) and audio encoder, which can convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS or SPDIF audio output. The HDMI receiver is compliant with HDMI1.4b. The DACs are based on current source architecture, and the VGA output meets VESA VSIS v1r2 clock jitter target.
Weight：0.22
Package Includes：1 x HDMI to VGA Adapter

1 x Male to Male Audio Jack
