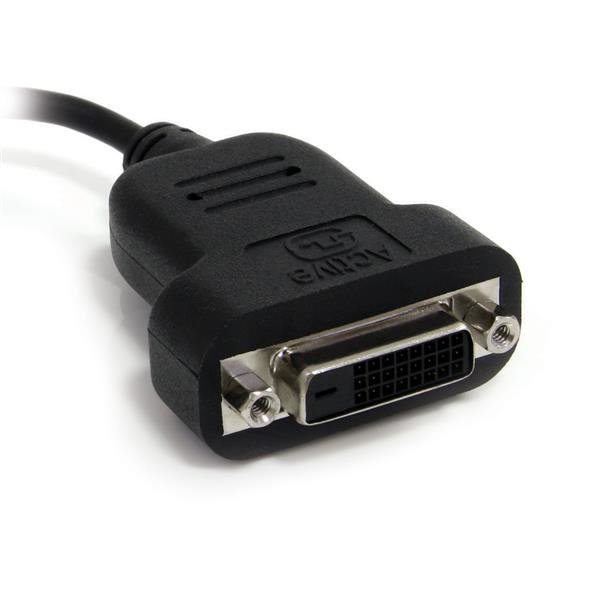

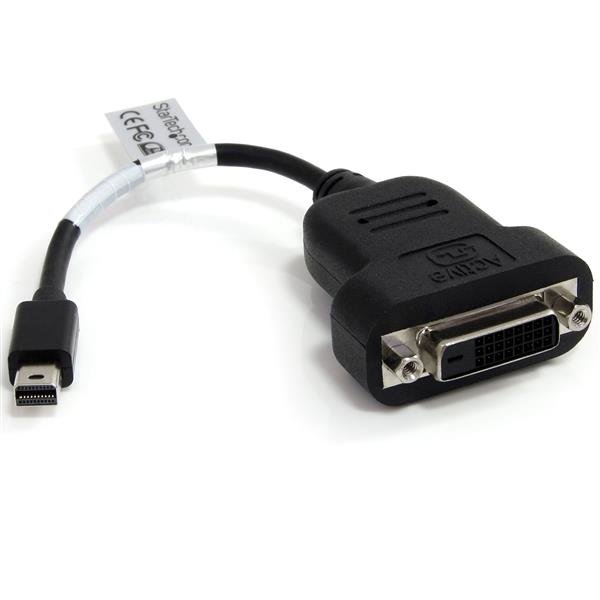

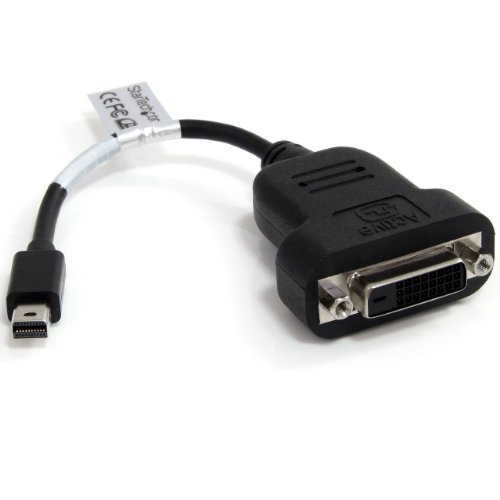

Startech.com MDP2DVIS Mini DisplayPort to DVI Active Adapter

Startech.com MDP2DVIS Mini DisplayPort to DVI. Mini DisplayPort to DVI Active Adapter. The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) lets you connect your Mini-DisplayPort video source to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Mini DisplayPort to DVI. Connect a DVI monitor to a singlemode DisplayPort output from your computer Compatible with Mini DisplayPort (SingleLink) equipped desktops or graphic cards such as Alienware M17x M18x SingleLink Active Conversion DHCP 1.

• This Mini DisplayPort to DVI adapter offers active signal conversion, which helps overcome the limitation of some Mini DisplayPort video cards not being able to output a DP++ (multimode) signal
• Simple to use, small form-factor converter makes Mini-DisplayPort backwards compatible with your DVI-D single link display

• Color: Black
• Product Height: 0.8 in [20 mm]
• Product Length: 7.9 in [200 mm]
• Product Weight: 2.5 oz [70 g]
• Product Width: 1.7 in [44 mm]
• Adapter Style: Adapter
• Audio: No
• Converter Type: Active
• Fire Rating LSZH Rated (Low Smoke Zero Halogen)
• Industry Standards HDCP 1.3DisplayPort 1.1 DDWG 1.0
• Output Signal: DVI-D (DVI Digital)
• Maximum Digital Resolution: 1920x1200
• Wide Screen Supported: Yes
• Connector A 1 - Mini-DisplayPort (20 pin) Male
• Connector B 1 - DVI-D (25 pin) Female
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: 0°C to 70°C (32°F to 158°F)

• Connect a DVI monitor to a single-mode DisplayPort output from your computer
• Compatible with Mini DisplayPort (Single-Link) equipped desktops or graphic cards such as Alienware M17x / M18x
• Supports Resolutions up to 1920 x 1200
• Active Conversion
• DHCP 1.3 / ATI Eyefinity / AMD Eyefinity / Comparable to 332-2272 / Mini DisplayPort to DVI / Mini Display Port to DVI Converter / MDP to DVI / Mini DP to DVI-D / DVI Active Adapter / MDP to Graphics Card / Mini Display Port to Monitor

Manufacturer：StarTech
MPN：MDP2DVIS
Type：Mini DP to DVI
Changer Type：Mini DisplayPort to DVI
Color：Black
Specifications：Color: Black

Connector A: 1 - Mini-DisplayPort (20 pin) Male
Connector B: 1 - DVI-D (25 pin) Female

Fire Rating: LSZH Rated (Low Smoke Zero Halogen)

Industry Standards: HDCP 1.3, DisplayPort 1.1, DDWG 1.0

Maximum Digital Resolutions: 1920x1200

Wide Screen Supported: Yes

Output Signal: DVI-D (DVI Digital)

Audio: No

Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: 0°C to 70°C (32°F to 158°F)
Connector A：1x DVI-D female
Connector B：1x Mini DisplayPort male
Features：Works with video cards that aren't capable of outputting DP++ (multi-mode) signals

Supports display resolutions up to 1920x1200

Supports HDCP 1.3

Compliant with DisplayPort 1.1a specifications

Compatible with Intel Thunderbolt

Connect a DVI monitor to a single-mode DisplayPort output from your computer

Compatible with Mini DisplayPort (Single-Link) equipped desktops or graphic cards such as Alienware M17x / M18x

Single-Link / Active Conversion / DHCP 1.3 / ATI Eyefinity / AMD Eyefinity

Supports Resolutions up to 1920x1200

Mini DisplayPort to DVI / Mini Display Port to DVI Converter / MDP to DVI / Mini DP to DVI-D / DVI Active Adapter

Mini DP to Monitor / MDP to Graphics Card / Mini Display Port to Monitor
Weight：0.05
