Startech.com DP2DVIS DisplayPort DVI Active Adapter
- Model: yk70hb
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

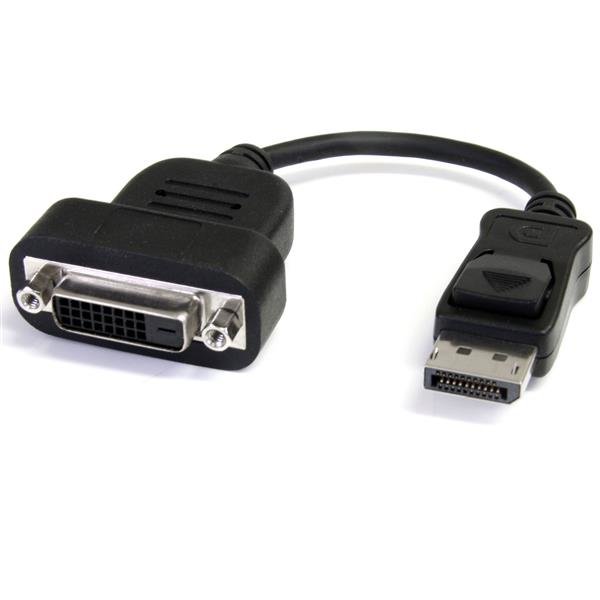

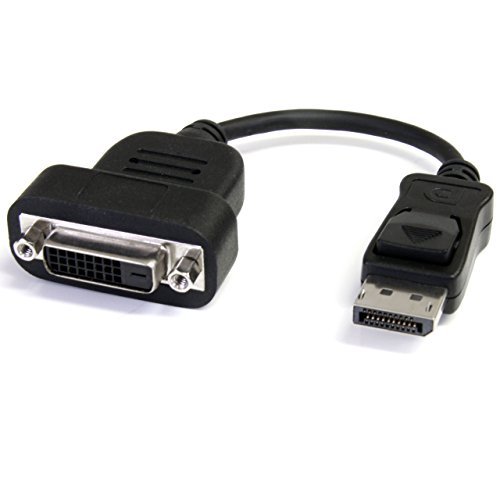

Startech.com DP2DVIS DisplayPort DVI Active Adapter. DisplayPort to DVI Active Adapter. The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors. DisplayPort DVI Active Adapter. Connect a DVI monitor to a singlemode DisplayPort output from your computer Compatible with DisplayPort equipped desktop computers such as Dell OptiPlex Active SingleLink Black DisplayPort 1.1a DHCP 1.3 Connect your computer to a DVI monitor DP to DVI Adapter Display Port to DVI DisplayPort to Monitor DP to DVI Monitor Active converter works with DisplayPort Video Cards such as ATI Radeon HD FirePro Series Eyefinity Graphics Cards Comparable to HP FH973AA
- Active DisplayPort converter for DisplayPort video cards not capable of outputting DP++ (multi-mode) signals
- Simple to use, small form-factor converter makes DisplayPort backward compatible with your DVI-D single link display
- Latching DisplayPort connector ensures a solid connection
- Color: Black
- Product Height: 0.8 in [20 mm]
- Product Length: 7.9 in [200 mm]
- Product Weight: 2.5 oz [70 g]
- Product Width: 1.7 in [44 mm]
- Adapter Style: Adapter
- Audio: No
- Converter Type: Active
- Fire Rating: LSZH Rated (Low Smoke Zero Halogen)
- Industry Standards: HDCP 1.3DisplayPort 1.1a DDWG 1.0
- Output Signal: DVI-D (DVI Digital)
- Maximum Digital Resolutions: 1920x1200
- Wide Screen Supported: Yes

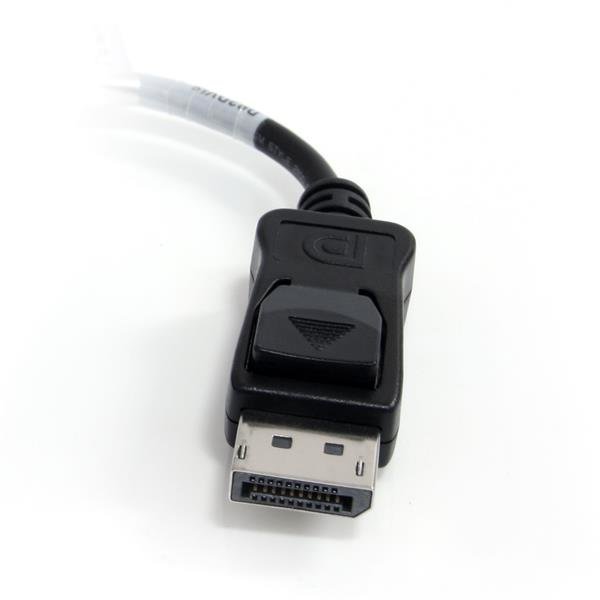

- Connector A 1 - DisplayPort (20 pin) Latching Male

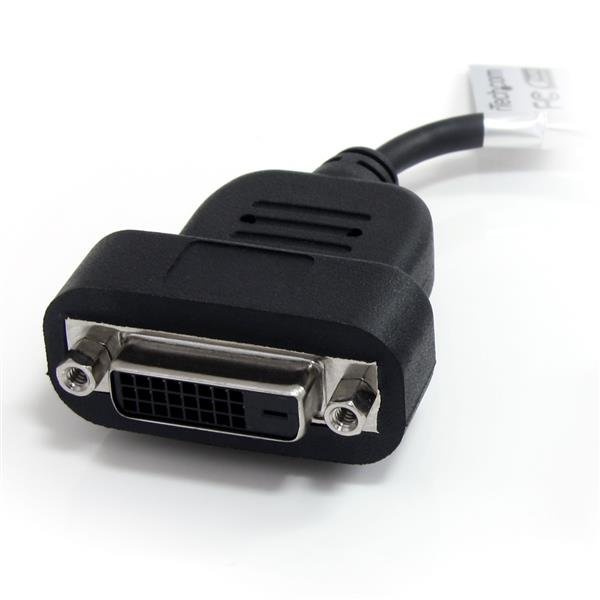

- Connector B 1 - DVI-D (25 pin) Female
- Operating Temperature: 0 Degrees C to 70 Degrees C (32 Degrees F to 158 Degrees F)
- Storage Temperature: 0 Degrees C to 70 Degrees C (32 Degrees F to 158 Degrees F)
- Connect a DVI monitor to a single-mode DisplayPort output from your computer
- Compatible with DisplayPort equipped desktop computers such as Dell OptiPlex
- Active Single-Link / Black / DisplayPort 1.1a / DHCP 1.3
- Connect your computer to a DVI monitor
- DP to DVI Adapter / Display Port to DVI / Comparable to FH973AA / DisplayPort to Monitor / DP to DVI Monitor
- Active converter works with DisplayPort Video Cards such as ATI Radeon HD / FirePro Series Eyefinity Graphics Cards
Manufacturer：StarTech
MPN：DP2DVIS
Type：DP to DVI
Changer Type：DisplayPort to DVI
Color：Black
Specifications：Color: Black
Connector Types1 - DisplayPort (20 pin; Latching) Male
Connector Types1 - DVI-D (25 pin) Female
Fire Rating: LSZH Rated (Low Smoke Zero Halogen)
Industry Standards: HDCP 1.3, DisplayPort 1.1a, DDWG 1.0
Maximum Digital Resolutions: 1920x1200
Wide Screen Supported: Yes
Output Signal: DVI-D (DVI Digital)
Audio: No
Dimensions: 7.87" x 1.73" x 0.79"
Weight2.47 oz [70 g]
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: 0°C to 70°C (32°F to 158°F)
Connector A：1x DVI-D female
Connector B：1x DisplayPort male
Features：Works with video cards not capable of outputting DP++ (multi-mode) signals
Supports resolutions up to 1920x1200
Compliant with DisplayPort 1.1a specifications
Latching DisplayPort connector
Supports HDCP 1.3
Supported on any DVI-D display including televisions and Apple Cinema Display HD
Connect a DVI monitor to a single-mode DisplayPort output from your computer
Compatible with DisplayPort equipped desktop computers such as Dell OptiPlex
Active Single-Link / Black / DisplayPort 1.1a / DHCP 1.3
Connect your computer to a DVI monitor
DP to DVI Adapter / Display Port to DVI / DisplayPort to Monitor / DP to DVI Monitor
Active converter works with DisplayPort Video Cards such as ATI Radeon HD / FirePro Series Eyefinity Graphics Cards
Comparable to HP FH973AA
Weight：0.15
