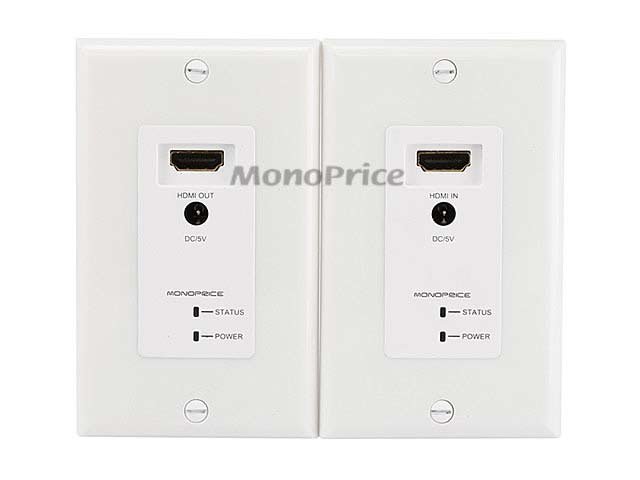

Monoprice 8200 Cat5e/Cat6 HDMI Extender Single Port Wall Plate 2-Pack
- Model: 6aavl5
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This Monoprice 8200 Cat5e/Cat6 HDMI Extender Single Port Wall Plate 2-Pack is a great way to get rid of cable clutter and install HDMI directly into your wall using a Cat5e or Cat6 cable to extend the reach of your HDMI connection. Using the transmitter wall plate and receiver wall plate in this Cat5e / Cat6 HDMI extender kit, it will be easy to connect media devices to your home entertainment system.
- Compatible with Cat5e and Cat6 cables
- Each plate supports one HDMI output
- Supports DTS Digital and Dolby Digital
- HDCP Compatible
- Video Resolutions
- 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Audio Formats
- DTS-HD Master Audio, Dolby TrueHD, etc.
- Transmission Distances
- 1080i 8-bit to 50m, 1080p 8-bit to 30m, 1080p 12-bit to 25m
- Minimum Cable Requirements
- Cat5e UTP 24 AWG Solid
- Recommended Cable Requirements
- Cat6 STP 23 AWG Solid
- Operating Temperature Range
- -5 to +35° C (-41 to +95° F)
- Operating Humidity Range
- 5 to 90% RH (No condensation)
- Input Video Signal
- 0.5 to 1.0 volts p-p
- Input DDC Signal
- 5 volts p-p (TTL)
- Power Consumption
- 3 watts maximum
- Physical Dimensions (LxWxH)
- 115 x 70 x 35 mm
- Net Weight
- 150 gm / pair
- Extend the range of your High Speed HDMI signal and keep the wiring hidden safely within your walls using this HDMI Wall Plate Extender
- To use them you need to run two Cat5e/6 cables through the wall
