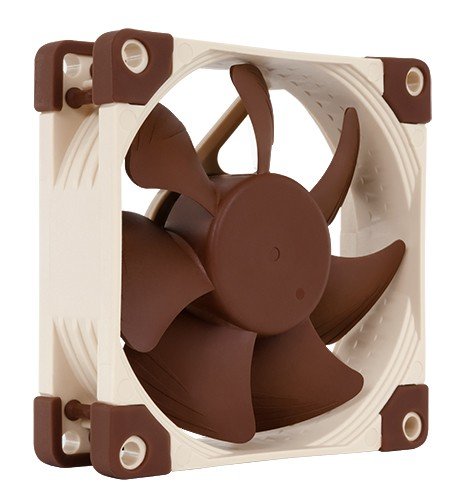

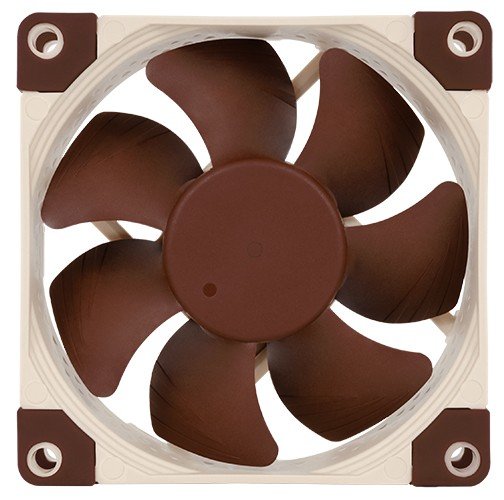

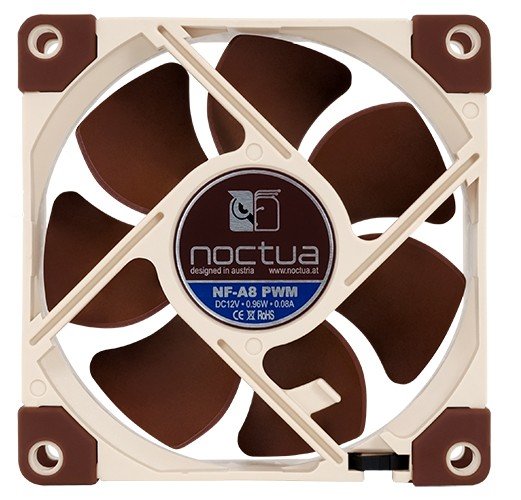

Noctua NF-A8 PWM Premium 80mm Fan

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua's AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8.

• Size 80x80x25 mm
• Connector 4-pin PWM
• Bearing SSO2
• Blade Geometry A-Series with Flow Acceleration Channels
• Frame Technology AAO (Advanced Acoustic Optimisation)
• Rotational Speed (+/- 10%) 2200 RPM
• Rotational Speed with L.N.A. (+/- 10%) 1750 RPM
• Min. Rotational Speed (PWM, +/-20%) 450 RPM
• Airflow 55,5 m3/h

• Proven NF-P12 Design
• PWM Custom designed PWM IC with SCD, Ultra-Low Power Consumption
• Vortex Control Notches

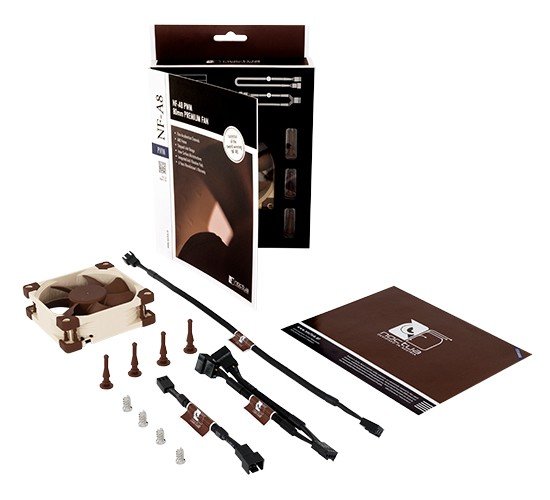

• Extensive Cabling Options
• SSO2 Bearing

Manufacturer：Noctua
MPN：NF-A8 PWM
Type：Case Fan
Compatibility：CPU Cooler, Water-Cooling Radiator and Case
Fan Size：80mm
Bearing Type：SSO2 ( Self-stabilising oil-presure bearing )
RPM：2200 RPM ( standard ), 1750 RPM ( w/ L.N.A ), 450RPM ( Mini Rotation Speed)
Air Flow：55.5 m³/h (standard), 43.9 m³/h ( w/L.N.A. )
Noise Level：17.7 dB(A)/standard, 13.8 dB(A)(w/ L.N.A )
Power Connector：4 Pin
Color：Brown
Features：Succeeding the award-winning NF-R8
Noctua's NF-R8 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 80mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A8 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.

NF-A8Flow Acceleration Channels
The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button

NF-A8AAO Frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency. button

Stepped Inlet DesignStepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button

Inner Surface MicrostructuresInner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button

Integrated Anti-VibrationIntegrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Dimensions：80 x 80 x 25mm
