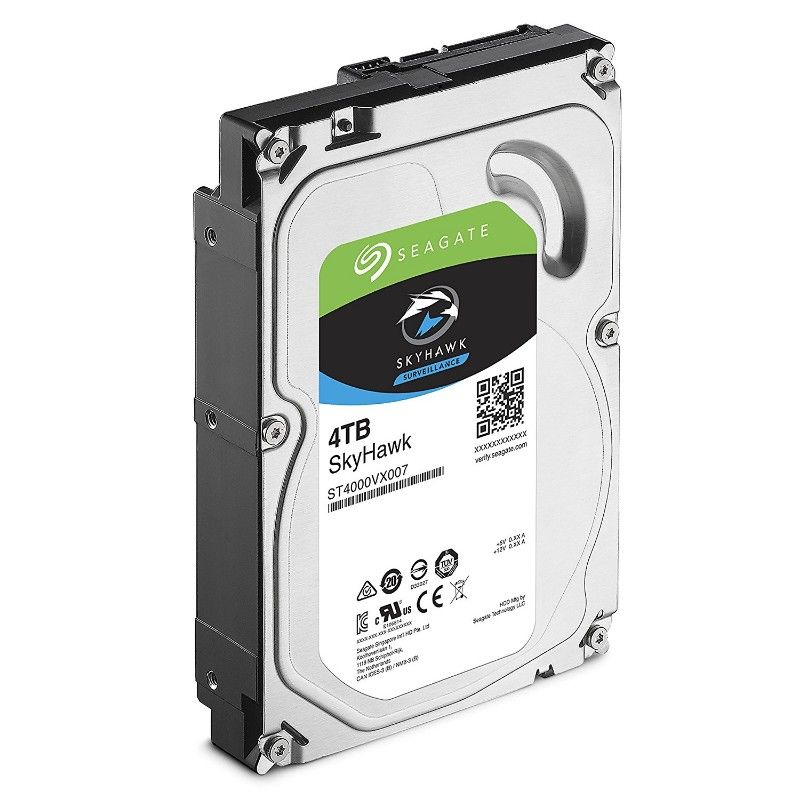

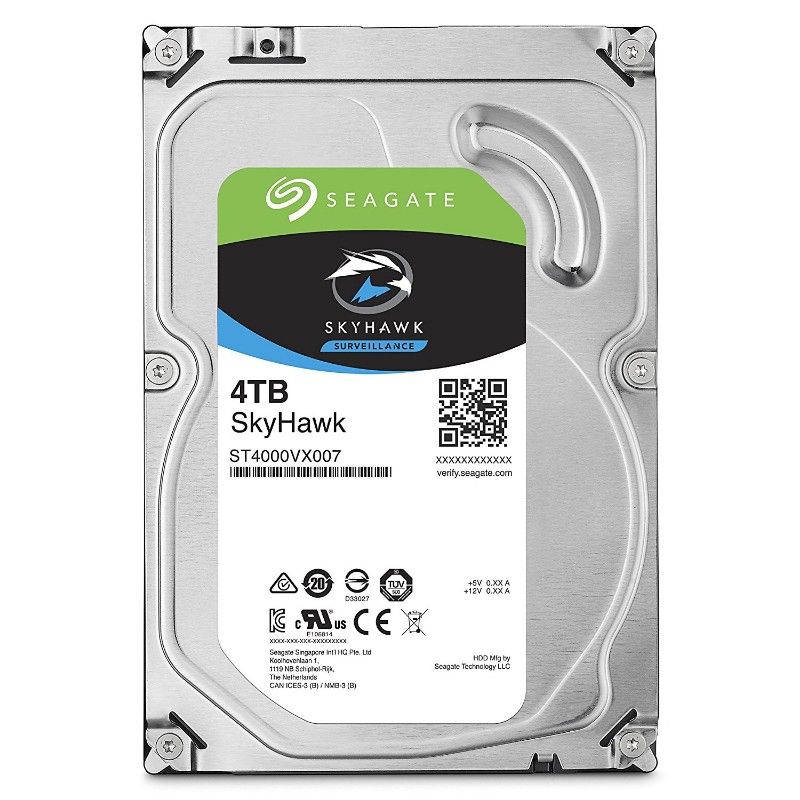

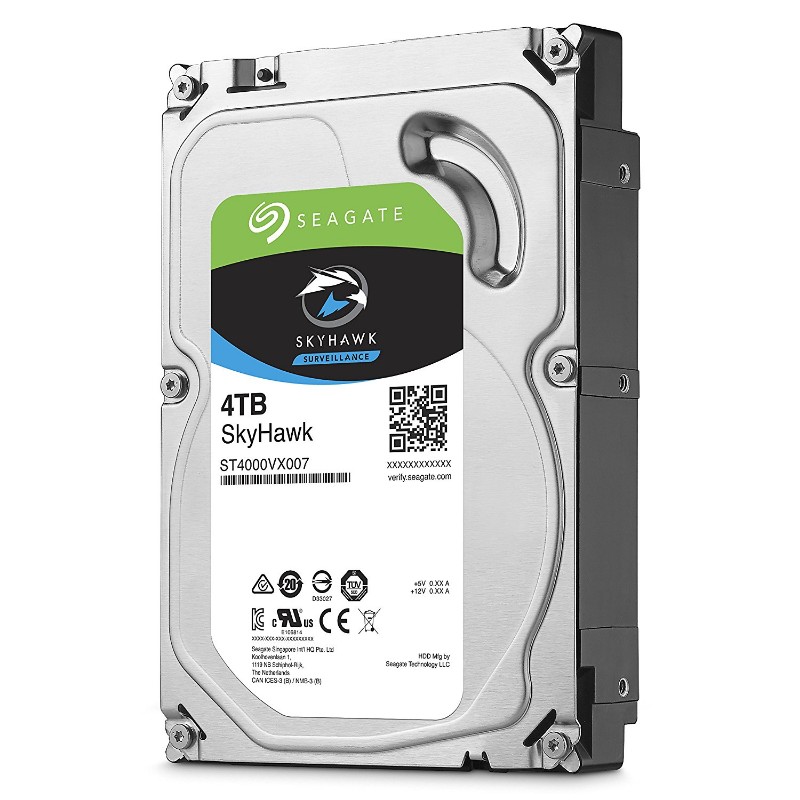

Seagate SkyHawk 4TB Surveillance Hard Drive 64MB Cache SATA 6.0Gb/s 3.5" ST4000VX007

Optimized for DVRs and NVRs, SkyHawk? surveillance drives are tuned for 24x7 workloads in capacities up to 10TB. Equipped with enhanced ImagePerfect? firmware, SkyHawk helps to minimize dropped frames and downtime with a workload rating 3? that of desktop drives while supporting up to 64 HD cameras. These drives are also optimized for Optimized for: Network video recorders (NVR), Embedded surveillance DVRs (SDVR), Hybrid surveillance DVRs, and Surveillance DVRs.

The ST4000VX007 hard drive from Seagate features 4TB of storage size in a 3.5" form factor. This drive connects to your system via the SATA 6 Gb/s interface so make sure you have an available port on your compatible motherboard. Advanced features of this HDD include a 64MB cache/buffer and 5900 rotational spin rate.

• Brand: Seagate
• Series: SkyHawk
• Model: ST4000VX007
• Interface: SATA 6.0Gb/s
• Capacity: 4TB
• Cache: 64MB
• Usage: For Video Surveillance
• Form Factor: 3.5"
• Height (maximum): 26.11mm
• Width (maximum): 101.85mm
• Length (maximum): 146.99mm

• ImagePerfect firmware supports 24x7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, supports more cameras recording at higher resolutions.
• Up to 10TB or over 2000 hours of HD video storage.
• ATA streaming support sustains recordings from up to 64 HD cameras for smooth, uninterrupted footage.
• 1M hours MTBF, 3-year limited warranty, improved total cost of ownership, reduces maintenance costs.
• Workload rating of 180TB/year, perform reliably in write-intensive surveillance systems.
• NVR-ready design allows drives to maintain performance in RAID and multi-drive systems.
• Lower power consumption reduces heat emissions, improves reliability in surveillance solutions.

Manufacturer：Seagate
Classification：SkyHawk
MPN：ST4000VX007
Packaging：Bare Drive
Interface：SATA 6.0Gb/s
Size：4TB
Cache：64MB
Average Latency：6Gb/s
Features：ImagePerfect firmware supports 24x7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, and supports more cameras recording at higher resolutions than traditional drives.

Workload rating of 180TB/year allows SkyHawk to perform reliably in write-intensive surveillance systems - 3x the workload rating of a desktop-class drive.

Rotational vibration (RV) sensors allow drives to maintain performance in RAID and multi-drive systems, giving customers the flexibility to grow with the booming NVR market and scale their systems when more storage is needed.

ATA streaming support sustains recordings from up to 64 HD cameras for smooth, uninterrupted footage.

Up to 10TB or 10,000 hours of HD video storage supports an increased number of cameras and helps to ensure longer data retention periods are met.

1M hours MTBF represents an improved total cost of ownership (TCO) with reduced maintenance costs.

Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions.

Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.

Best-Fit Applications
Network video recorders (NVR)
Embedded surveillance DVRs (SDVR)
Hybrid surveillance DVRs
Surveillance DVRs
Usage：For Video Surveillance
Form Factor：3.5"
Height (maximum)：26.11mm
Width (maximum)：101.85mm
Length (maximum)：146.99mm
