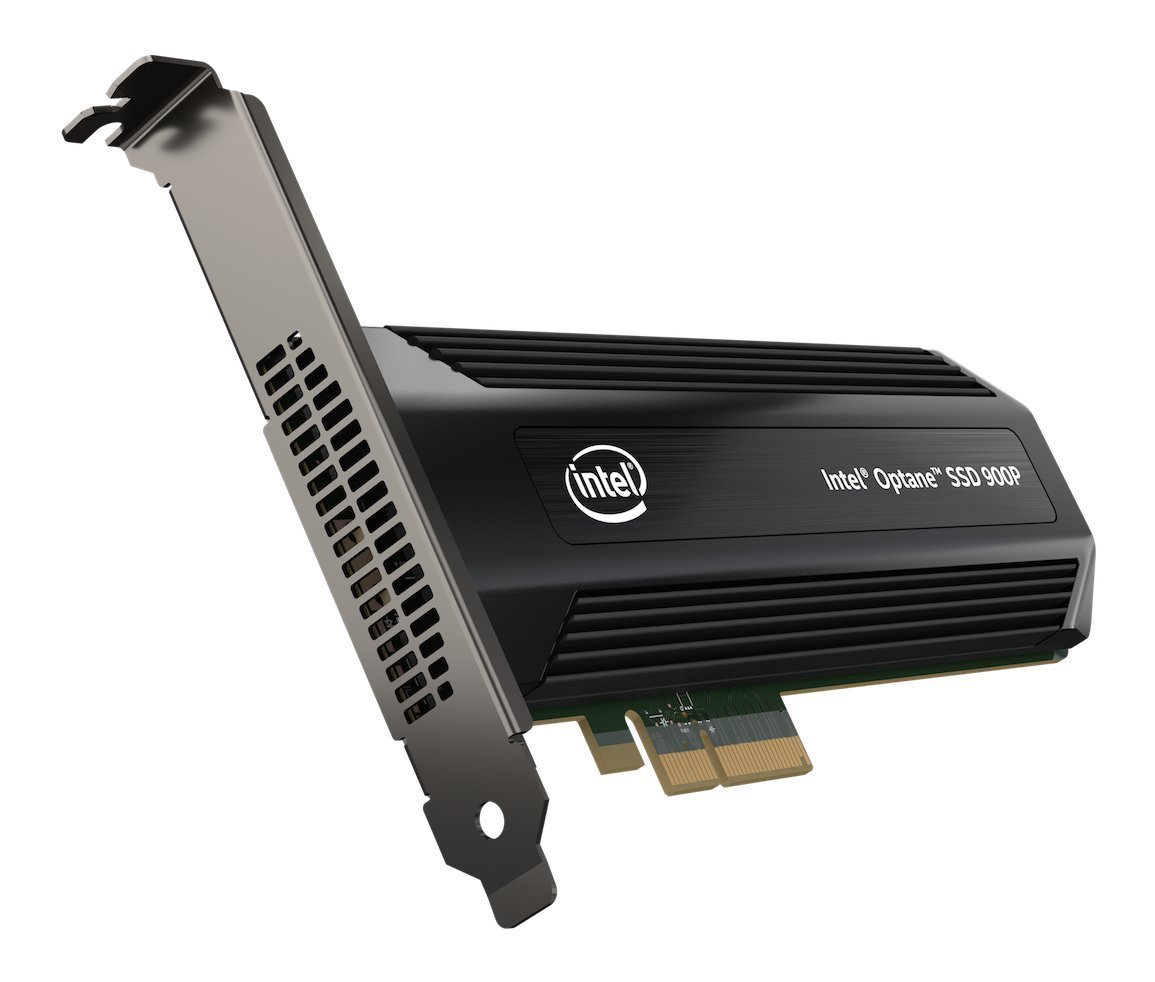

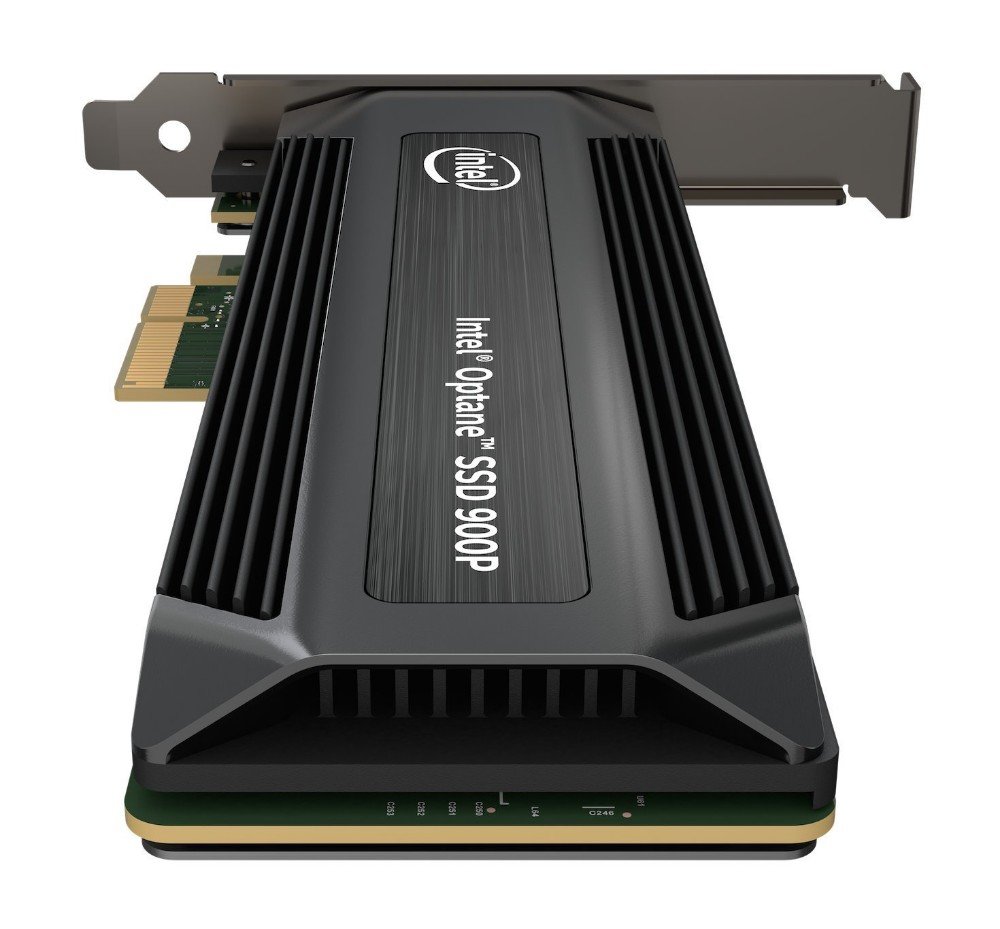

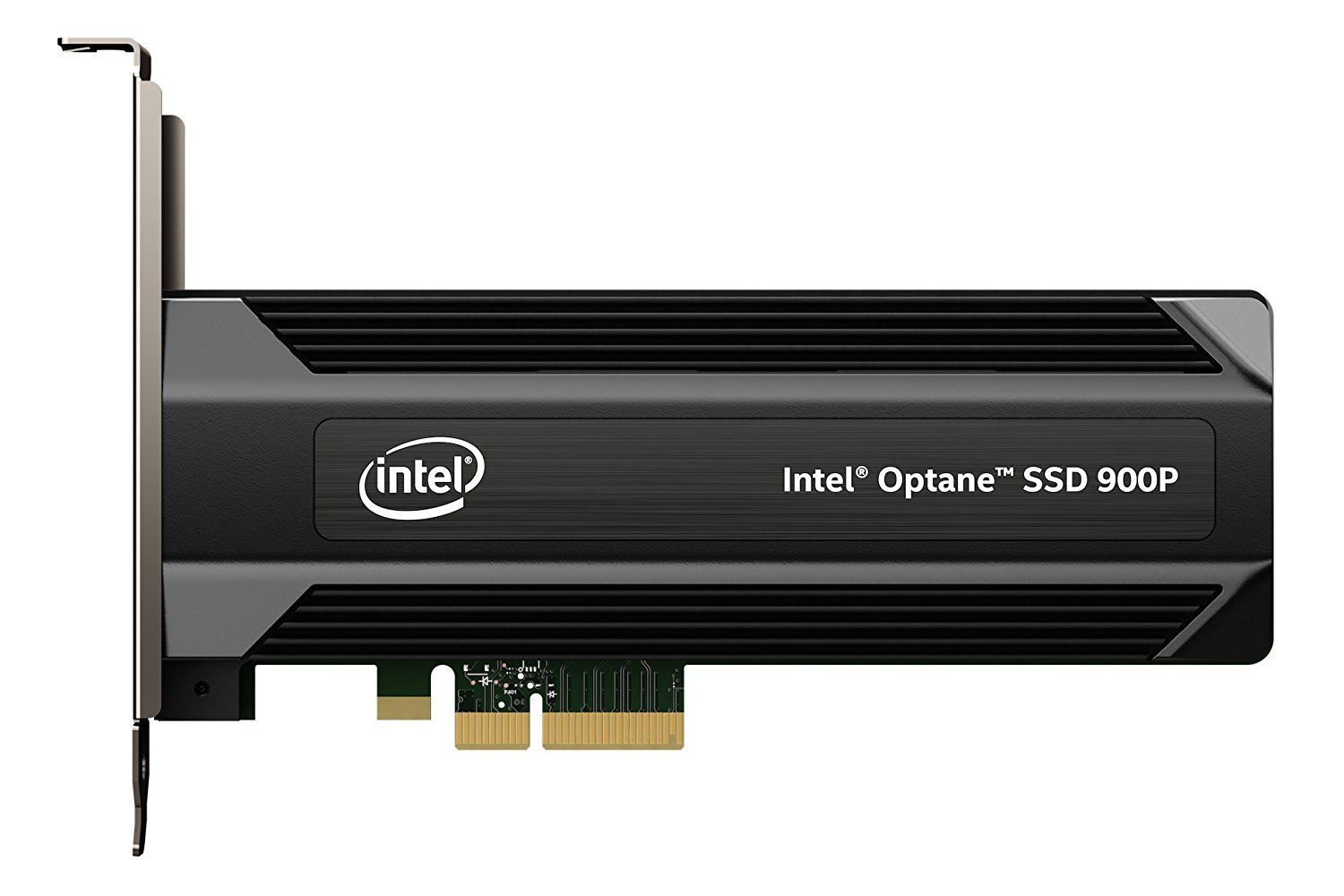

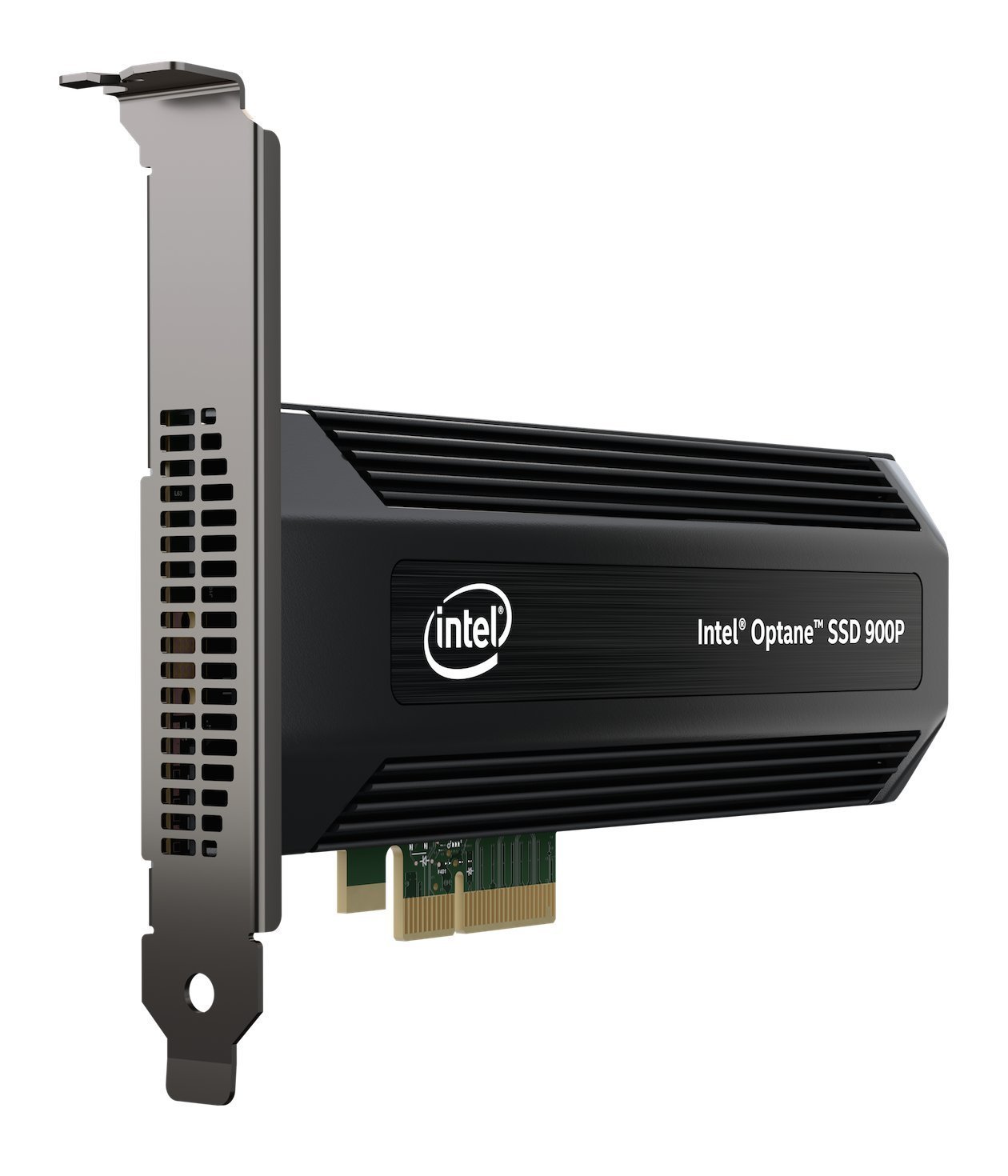

Intel Optane SSD 900P (280GB AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Intel SSD SSDPED1D280GASX 900P 280GB AIC PCIE (SSDPED1D280GASX). Experience fast load times, rich content, and smooth gaming with the 280GB Optane 900P PCIe 3.0 x4 Internal SSD from Intel, which delivers workstation-class performance and endurance to meet demanding storage requirements. It has a capacity of up to 280GB, is equipped with an NVMe PCIe 3.0 x4 interface, and has a half-height, half-length (CEM 3.0) form factor. In terms of speed, this drive offers sequential write speeds of up to 2000 MB/s, sequential read speeds of up to 2500 MB/s, random writes of up to 500,000 IOPS, and random reads of up to 550,000 IOPS. Also employed are 20nm lithography, 3D XPoint flash memory, 1.6 million hours mean time between failures (MTBF), an endurance rating (lifetime writes) of 5.11PB, AES 256-bit hardware encryption, an uncorrectable bit error rate of 1 sector per 1017 bits read, read/write latencies of 10 as, and more.

• Designed for the most storage demanding workloads, ideal for professional users, creators, and enthusiasts
• Enables greater platform performance on high performance desktops and workstations
• Delivers high random read/write performance coupled with low latency and industry-leading endurance
• Built with Intel Optane technology, a revolutionary class of non-volatile memory. Power Consumption (Idle) 5W and Power Consumption (Active) 14W
• Backed by Intel's industry leading quality and reliability and a 5-year limited warranty

• Brand: Intel
• Series: Optane SSD 900P Series
• Model: SSDPED1D280GASX
• Device Type: Internal Solid State Drive (SSD)
• Form Factor: AIC
• Capacity: 280GB
• Memory Components: 3D NAND
• Interface: PCI Express 3.0 x4
• Max Sequential Read: Up to 2500 MBps
• Max Sequential Write: Up to 2000 MBps
• 4KB Random Read: Up to 550,000 IOPS
• 4KB Random Write: Up to 500,000 IOPS
• Read Latency: 10 µs
• Write Latency: 10 µs
• MTBF: 1,600,000 hours
• Power Consumption (Idle): 5W
• Power Consumption (Active): 14W
• Operating Temperature: 0℃ ∼ +70℃
• Max Shock Resistance: 50G (11ms)
• Max Vibration Resistance (Operating): 2.17 GRMS (5-700 Hz)
• Max Vibration Resistance (Non-Operating): 3.13 GRMS (5-800 Hz)

• AIC
• 280GB
• PCI-Express 3.0 x4

Manufacturer：Intel
Classification：Optane SSD 900P Series
MPN：SSDPED1D280GASX
Device Type：Internal Solid State Drive (SSD)
Form Factor：AIC
Size：280GB
Memory Components：3D NAND
Interface：PCI-Express 3.0 x4
Max Sequential Read：Up to 2500 MBps
Max Sequential Write：Up to 2000 MBps
4KB Random Read：Up to 550,000 IOPS
4KB Random Write：Up to 500,000 IOPS
Read Latency：10 µs
Write Latency：10 µs
MTBF：1,600,000 hours
Features：Near-Symmetric Read/Write performance

Ultra-low Latency

High performance at low queue depth

Intel quality and reliability
Power Consumption (Idle)：5W
Power Consumption (Active)：14W
Operating Temperature：0°C ~ +70°C
Max Shock Resistance：50G (11 ms)
Max Vibration Resistance：Operating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Weight：1.3
