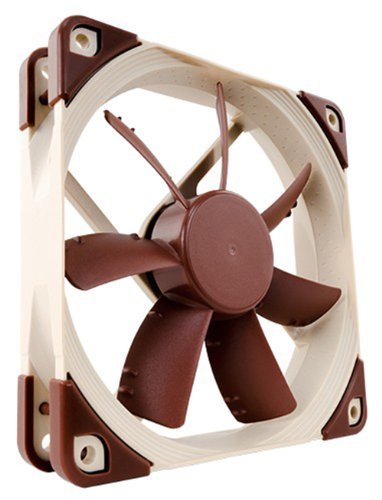

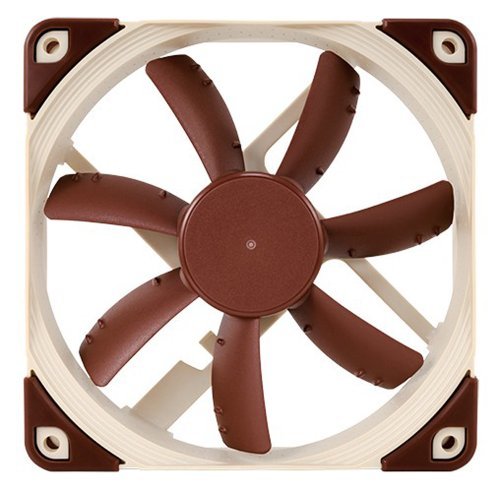

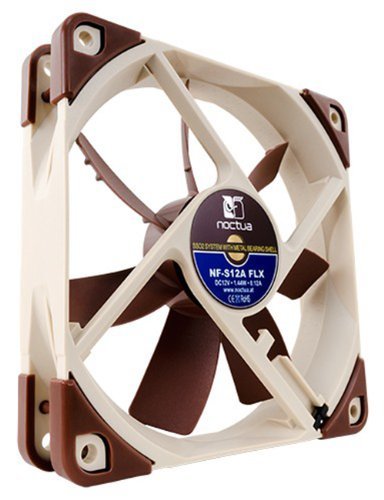

Noctua NF-S12A FLX Ultra Quiet 120mm Flexible Cooling Fan

The Noctua NF-S12A Fan is part of Noctua's third generation lineup. Of course this time there are even more improvements to airflow and noise levels, enough to outdo preceding fans.The NF-S12A marks the third generation of Noctua's signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimization) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The FLX version provides 1200/900/700rpm speed settings via the supplied Low-Noise Adaptors in order to give you full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua's trusted premium quality make it an elite choice for quiet case cooling.

Size

120x120x25 mm

Connector

3-pin

Bearing

SSO2

Blade Geometry

S-Series with Anti-Stall Knobs

Frame Technology

AAO (Advanced Acoustic Optimisation)

Rotational Speed (+/- 10%)

1200 RPM

Rotational Speed with L.N.A. (+/- 10%)

900 RPM

Rotational Speed with U.L.N.A. (+/- 10%)

700 RPM

Airflow

107,5 m3/h

Airflow with L.N.A.

83,2 m3/h

Airflow with U.L.N.A.

65,8 m3/h

Acoustical Noise

17,8 dB(A)

Acoustical Noise with L.N.A.

10,7 dB(A)

Acoustical Noise with U.L.N.A.

7,4 dB(A)

Static Pressure

1,19 mm H2O

Static Pressure with L.N.A.

0,73 mm H2O

Static Pressure with U.L.N.A.

0,51 mm H2O

Max. Input Power

1,44 W

Max. Input Current

0,12 A

Voltage

12 V

MTBF

> 150.000 h

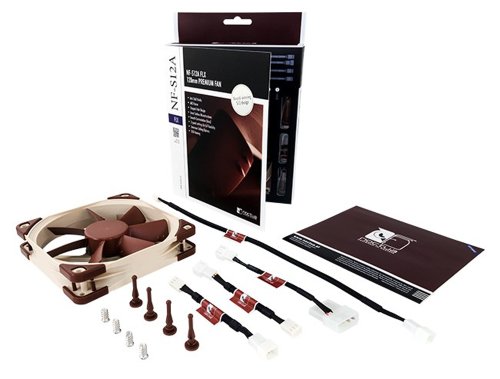

Scope of Delivery

Low-Noise Adaptor (L.N.A.)

Ultra-Low-Noise Adaptor (U.L.N.A.)

3:4-Pin Adaptor

30cm Extension Cable

4 Vibration-Compensators

4 Fan Screws

• 120mm
• 1200 RPM +/-10% 900 RPM +/-10% (with L.N.A adapter) 700 RPM +/-10% (With U.L.N.A) 107.5 m3/h (standard) 83.2 m3/h ( w/L.N.A. ) 65.8 m3/h ( w/U.L.N.A. )
• SSO2
• 17.8 dB(A) standard 10.7 dB(A) (w/ L.N.A ) 7.4 dB(A) (w/U. L.N.A)

Manufacturer：Noctua
MPN：NF-S12A FLX
Type：Case Fan
Compatibility：CPU Cooler, Water-Cooling Radiator and Case
Fan Size：120mm
Bearing Type：SSO2
RPM：1200 RPM +/-10%
900 RPM +/-10% (with L.N.A adapter)
700 RPM +/-10% (With U.L.N.A)
Air Flow：107.5 m3/h (standard)
83.2 m3/h ( w/L.N.A. )
65.8 m3/h ( w/U.L.N.A. )
Noise Level：17.8 dB(A) standard
10.7 dB(A) (w/ L.N.A )
7.4 dB(A) (w/U. L.N.A)
Power Connector：3 Pin
Color：Brown
Features：Award-winning S12 design

Anti-Stall Knobs

AAO Frame

Stepped Inlet Design

Inner Surface Microstructures

Integrated Anti-Vibration Pads

Smooth Commutation Drive 2

3 speed settings for full flexibility

Extensive Cabling Options

SSO2 Bearing

Metal bearing shell
Dimensions：120 x 120 x 25mm
