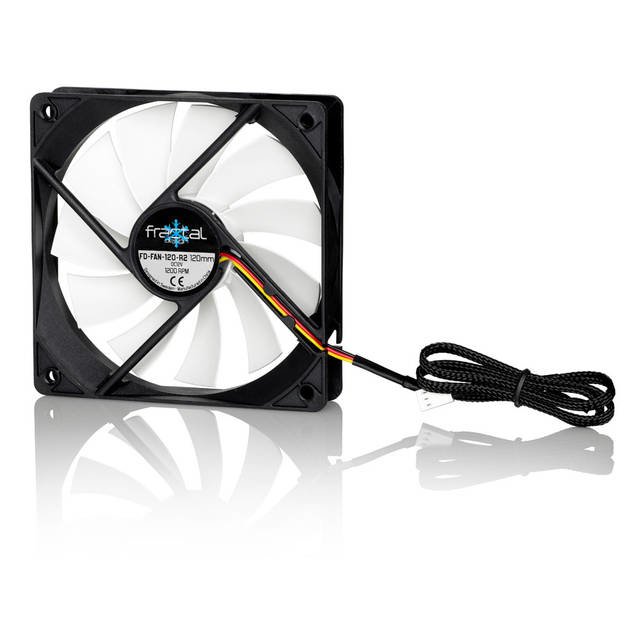

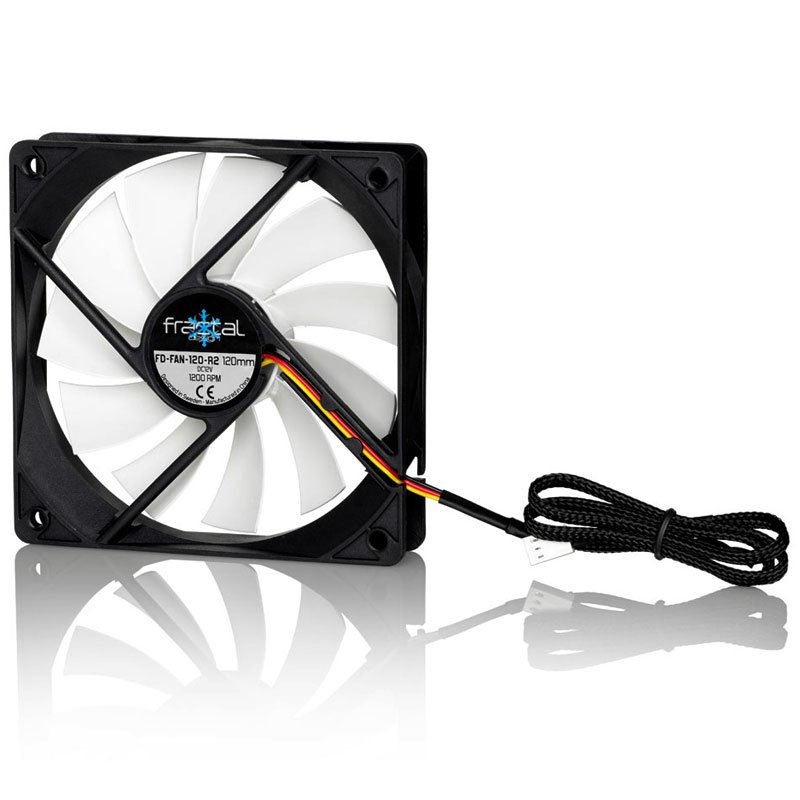

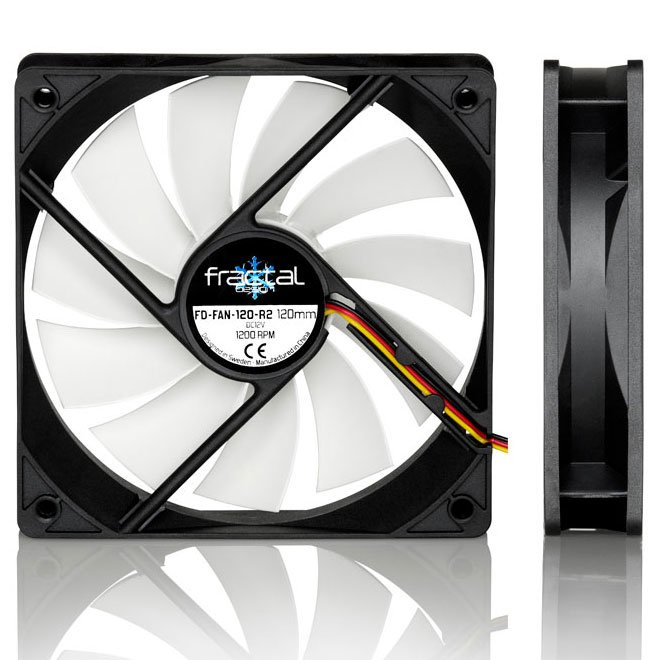

Fractal Design Silent Series R2 120mm 3-Pin Case Fan (Black)
- Model: 1zf45n
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Fractal Design Silent Series R2 120mm Cooling Fan FD-FAN-SSR2-120 These fans have been specifically developed to deliver significant airflow while maintaining low noise levels. Silent Series R2 fans are available in sizes from 40mm up to 140mm -Specifically developed to deliver significant airflow while maintaining low noise levels.-Included adapter to lower fan speed if desired.
- Hydraulic Bearing
- The high quality hydraulic bearing in this low noise 120mm fan allows for silent and reliable operation, with little reduced performance even after long periods of continuous cooling.
- Low Speed Adapter
- The included low speed adapter can be used to reduce the fan speed, letting you take control over the noise and airflow levels in your case.
- Rubber Mounting Pins
- With the bundled rubber mounting pins, you can absorb the vibration of your fan before it reaches your case, reducing noise levels even further.
- Speed
- Low speed: 850 +/-200RPM
- Normal Speed: 1200 +/- 10%
- Dimensions (mm)
- 120 x 120 x 25
- Max. airflow (CFM)
- Low speed: 28.8
- Normal speed: 40.6
- Max. pressure (mm H2O)
- Low speed: 0.54
- Normal speed: 1.07
- Noise level (dBA)
- Low speed: 12.0
- Normal speed: 15.0
Fractal Design FD-FAN-SSR2-120
- Speed
- Low speed: 850 +/-200RPM
- Normal Speed: 1200 +/- 10%
- Dimensions (mm)
- 120 x 120 x 25
- Weight (g)
- 113.3
- Cable length (mm)
- 500 +/- 10mm
- Number of blades
- 11
- Connector
- 3-Pin fan header
- Starting voltage
- Low speed: <11
- Normal speed: <6
- Max. airflow (CFM)
- Low speed: 28.8
- Normal speed: 40.6
- Max. pressure (mm H2O)
- Low speed: 0.54
- Normal speed: 1.07
- Noise level (dBA)
- Low speed: 12.0
- Normal speed: 15.0
Fractal Design FD-FAN-SSR2-120
- High Performance Hydraulic Bearings
- Fully Sleeved Cabling
- Optimized for Silence
- Matching Black Fan Blades and Frame
- Sound Level - 15.0 dBA
- Airflow - 40.6 CFM
- Includes rubber screws for added vibration dampening
- Includes low-speed adapter
Manufacturer：Fractal Design
Classification：Silent Series R2 120mm Black Edition
MPN：FD-FAN-SSR2-120-BK
Type：Case Fan
Bearing Type：Hydraulic
RPM：1200 +/- 10%
Air Flow：40.6 CFM
Noise Level：15 dBA
Power Connector：3 Pin
Features：High performance hydraulic bearings
Fully sleeved cabling
Optimized for silence
Matching black fan blades and frame
Includes rubber screws for added vibration dampening
Includes low-speed adapter
Available in 40mm to 140mm sizes
Number of blades: 11
Static Pressure: 1.07 mm/H2O
Max rated input current: 0.3A
Nominal input voltage: 12V
Minimum startup voltage: <6V
Cable length: 500 mm
Cable type: Black textile covered
MTBF: 40,000 hours
Dimensions：120 x 120 x 25 mm

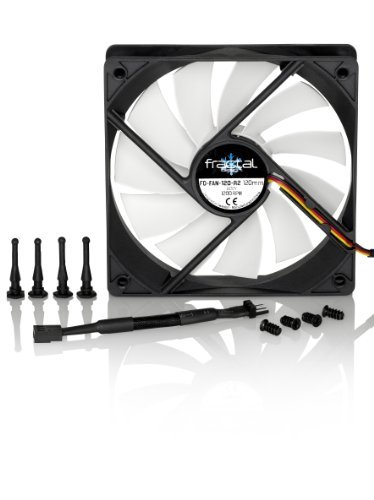

Package Includes：Silent Series R2 120mm Black Edition fan
4 x metal screws
4 x rubber screws
Low speed adapter
