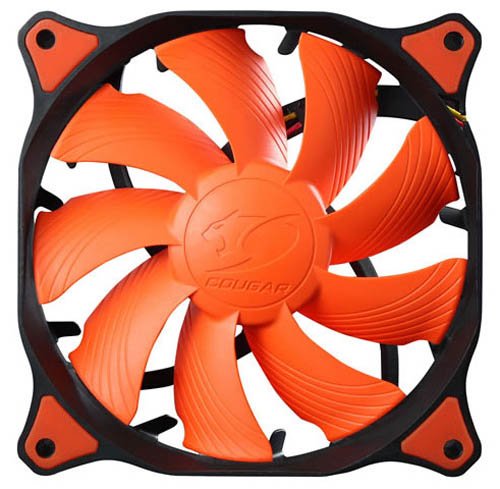

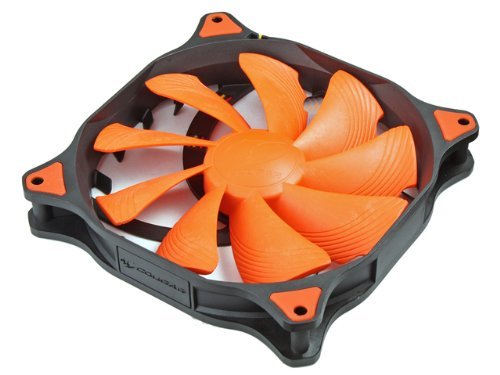

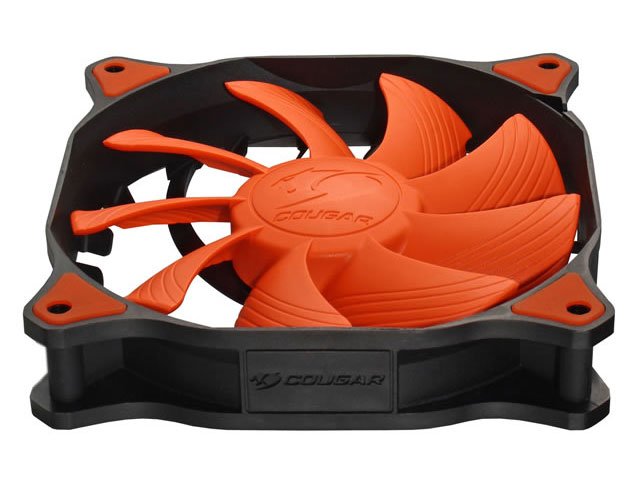

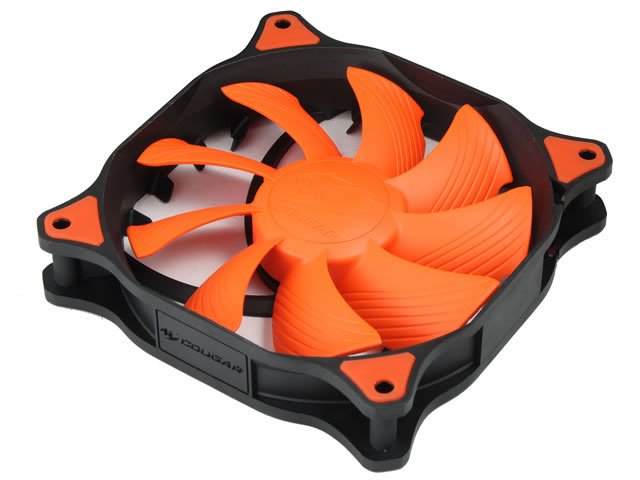

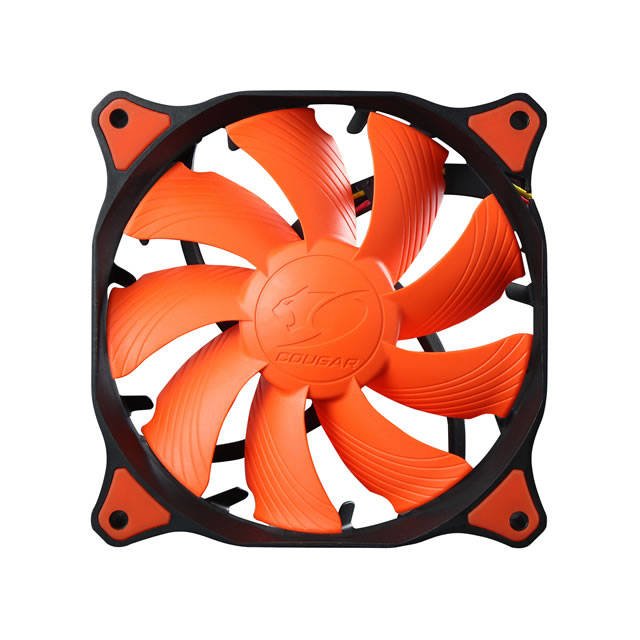

Cougar CF-V12HP 120mm Vortex Hydro-Dynamic-Bearing Orange Case Fan
- Model: u3icql
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Think all fans are created equal? You think WRONG. The Cougar Vortex PWM 120mm case fan proves it - sophisticated in every possible area, this silent case fan produces amazing airflow and almost no noise. The rubberized anti-vibration mounts are built right into the fan's frame itself, so the patented fan blades can work their magic, producing unmatched airflow.
- Dimensions
- 120 x 120 x 25
- Speed
- 800-1500
- Air flow @ 12V (CFM, m3/h)
- 70.5 / 119.8(max.)
- Air pressure @ 12V (mm H2O)
- 2.2
- Noise
- 17.9dB
- Bearing type
- HDB (Hydro-Dynamic Bearing)
Cougar CF-V12HP
- PWM Function
- Automatically speeds up and slows down with temperature when plug into a 4-pin motherboard connection!
- Patented Diversion Groove Blade
- The diversion groove blade design focuses airflow for optimum cooling efficiency!
- Anti-vibration Pads
- The built-in anti-vibration pads reduce vibration noise for silent operation!
- Model
- CF-V12HP
- Marketing name
- VORTEX PWM 120
- Dimensions
- 120 x 120 x 25
- Speed
- 800-1500
- Air flow @ 12V (CFM, m3/h)
- 70.5 / 119.8(max.)
- Air pressure @ 12V (mm H2O)
- 2.2
- Noise
- 17.9dB
- Bearing type
- HDB (Hydro-Dynamic Bearing)
- Connector
- PWM 4 pin
- Cable length
- 450mm
- Cable sleeve
- Yes
- Accessories
- Small 4 to big 4pin adapter
- Tool-less fixed pins
- Screws
- Lifetime L10 (hours / 25 Degrees C)
- 300000
- 120mm
- 800-1500 RPM 70.5cfm/119.8cmh max
- Hydro-Dynamic
Manufacturer：Cougar
Classification：VORTEX PWM 120
MPN：CF-V12HP
Type：Case Fan
Fan Size：120mm
Bearing Type：Hydro-Dynamic
RPM：800 - 1500 RPM
Air Flow：70.5 CFM (Max.)
Noise Level：17.9 dB
Power Connector：PWM 4 pin
Color：Orange
Features：PWM-FUNCTION
PWM stands for Pulse Width Modulation. The 4-Pin connector allows the mainboard to control the fan speed from 800-1500RPM.
HIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME UNIQUE DESIGN
Optimum airflow, air pressure & extremely silent performance
DIVERSION GROOVE BLADE DESIGN
Innovative blade design focus air flow & optimum cooling efficiency
ANTI-VIBRATION PAD DESIGN
Reduce the vibrations efficiently & silent operation
AERO-DYNAMICAL DESIGN
Air-inlet with optimal aero-dynamical design reducing noisy air turbulences
HYDRO-DYNAMIC-BEARING TECHNOLOGY
HDB runs more smoothly with no friction, make it quietly & durability (MTBF300,000hrs)
TOOL-LESS FIXED PINS
Rubber fixed pins also reduces vibrations (fan run more quietly) and Tool-less makes it easy to mount, with no tools required
Dimensions：120.00 x 120.00 x 25.00mm
Package Includes：Case Fan
Small 4 to big 4pin adapter
Tool-less fixed pins
Screws
