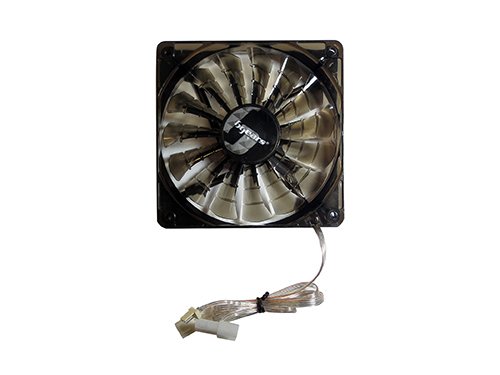

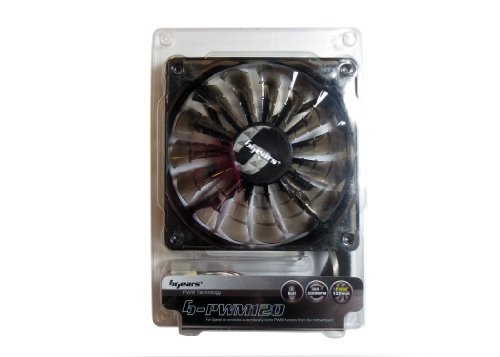

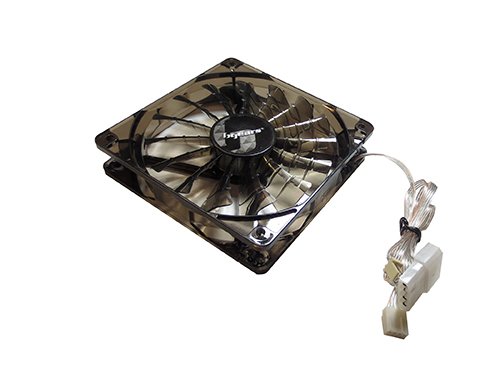

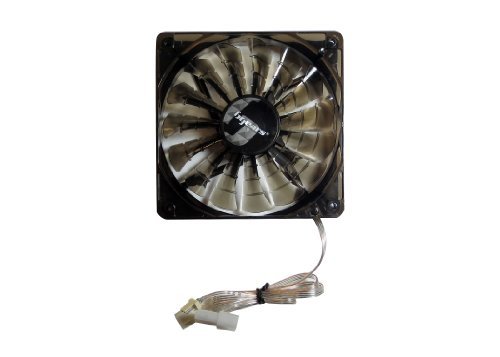

Bgears BG01220 120mm PWM Translucent Black Case Fan
- Model: fyqwle
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This Bgears Black PWM Translucent 120mm Case Fan includes 2 x ball bearings for extended life and high performance. With its 15 x blade design you'll have better airflow, stability, and speeds of 500 to 2000RPM. Bgears b-PWM 120mm Black 2 ball bearing high speed high performance PWM technology fan. PWM Technology with mini 4 pin 4 wire connector to connect directly to the Motherboard fan connector for ultimate fan speed monitoring thru Motherboard. Extreme Speed range from 500 to 2000 RPM with Excellent Airflow of up to 110 CFM. 15 translucent Black blades design for ultimate airflow and low noise level at only 37 dBA. Mini 4 pin 4 wires connector with PWM fan speed signal output. Include a 3 to 4 pin Molex adapter for direct connection to Power Supply. 4 screws included. Customer Service: Supportatbgears.com or call 510-657-7252. RMA Service: RMAatbgears.com or call 510-657-7252.
- 2 x ball bearings for extended life and high performance
- 15 x blades for better airflow and stability
- Speeds of 500 to 2000RPM
- Speed (RPM)
- 500 to 2000RPM±10%
- Current (A)
- 0.57±0.02A
- Power (W)
- 6.84
- Airflow (CFM)
- 110
- 1.51 (at zero static pressure for pwm)
- Static Pressure
- 0.15 (at zero flow for pwm)
- 3.7 (max for pwm)
- Rated Voltage (V)
- 12
- Operating Voltage Range (V)
- 10.8~13.8
- Noise Level (dbA)
- 37.3 (Max Speed)
- Temperature
- -10°C~70°C (operating)
- -20°C~75°C (storage)
- Dimensions
- 120 x 120 x 25 mm
- Bearing
- 2 Ball
- Weight
- 102g
- Life Expectancy
- 60000
- Features
- Extreme airflow range for ultimate cooling and control
- 2 Ball Bearing designed for high speed and high performance
- Better cooling and silent system performance thru PWM fan speed control
- 15 aerodynamic design fan blades for better airflow and stability
- 15 translucent blades
- This fan can also be directly connected to a standard mini 3 pin connector on the motherboard or fan controllers
- Mini 4 pin connector, 3 to 4 pin Molex adapter and 4 screws included
Specifications
- 120mm
- 2000 RPM 110 CFM
- 2 Ball
Manufacturer：bgears
MPN：b-PWM 120 Black
Type：Case Fan
Fan Size：120mm
Bearing Type：2 Ball
RPM：2000 RPM
Air Flow：110 CFM
Power Connector：4 Pin
LED：No
