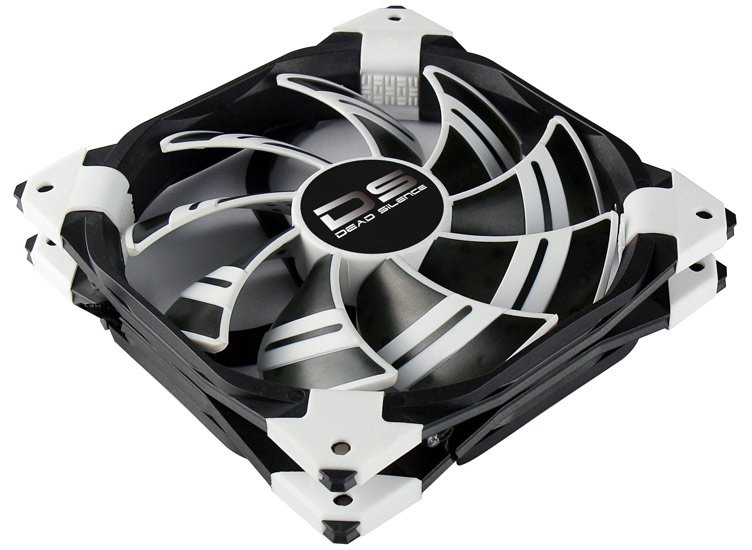

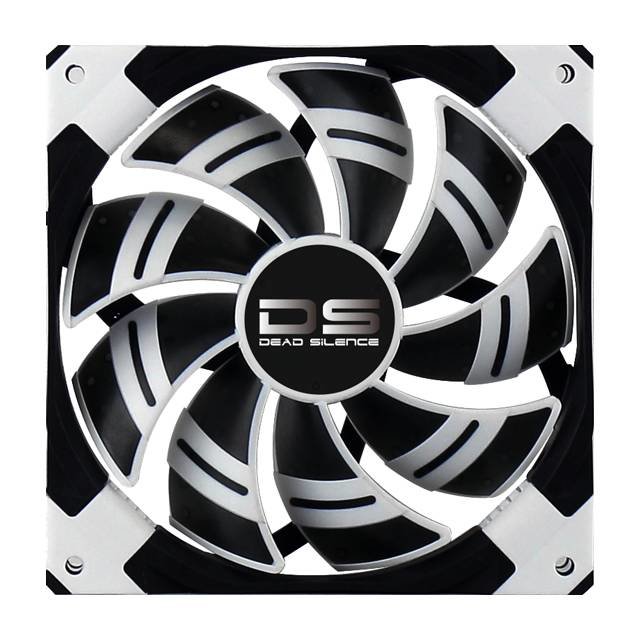

AeroCool DS-120mm White Dual layered blades with Noise Reduction
- Model: 8ezkfm
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
With this 120mm White LED Dual Material blade Low Noise Case Fan from Aerocool, you'll get great cooling with little extra noise. The fluid dynamic bearing in this quiet 120mm case fan ensures a long life with little noise or friction from the bearing.AeroCool Dual layered fan blades with ultimate Airflow at extreme low noise.
- Shock-absorbing rubber mounting screws
- Long Life Fluid-Dynamic Bearing creates little noise

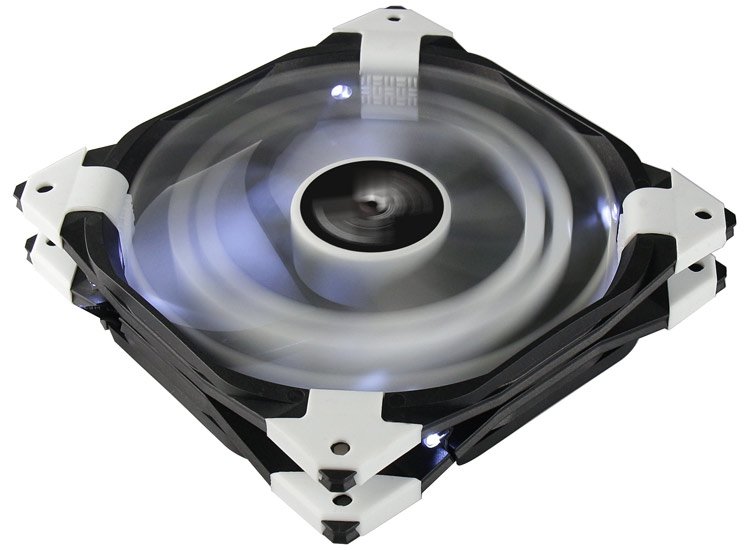

- LED lights activate when using 4-pin connector
- Dimensions
- 120 X 120 X 25mm
- Net Weight
- 170g
- Bearing System
- FDB (Fluid Dynamic Bearing)
- Rated Voltage
- 12V
- Starting Voltage
- 3.0V
- Rated Current
- 0.3A
- Power Consumption
- 3.6W
- Power Connector
- 3Pin with signal cable
- Accessories
- 3pin to Molex 4pin adapter x1
- 7V voltage reduction 3pin adapter x1
- Screws x4
- Rubber rivet x4
- MTBF
- 100,000 hours
- @ 12V
- Speed: 1500 RPM+/-10%
- Air Flow: 81.5 CFM (138.1 m3/h)
- Air Pressure: 2.29 mm H2O
- Noise: 23.1 dBA
- @ 7V
- Speed: 1100 RPM+/-10%
- Air Flow: 62.5 CFM (105.9 m3/h)
- Air Pressure: 1.25 mm H2O
- Noise: 14.8 dBA
Performance
- 120mm
- 1500 RPM+/-10% (12V) 1100 RPM+/-10% (7V) 81.5 CFM (138.1 m?/h) (12V) 62.5 CFM (105.9 m?/h) (7V)
- Fluid Dynamic
- 23.1dBA (12V) 14.8 dBA (7V)
Manufacturer：AeroCool
MPN：DS 120mm White
Type：Case Fan
Bearing Type：Fluid Dynamic
RPM：1500 RPM+/-10% (12V)
1100 RPM+/-10% (7V)
Air Flow：81.5 CFM (138.1 m³/h) (12V)
62.5 CFM (105.9 m³/h) (7V)
Noise Level：23.1dBA (12V)
14.8 dBA (7V)
Power Connector：3Pin with signal cable
Features：One of world's most Silence fan with breakthrough technology and innovation.
Beautifully finished "Dual Color and Dual Material Fan" with four color combinations and LEDs.
The world's first dual-layered fan blades - combination of plastic and rubber fan blades to absorb "Wind" noise.
"Golf Ball" surface design on the back rubber side of the fan blades to minimize the air turbulence.
Optimized fan blade angle design for a perfect balance of airflow and noise.
Noise and shock reduction fan frame incorporating four Silencer Blocks and anti-vibration rubber pads on each mounting holes.
Fluid Dynamic Bearing (FDB) delivers longer life span, higher precision rotation and anti-shock function.
Low starting voltage of 3V.
Four Anti-vibration screws are included for easier installation.
Power cables are "black" sleeved with both 3pin and Molex 4pin connectors.
Low speed 7V Voltage Reduction Cable included for ultra-low speed with unrecognizable noise.
Pantent : Taiwan - M 468707 Patent pending : USA/Germany/China
Dimensions：120 X 120 X 25mm
