MSI H170A PC Mate LGA1151 Intel H170 HDMI USB 3.1 ATX Motherboard

MSI H170A PC Mate| LGA1151 | ATX | 4xRAM Slots | Crossfire Motherboard. Use the MSI H170A PC Mate motherboard for your new Skylake build for superior performance, reliability and stability. The PRO series motherboard are designed with top quality, features and technologies to help boost your business. The board features DDR4 Boost technology to maximize your DDR4 experience, giving you unrivaled speed and stability. Supporting SATA Express, SATAIII, M.

The MSI H170A PC Mate motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel H170 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for Crossfire, stylish Black / Silver design.

Features

• Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
• Supports DDR4-2133 Memory
• DDR4 Boost: Give your DDR4 memory a performance boost
• USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection
• Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA 6Gb/s
• MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire
• Click BIOS: Secure and Reliable UEFI BIOS solution
• Audio Boost: Reward your ears with studio grade sound quality
• Military Class 4: Top Quality & Stability
• Guard-Pro: Improved Protection and Power Efficiency
• EZ Debug LED: Easiest way to troubleshoot
• Overvoltage Protection:Prevent Unforeseen Damage
• 4K UHD Support: Ultra-high Definition Visual Experience
• Intel SBB Support: Improves Productiviyty, Management and Serurity
• Windows 10 Ready: 100% Compatibility, Performance, Trusted and Certified.

Product Specifications

Socket

1151

CPU (Max Support)

i7

Chipset

Intel H170

DDR4 Memory

2133 MHz

Memory Channel

Dual

DIMM Slots

4

Max Memory (GB)

64

PCI-Ex16

2

PCI-E Gen

Gen3

PCI-Ex1

3

PCI

2

SATA Express

1

SATAIII

6

M.2 port

1

RAID

0/1/5/10

TPM (header)

1

LAN

10/100/1000*1

USB 3.1 ports(Front)

2(Gen1)

USB 3.1 ports (Rear)

2(Gen2), 4(Gen1)

USB 2.0 ports (Front)

4

Audio ports (Rear)

3

VGA

1

HDMI

1

DVI

1

DirectX

DX12

Form Factor

ATX

CrossFire

Yes

• Intel H170
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 2133/ 2400/ 2666/ 2800/ 3000 (2133+(OC))

Manufacturer：MSI
MPN：H170A PC Mate
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Chipset：Intel H170
Onboard Video Chipset：Intel HD 5000/4000 Series
Number of Memory Slots：4×288pin
Memory Standard：DDR4 2133/ 2400/ 2666/ 2800/ 3000 (2133+(OC))
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 (2 PCI-E 3.0; 16x+4x)
PCI Express x1：3 x PCI Express x1
PCI Slots：2 x PCI Slots
SATA 6Gb/s：6 x SATA 6Gb/s
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
LAN Chipset：Realtek 8111H
Max LAN Speed：10/100/1000Mbps

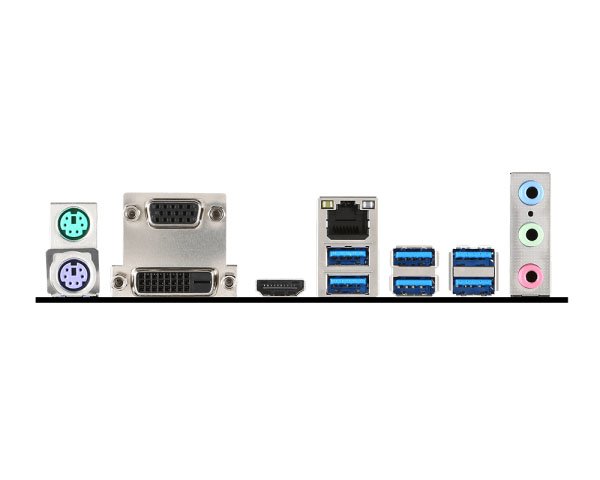

Video Ports：1 x D-Sub
1 x DVI
HDMI：1 x HDMI
USB 3.1：Type A (2 on Rear I/O)
USB 3.0：4 x USB 3.0
USB 1.1/2.0：2 x USB 2.0
Onboard USB：4 x USB 3.0 + 2 x USB 2.0
Form Factor：ATX
