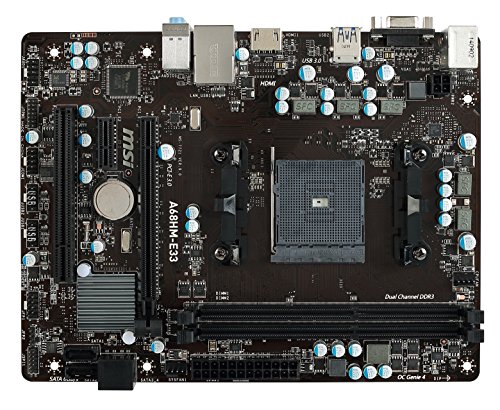

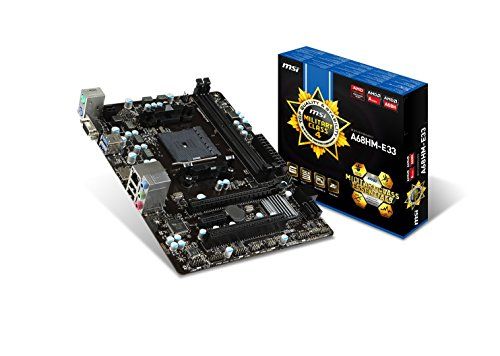

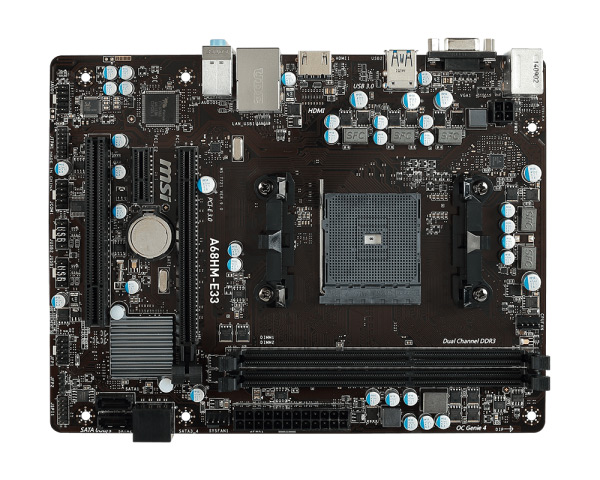

MSI A68Hm-E33 Fm2+ Amd A68H Hdmi Sata Iii Usb 3.0 Matx Amd Motherboard

This MSI A68HM-E33 FM2+ AMD A68H HDMI SATA III USB 3.0 mATX AMD Motherboard is able to support a PCI-Express 3.0 graphics card, up to 32GB DDR3 RAM, 4x SATA III drives, and much more. Create your next miniature gaming rig with this FM2+ Micro ATX motherboard. Other great features are Gigabit Ethernet, HDMI video output, and 2x USB 3.0 ports.

The MSI A68HM-E33 motherboard supports FM2+ processors and will fit in a standard Micro ATX case. This board is powered by the AMD A68H chipset and has support for 2 x 240-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR3-1333 / 1600 / 1866 / 2133. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black design.

• Supports AMD Socket FM2+/FM2 A-Series/Athlon Processors
• Supports DDR3 Memory
• USB 3.0 + SATA 6Gb/s
• Military Class 4: Top Quality & Stability
• Military Class Essentials: Total Protection for Military Class Motherboards
• Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds

Socket

FM2+

CPU (Max Support)

AMD A-Series/Athlon

Chipset

AMD A68H

DDR3 Memory

DDR3 1333/1600/1866/2133*(*OC)

Memory Channel

Dual

DIMM Slots

2

Max Memory (GB)

32

PCI-Ex16

1

PCI-E Gen

Gen3 (1x16)

PCI-Ex1

1

PCI

1

SATAIII

4

RAID

0/1/10

TPM (header)

1

LAN

10/100/1000*1

USB 3.0 ports (Rear)

2

USB 2.0 ports (Front)

4

USB 2.0 ports (Rear)

2

Audio ports (Rear)

3

VGA

1

HDMI

1

VGA Max Share Memory (MB)

2048

DirectX

DX11.1

Form Factor

M-ATX

Dual Graphics

Y

• AMD A68H
• Athlon/A- Series (FM2+)
• DDR3 2133(OC)/ 1866/ 1600/ 1333

Manufacturer：MSI
MPN：A68HM-E33 V2
CPU Socket Type：FM2+
Processor Type：Athlon/A- Series (FM2+)
Chipset：AMD A68H
Number of Memory Slots：2×240pin
Memory Standard：DDR3 2133(OC)/ 1866/ 1600/ 1333
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16
PCI Express x1：1 x PCIe 2.0 x1 slot
PCI Slots：1 x PCI Slot
SATA 6Gb/s：4 x SATA 6Gb/s
SATA RAID：0/1/10
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
LAN Chipset：Realtek RTL8111G
Max LAN Speed：10/100/1000Mbps

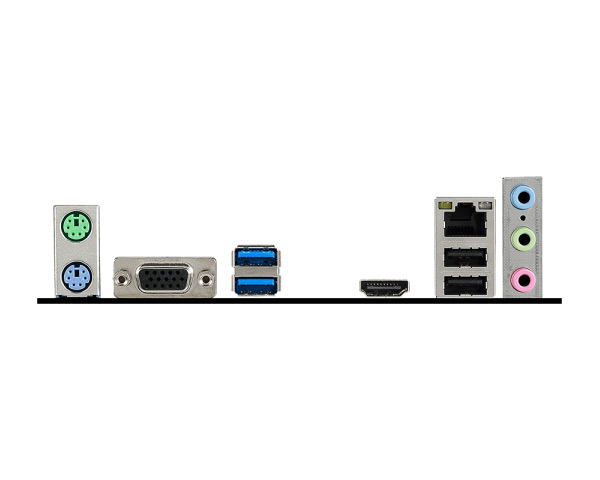

PS/2：1 x PS/2 keyboard port
1 x PS/2 mouse port
Video Ports：1 x VGA port
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.0：2 x USB 3.0
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 Ports
Onboard USB：2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
Form Factor：Micro ATX
Dimensions (W x L)：8.9" x 6.8"
Power Pin：1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Features：Supports AMD Socket FM2+/FM2 A-Series/Athlon Processors

Supports DDR3 Memory

Military Class 4: Top Quality & Stability

Military Class Essentials: Total Protection for Military Class Motherboards

Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
