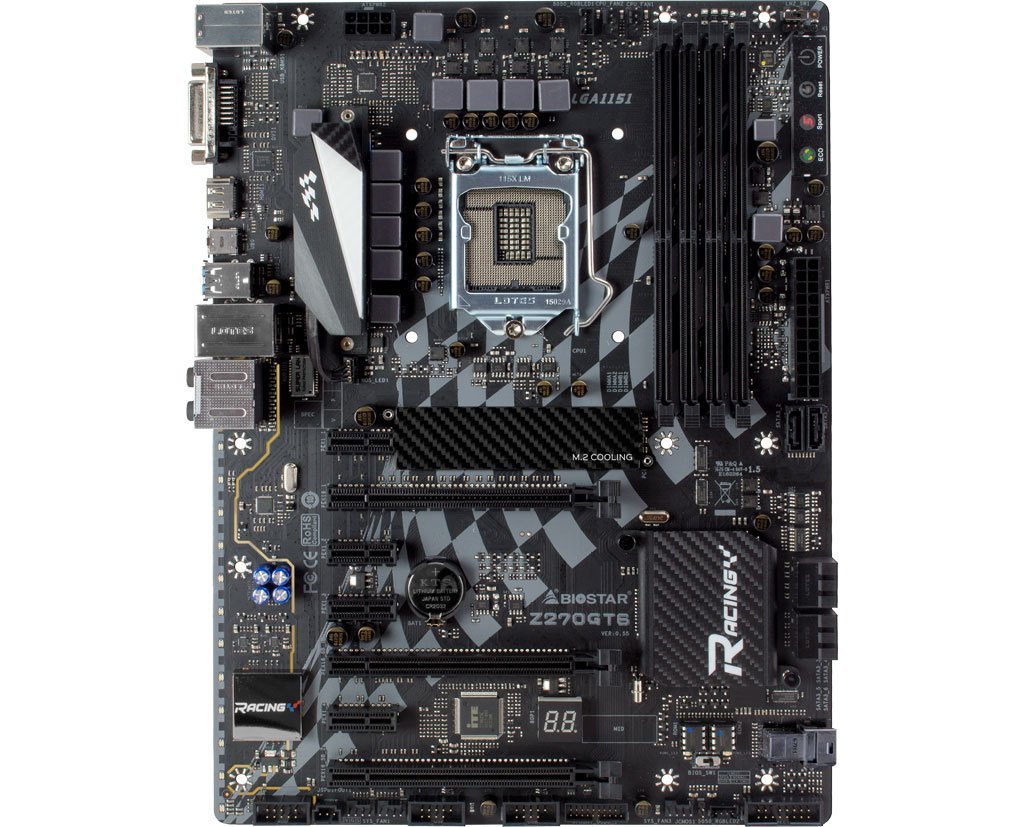

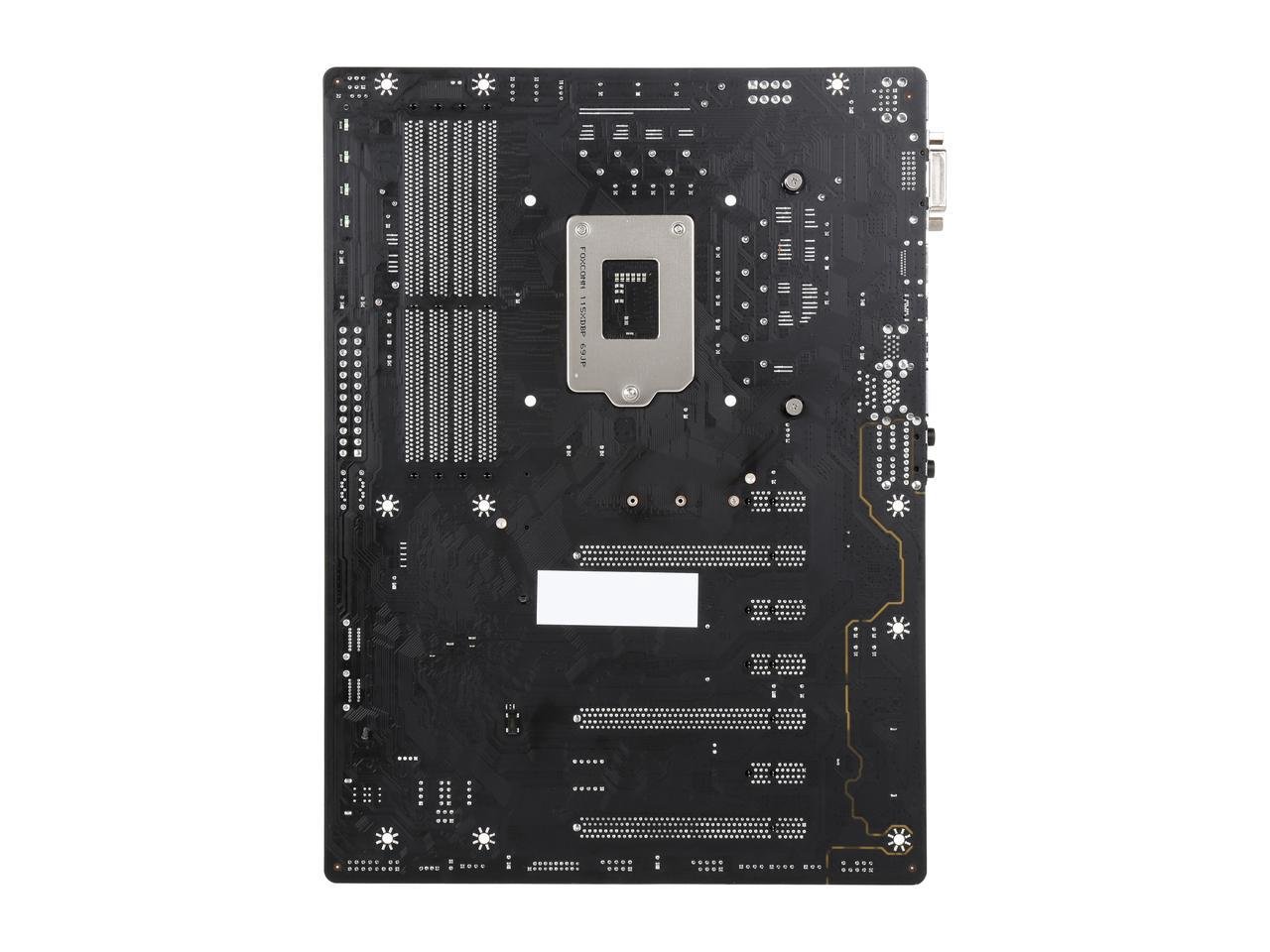

BIOSTAR Z270GT6 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.0 ATX Motherboard

BIOSTAR is proud to introduce the flagship of the new RACING series: RACING Z270GT6 motherboard. Flaunting the new Super 5 Design Concept, the BIOSTAR RACING Z270GT6 features support the latest Intel 7th generation Core processors featuring the Intel Z270 chipset. H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OVERVOLTAGE: CPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V OS SUPPORT: Support Windows 10 (x64) for Intel 7th Generation Processor * Support Windows 7 / 8.1 (x64) / 10 (x64) for Intel 6th Generation Processor BUNDLE SOFTWARE: Racing GT Utility BullGuard Intel Rapid Storage Technology FEATURES: VIVID LED DJ 5050 LED FUN ZONE M.2 Cooling Protection Supports Double Hi-Fi GT TOUCH Supports 100% Solid capacitor Supports Rapid Debug3 Supports Charger Booster Supports BIOS Online Update

The Biostar Z270GT6 motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel Z270 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-1866 / 2133 / 2400 / 3200. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / White design.

• Brand: BIOSTAR
• Model: Z270GT6
• CPU Socket Type: LGA 1151
• CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• Chipset: Intel Z270
• Number of Memory Slots: 4×288pin
• Memory Standard: DDR4 3200(OC)/ 2400/ 2133/ 1866
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: 1 x PCI-E x16 3.0 Slot (x16); 2 x PCI-E x16 3.0 Slot (x4) (Intel Optane Technology ready)
• PCI Express x1: 4 x PCI-E x1 3.0 Slot
• SATA 6Gb/s: 6 x SATA 6Gb/s
• M.2: 1 x U.2 32Gb/s Connector, support PCI-E Storage (share w/ SATA3_4U,4L) (Intel Optane Technology ready); 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s (share w/ SATA3_1) & PCI-E Storage (share w/ PEX16_SB_1) (Intel Optane Technology ready)
• SATA RAID: 0/1/5/10
• Audio Chipset: Realtek ALC892
• Audio Channels: 8 Channels
• LAN Chipset: Intel I219-V
• Max LAN Speed: 10/100/1000Mbps
• PS/2: 1
• Video Ports: 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
• HDMI: 1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4
• RJ45: 1 x RJ45
• USB 3.0: 1 x USB 3.0 Type-C Port; 4 x USB 3.0 Port
• USB 1.1/2.0: 2 x USB 2.0
• Audio Ports: 6 Ports
• Form Factor: ATX
• USB: 1 x USB 3.0 Header; 2 x USB 2.0 Header
• Other Connectors
• 1 x Front Audio Header
• 1 x Front Panel Header
• 1 x S/PDIF-Out Header
• 2 x CPU Fan Header
• 3 x System Fan Header
• 1 x LN2 Switch
• 2 x 5050 LED Header

• Intel Z270
• 7th & 6th Gen Intel Core i7 LGA 1151 Processor
• 7th & 6th Gen Intel Core i5 LGA 1151 Processor
• 7th & 6th Gen Intel Core i3 LGA 1151 Processor
• 7th & 6th Gen Intel Pentium LGA 1151 Processor
• 7th & 6th Gen Intel Celeron LGA 1151 Processor
• Maximum CPU TDP (Thermal Design Power): 95W
• DDR4 3200(OC)/ 2400/ 2133/ 1866

Manufacturer：BIOSTAR
MPN：Z270GT6
CPU Socket Type：LGA 1151
Processor Type：7th & 6th Gen Intel Core i7 LGA 1151 Processor
7th & 6th Gen Intel Core i5 LGA 1151 Processor
7th & 6th Gen Intel Core i3 LGA 1151 Processor
7th & 6th Gen Intel Pentium LGA 1151 Processor
7th & 6th Gen Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power): 95W
Supported CPU Technologies：* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel Z270
Onboard Video Chipset：By CPU model
Supports DX12
Supports HDCP
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3200(OC)/ 2400/ 2133/ 1866
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI-E x16 3.0 Slot (x16)
2 x PCI-E x16 3.0 Slot (x4) (Intel Optane Technology ready)
PCI Express x1：4 x PCI-E x1 3.0 Slot
SATA 6Gb/s：6 x SATA 6Gb/s
M.2：1 x U.2 32Gb/s Connector, support PCI-E Storage (share w/ SATA3_4U, 4L) (Intel Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/2260/2280 SATA 6Gb/s (share w/ SATA3_1) & PCI-E Storage (share w/ PEX16_SB_1) (Intel Optane Technology ready)
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC892
Audio Channels：8 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
Video Ports：1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
HDMI：1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4
RJ45：1 x RJ45
USB 3.0：1 x USB 3.0 Type-C Port
4 x USB 3.0 Port
USB 1.1/2.0：2 x USB 2.0
Audio Ports：6 Ports
Onboard USB：1 x USB 3.0 Header
2 x USB 2.0 Header
Other Connectors：1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Header
3 x System Fan Header
1 x LN2 Switch
2 x 5050 LED Header
Form Factor：ATX
LED Lighting：5050 LED FUN ZONE
Dimensions (W x L)：12.0" x 8.9"
Features：Supports 7th Generation Intel Core Processor, enables overclocking on Unlocked Intel Core Processors

Intel Z270 single chip architecture

Support 4-DIMM DDR4-3200(OC)/ 2400/ 2133/ 1866 up to 64G maximum capacity

BIOSTAR Hi-Fi Technology inside

Support USB 3.0 Type-C

Support M.2 (32Gb/s) (Intel Optane Technology Ready)

Support U.2 (32Gb/s) (Intel Optane Technology Ready)

Support HDMI 4K resolution

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring

OVERVOLTAGE:
CPU Vcore / VSA / VCC_IO / VGT / VCC_PLL_OC / DDR / DDR VPP / PCH 1.0V

OS SUPPORT:
Support Windows 10 (x64) for Intel 7th Generation Processor
* Support Windows 7 / 8.1 (x64) / 10 (x64) for Intel 6th Generation Processor

BUNDLE SOFTWARE:
Racing GT Utility
BullGuard
Intel Rapid Storage Technology
Package Includes：ACCESSORIES:
4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
1 x RGB LED Adapter Cable (Optional)
