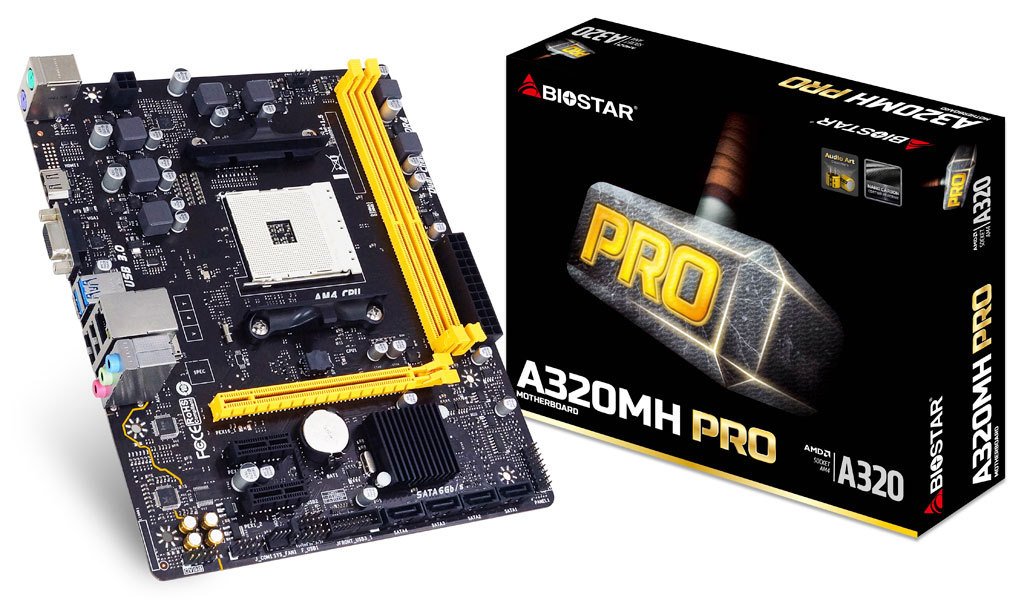

Biostar A320mh PRO AM4 Sata 6Gb/s USB 3.1 HDMI Micro ATX Motherboard
- Model: d3t2zq
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
The great thing about AM4 processors is the incredible amount of motherboards to choose from. This Biostar A320MH PRO is enough to get your gaming build started, supporting up to 32GB of DDR4-2667, PCIe 3.0 x16, and 2x USB 3.1 ports. The small size makes it compatible with most cases on the market for more customizability. The Biostar A320MH PRO motherboard supports AM4 processors and will fit in a standard Micro ATX case. This board is powered by the AMD A320 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-1866 / 2133 / 2400 / 2666. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / Yellow design.
- Support AMD Ryzen CPU / APU
- AMD A320 single chip architecture
Manufacturer：BIOSTAR
MPN：A320MH PRO
CPU Socket Type：AM4
Processor Type：AMD A-series APU/ Ryzen CPU/ NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power): 95W
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2667/2400/2133/1866 *
* DDR4 2667 for AMD Ryzen CPU
* Ryzen - DDR Maximum Frequency Support Table (For better DDR4 compatibility, it is recommended to follow the table below to install DDR4 modules. Please refer to memory support list for more details.)
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI-E x16 3.0 Slot (x16 for Ryzen CPU only, NPU/APU run at x8 speed)
PCI Express x1：2 x PCI-E x1 3.0 Slot
SATA 6Gb/s：4 x SATA 6Gb/s
SATA RAID：0/1/10
Onboard Video Chipset：By CPU model
Supports DX12
Supports HDCP
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 Mouse
1 x PS/2 Keyboard
Video Ports：1 x VGA Port, resolution up to 1920 x 1200 @60Hz
HDMI：1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1 Gen1 Port
USB 1.1/2.0：2 x USB 2.0 Port
Audio Ports：3 Ports
Onboard USB：1 x USB 3.1 Gen1 Header
2 x USB 2.0 Headers
Other Connectors：1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
Form Factor：Micro ATX
Dimensions (W x L)：8.90" x 7.24"
Features：H/W MONITORING:
CPU/ System Temperature Monitoring
CPU/ System Fan Monitoring
Smart/ Manual CPU Fan Control
System Voltage Monitoring
OS SUPPORT:
Support Windows 7 (x64)/ 10 (x64)
BUNDLE SOFTWARE:
BullGuard
Smart Speed LAN(Windows 7 only)
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update
