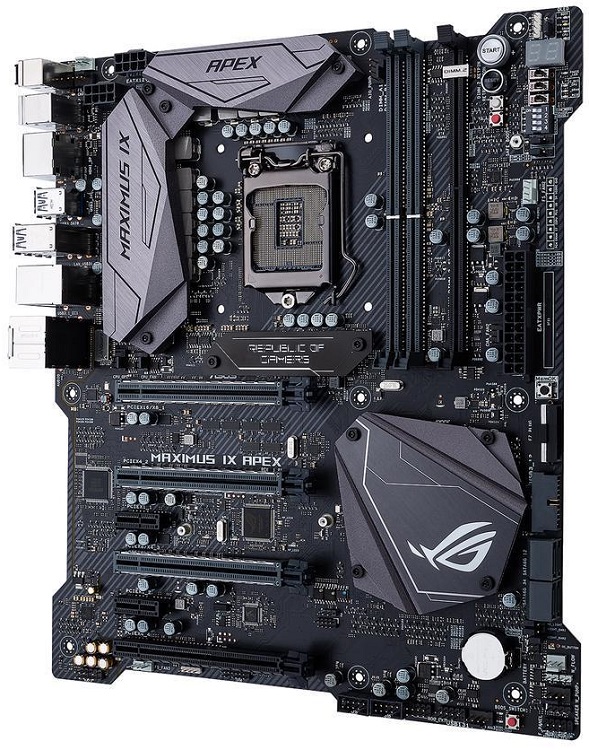

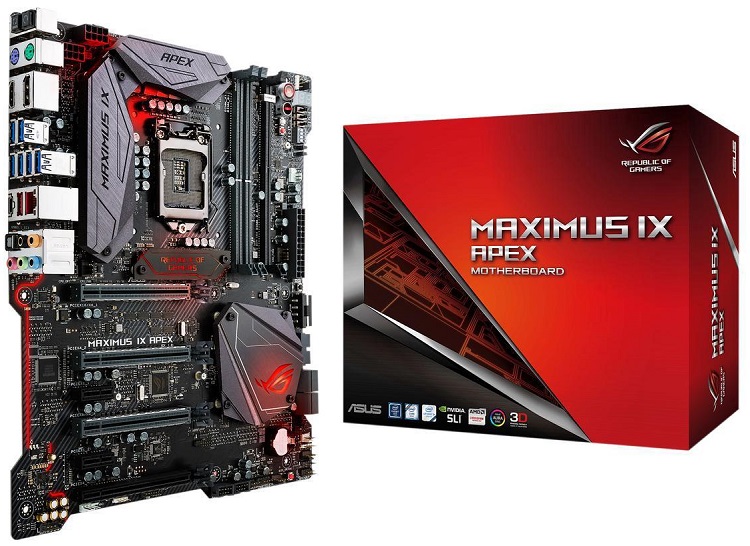

ASUS ROG MAXIMUS IX APEX LGA 1151 Intel Z270 HDMI SATA 6Gbs USB 3.1 Extended ATX Motherboards - Intel
- Model: a6c4m5
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Designed for extreme performance, the ROG Maximus IX APEX shatters world records with a full suite of onboard overclocking features, including dual BIOS chips and an LN2 mode switch. The innovative DIMM.2 vertically mounts M.2 drives for direct cooling, while AURA Sync RGB lighting and 3D-printing mounts provide unlimited personalization
- Intel Z270
- *Incompatible with Intel 8th Gen CPUs
- Supports DDR4 memory
Brand：ASUS
Series：ROG
Model：MAXIMUS IX APEXCPU Socket Type：LGA 1151
CPU Type：Intel for 7th/6th Generation Core i7/i5/i3/ Pentium/Celeron Processors
* Not Compatible with Intel 8th Gen CPUs
Supported CPU Technologies：Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.Chipset：Intel Z270Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI max. up to: 4096 x 2304 @ 60 Hz
- Supports DisplayPort max. up to: 4096 x 2160 @ 24 Hz
Maximum shared memory of 1024MB
Number of Memory Slots：2×288pin
Memory Standard：DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3500(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported：32GB
PCI Express 3.0 x16：1 PCIe 3.0/2.0 x16
PCI Express x8：1 PCIe 3.0/2.0 x8
PCI Express x4：2 PCIe 3.0 x4
PCI Express x1：2 PCIe 3.0/2.0 x1
SATA 6Gb/s：4 x SATA 6Gb/s
SATA RAID：0/1/5/10
Audio Chipset：ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels：8 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
HDMI：1 x HDMI
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：2 x USB 3.1 Gen 2 Type-A + USB Type-C
6 x USB 3.1 Gen 1
S/PDIF Out：1 x Optical
Audio Ports：5 x Gold-plated audio jacks
Onboard USB：1 x USB 3.1 Gen 1 connector support(s) additional 2 USB 3.1 Gen 1 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
Other Connectors：1 x AAFP connector
2 x RGB Header(s)
1 x CPU Fan connector
1 x CPU OPT Fan connector
3 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x Slow Mode switch
1 x EZ Plug connector (4-pin Molex power connector)
1 x Reset button
1 x LN2 Mode switch
1 x BIOS Switch button
1 x Clear CMOS button
1 x LN2 Mode jumper
1 x Safe Boot button
1 x ReTry button
1 x 14-1-pin TPM connector
1 x Slow Mode jumper
1 x W_Pump+ Header
1 x AIO PUMP Header
1 x 3D Mount screw port
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
2 x Thermal sensor connectors
1 x Start button
Form Factor：Extended ATX
LED Lighting：RGB
Dimensions (W x L)：12.0" x 10.7"
Power Pin：1 x 24-pin EATX Power connector
2 x 8-pin ATX 12V Power connector(s)
Features：Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
MemOK! Button
Slow Mode
CMOS button
Overwolf
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+:
- MicroFine Alloy Chokes
- NexFET Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
UEFI BIOS features
Special Features:
5-Way Optimization by Dual Intelligent Processors 5
SafeDIMM slot
AURA:
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features:
- MemOK!
- AI Suite 3
- Anti-Surge
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-Connector
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
Performance Optimization:
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Operating System Support:
Windows 10 86x64
Windows 8.1 86x64
Windows 7 86x64
