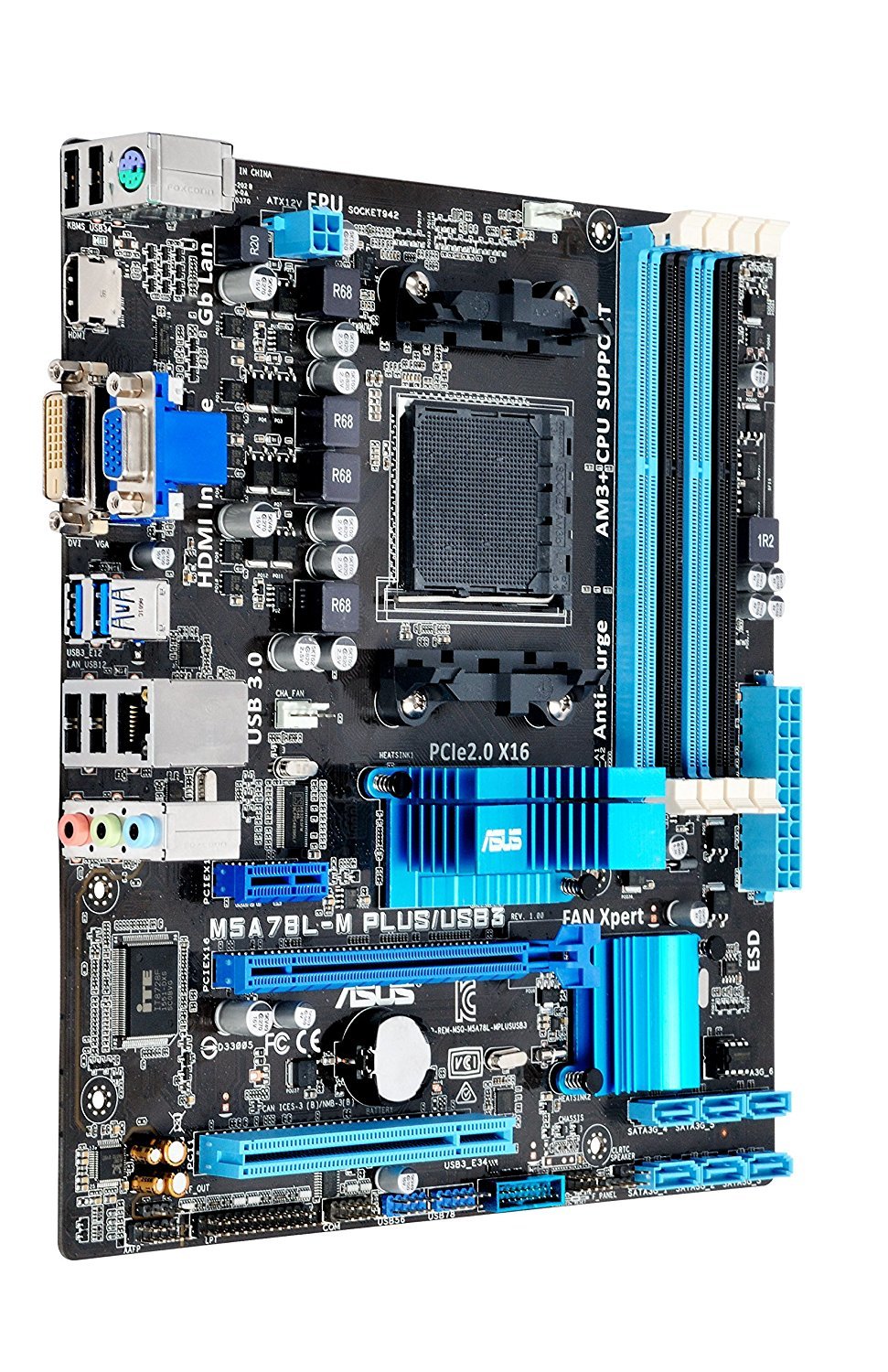

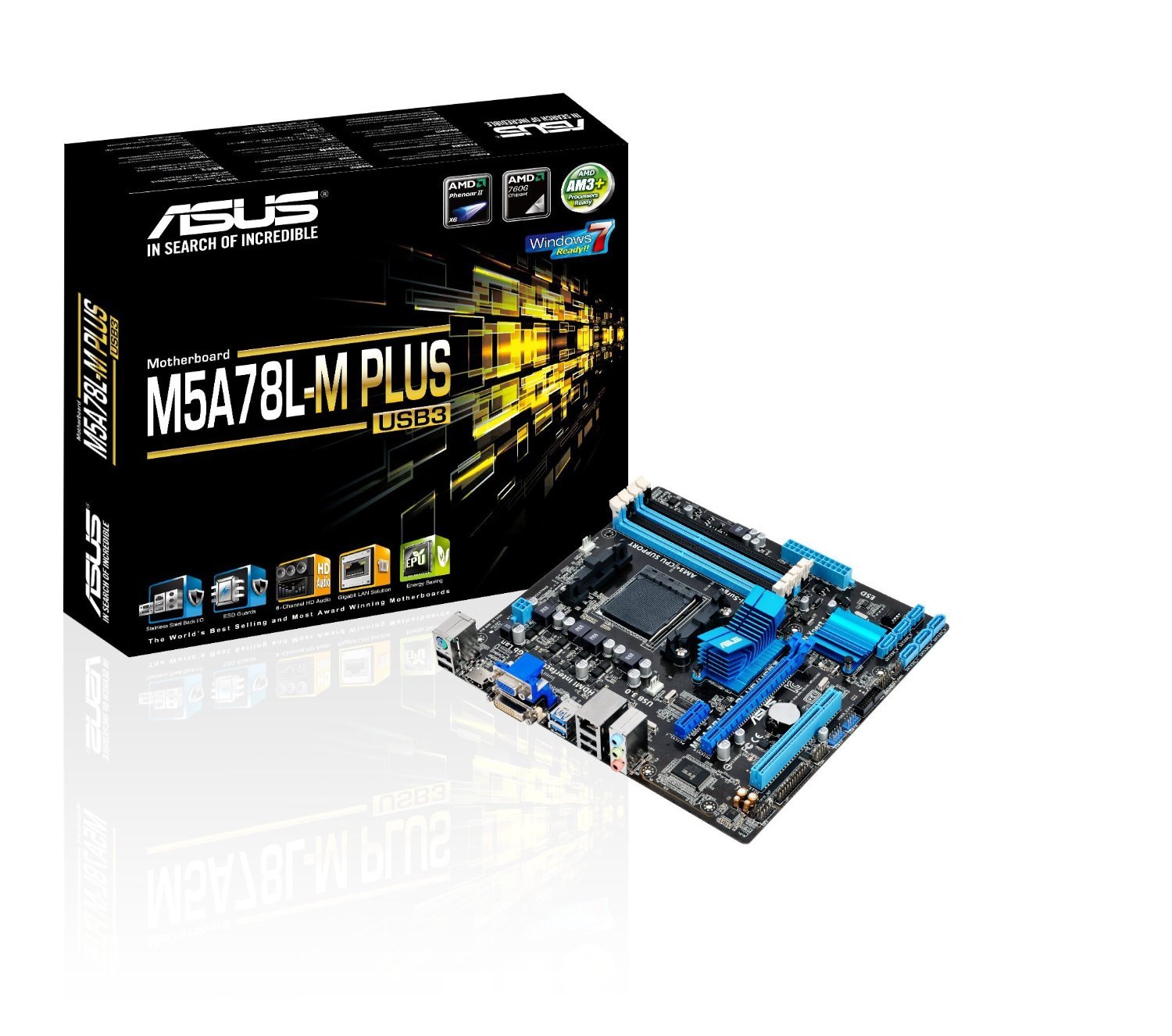

Asus M5A78L-M Plus/Usb3 Am3+ Ddr3 Hdmi 760G Microatx Motherboard

Built with a USB 3.0 controller, the M5A78L-M PLUS/USB3 AM3+ Micro-ATX Motherboard from ASUS is designed to fit in cases that support the micro-ATX form factor. This 9.0 x 9.6" motherboard supports AMD FX, Phenom II, Athlon II, and Sempron 100 Series processors, the AM3+ socket, and the AMD 760G (780L) / SB710 chipset.

The Asus M5A78L-M PLUS/USB3 motherboard supports AM3+ processors and will fit in a standard Micro ATX case. This board is powered by the AMD A78 chipset and has support for 4 x 240-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR3-1066 / 1333 / 1600 / 1800 / 1866 / 2000. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Black / Blue design.

• Brand: ASUS
• Model: M5A78L-M/USB3
• CPU Socket Type: AM3+
• CPU Type: FX / Phenom II / Athlon II / Sempron 100 Series
• Chipset: AMD 760G + SB710
• Number of Memory Slots: 4×240pin
• Memory Standard: DDR3 2000*(*O.C.)/ 1866*/ 1800*/ 1600*/ 1333/ 1066
• Maximum Memory Supported: 32GB
• Channel Supported: Dual Channel
• PCI Express x16: 1 x PCI Express x16
• PCI Express x1: 1 x PCI Express x1
• PCI Slots: 2 x PCI Slots
• SATA 3Gb/s: 6 x SATA 3Gb/s
• SATA RAID: 0/1/10/JBOD
• Audio Chipset: VIA VT1708S
• Audio Channels: 8 Channels
• LAN Chipset: Realtek, 1 x Gigabit LAN Controller
• Max LAN Speed: 10/100/1000Mbps
• PS/2: 1 x PS/2 keyboard/mouse port
• Video Ports: 1 x DVI, 1 x D-Sub
• HDMI: 1 x HDMI
• RJ45: 1 x LAN (RJ45) port
• USB 3.0: 2 x USB 3.0
• USB 1.1/2.0: 4 x USB 2.0
• S/PDIF Out: 1 x Optical
• Audio Ports: 6 Ports
• Form Factor: microATX
• Dimensions (W x L): 9.6" x 9.6"
• Power Pin: 24 Pin
• Onboard USB
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• Other Connectors
• 1 x COM port(s) connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x parallel port connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)

• AMD 760G (780L) / SB710
• FX / Phenom II / Athlon II / Sempron 100 Series
• DDR3 2000(O.C.)/ 1866(O.C.)/ 1800(O.C.)/ 1600(O.C.)/ 1333/ 1066

Manufacturer：ASUS
MPN：M5A78L-M PLUS/USB3
CPU Socket Type：AM3+
Processor Type：FX / Phenom II / Athlon II / Sempron 100 Series
Chipset：AMD 760G (780L) / SB710
Number of Memory Slots：4×240pin
Memory Standard：DDR3 2000(O.C.)/ 1866(O.C.)/ 1800(O.C.)/ 1600(O.C.)/ 1333/ 1066
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 2.0 x16：1 x PCI Express 2.0 x16
PCI Express x1：1 x PCIe 2.0 x 1
PCI Slots：1 x PCI Slot
SATA 3Gb/s：6 x SATA 3Gb/s
SATA RAID：0/1/10/JBOD
Onboard Video Chipset：Integrated ATI Radeon 3000
Maximum shared memory of 1G
Supports HDMI Technology with max. resolution up to 1920x1200 (1080P) (@60Hz)
Supports DVI-D with HDCP compliant with max. resolution 2560x1600 (@60HZ )
Supports RGB with max. resolution 2560 X 1440 @ 75 HZ
Hybrid CrossFireX Support
Audio Chipset：Realtek ALC887
LAN Chipset：Realtek 8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x D-Sub
1 x DVI
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.0：2 x USB 3.0
USB 1.1/2.0：4 x USB 2.0/1.1
Audio Ports：3 Ports
Onboard USB：2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
1 x USB 3.0/2.0 connector support additional 2 USB 3.0/2.0 ports (19-pin)
Other Connectors：1 x front panel audio connector
1 x Printer connector
1 x COM connector
1 x S/PDIF Out connector
1 x System Panel connector
1 x CPU Fan connector
1 x chassis Fan connector
1 x Clear CMOS header
24-pin EATX power connector
4-pin ATX 12V Power connector
1 x Speaker connector
Form Factor：Micro ATX
Dimensions (W x L)：9.61" x 9.02"
Power Pin：24 Pin
Features：ASUS Unique Features:
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS FAN Xpert
ASUS Anti-Surge
ASUS EPU
ASUS AI charger
Turbo Key

BIOS:
16MB Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a

Support DVD:
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Package Includes：Accessories:
2 x Serial ATA cables
I/O Shield
User's manual
1 x Support DVD
