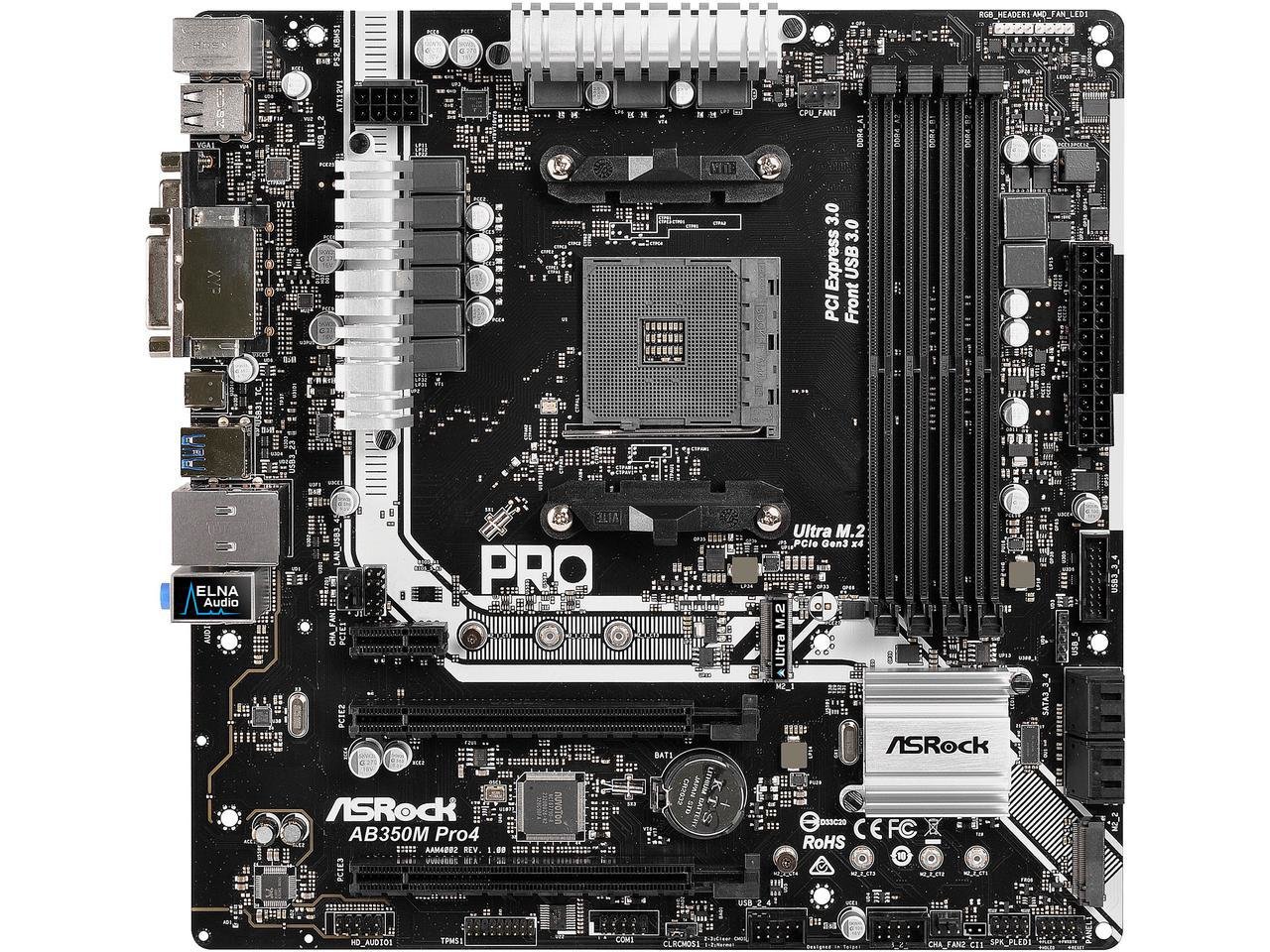

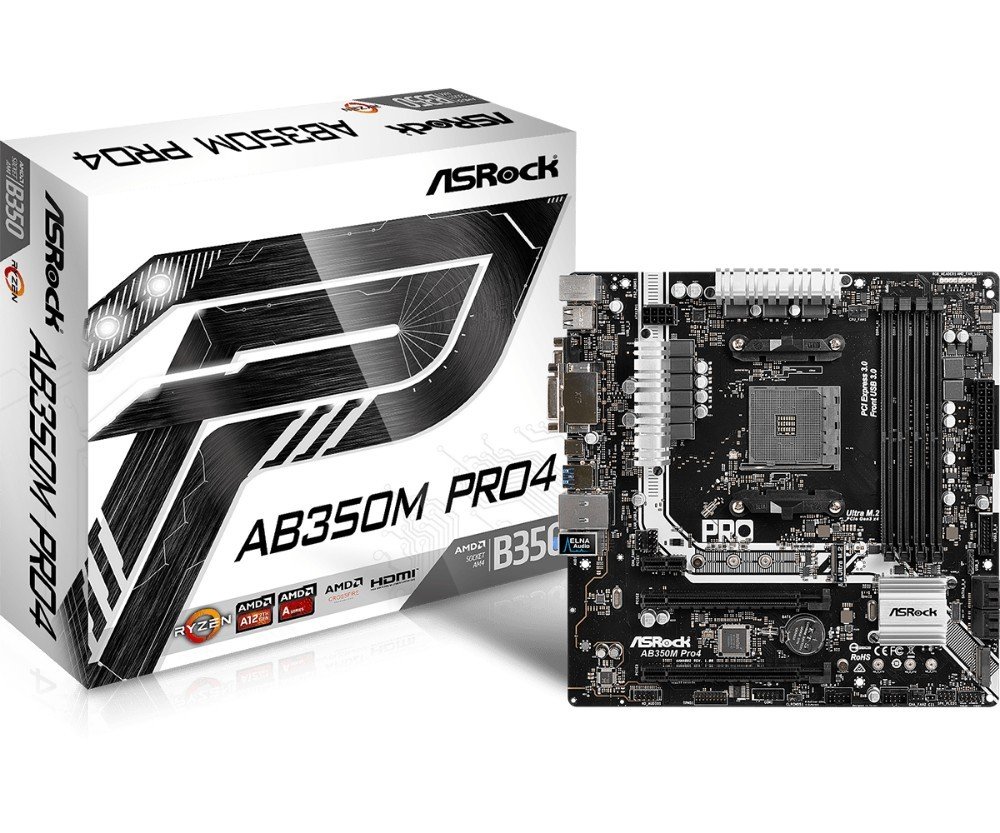

ASRock AB350M Pro4 AM4 AMD Promontory B350 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

ASRock AB350M PRO4 Socket AM4/AMD B350/DDR4/SATA3&USB3.0/M.2/A&GbE/MicroATX Motherboard, Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge).

Armor Your VR Machine - Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR Ready motherboards are definitely the one you're looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

Dual M.2 For SSD - One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD. And the other one supports SATA3 6Gb/s M.2 modules.

The ASRock AB350M Pro4 motherboard supports AM4 processors and will fit in a standard Micro ATX case. This board is powered by the AMD B350 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2933 / 3200. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / White design.

• DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
• AMD Quad CrossFireX?
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
• 7 USB 3.1 Gen1 (1 Type-C, 2 Front, 4 Rear)
• Realtek Gigabit LAN

• AMD Promontory B350
• Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
• Ryzen series CPUs support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133*
• 7th Gen A-Series APUs support DDR4 2400/ 2133*
• *Please refer to Memory Support List on ASRock's website for more information.

Manufacturer：ASRock
MPN：AB350M Pro4
CPU Socket Type：AM4
Processor Type：Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
Chipset：AMD Promontory B350
Number of Memory Slots：4×288pin
Memory Standard：Ryzen series CPUs support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133*
7th Gen A-Series APUs support DDR4 2400/ 2133*
*Please refer to Memory Support List on ASRock's website for more information.
Maximum Memory Supported：64GB**
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

*Supports NVMe SSD as boot disks
PCI Express 2.0 x16：AMD Ryzen series CPUs
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

AMD 7th A-Series APUs
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
PCI Express x1：1 x PCI Express 2.0 x1 Slot
SATA 6Gb/s：4 x SATA3 6.0Gb/s*
*M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.
M.2：1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16Gb/s) (with A-Series APU)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module**

**Supports NVMe SSD as boot disks
**Supports ASRock U.2 Kit
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Actual support may vary by CPU
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels*
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Chipset：Realtek 8111GR
Max LAN Speed：10/100/1000Mbps

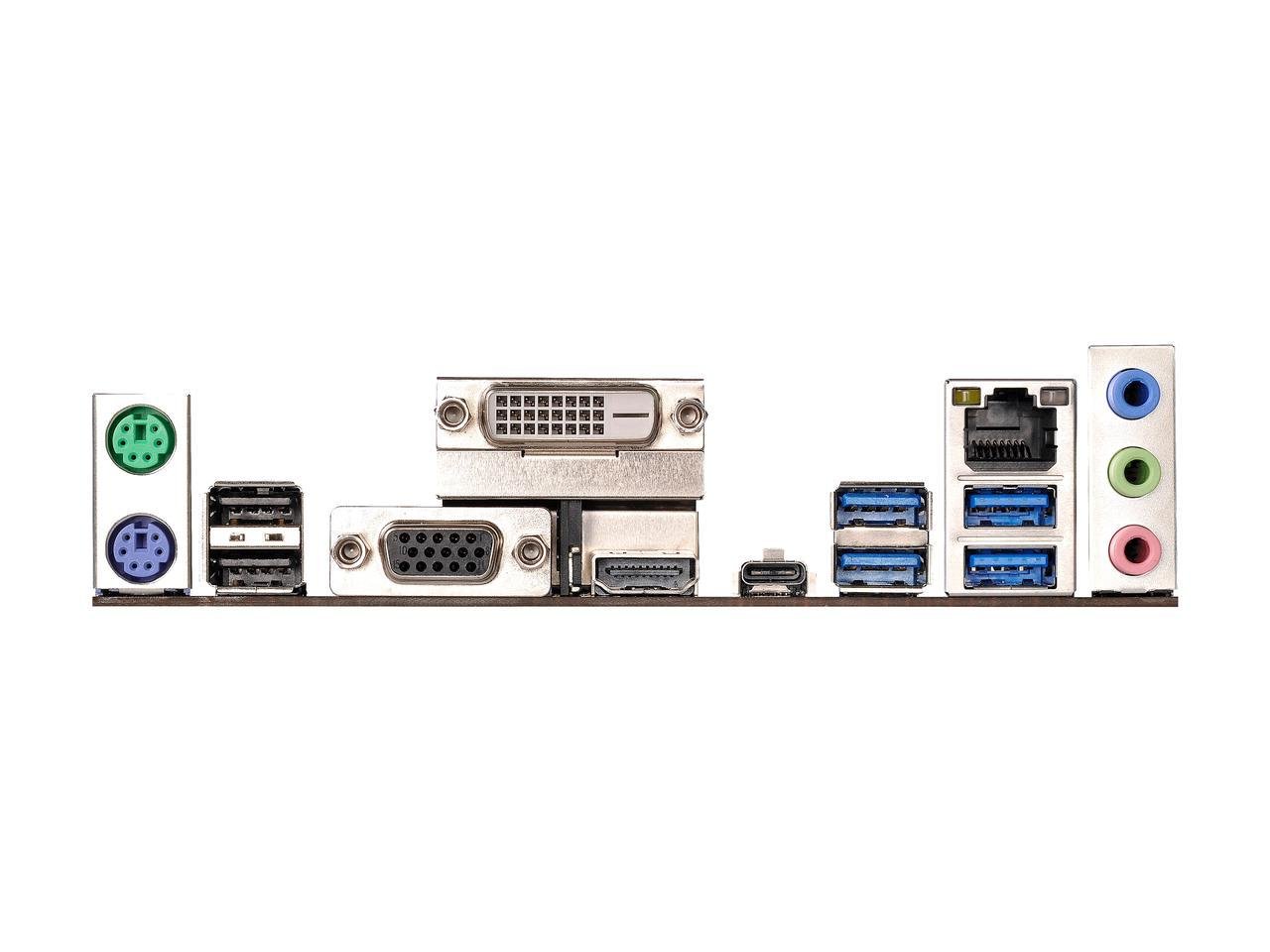

PS/2：1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
Video Ports：1 x D-Sub Port
1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0：2 x USB 2.0 Ports (Supports ESD Protection)
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors：1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
1 x AMD Fan LED Header*
1 x CPU Fan Connector (4-pin)**
2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin Smart Fan Speed Control)***
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header

*Supports in total up to 12V/3A, 36W LED Strip.
*The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
Form Factor：Micro ATX
Dimensions (W x L)：9.6" x 9.6"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
Features：Unique Feature:
ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

Software and UEFI:
Software
- ASRock A-Tuning
- ASRock RGB LED
- ASRock APP Charger
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor:
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Package Includes：Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
